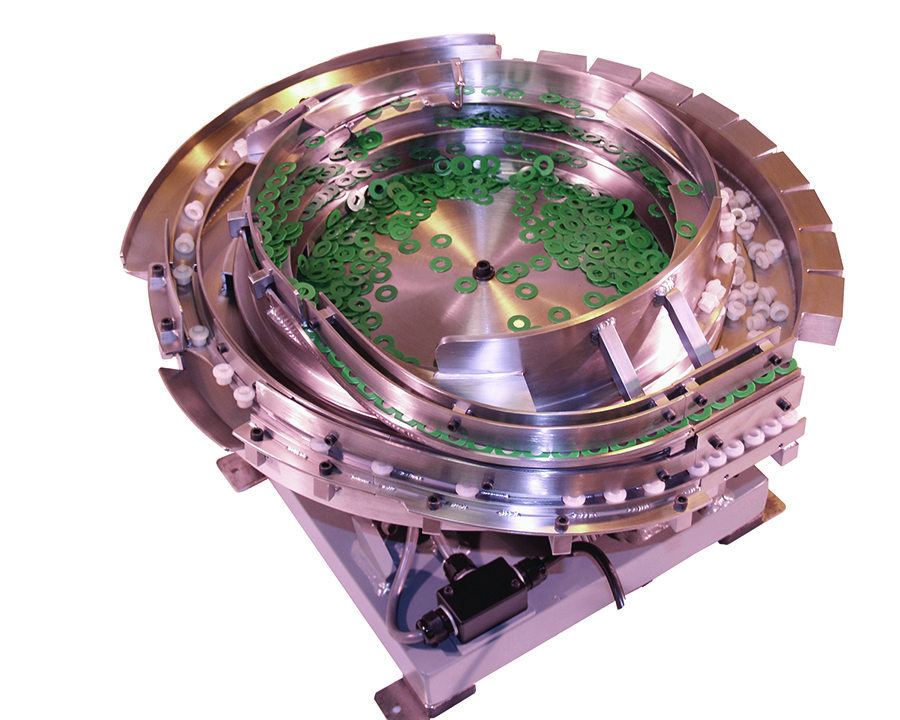

Jerhen Vibratory Feeder Bowls:

Jerhen offers the industry’s most complete line of standard and custom engineered vibratory feeder bowls.

  • Fan Rail Design
  • Standard & Long Parts
  • Stainless Steel Construction
  • Straight Wall Design
  • 4″- 48″ Diameter
  • Dual Coil Drive
  • Multi-Lane Discharges
  • Assembly Feeders
  • Knife Rail Design
  • Fine Adjustment Between Feeder Rails
  • For Precision Parts
  • Clockwise or Counterclockwise Rotation
  • Simplicity in Setup
  • Solid State Control
  • Custom Tooled

Contact Us Visit Website

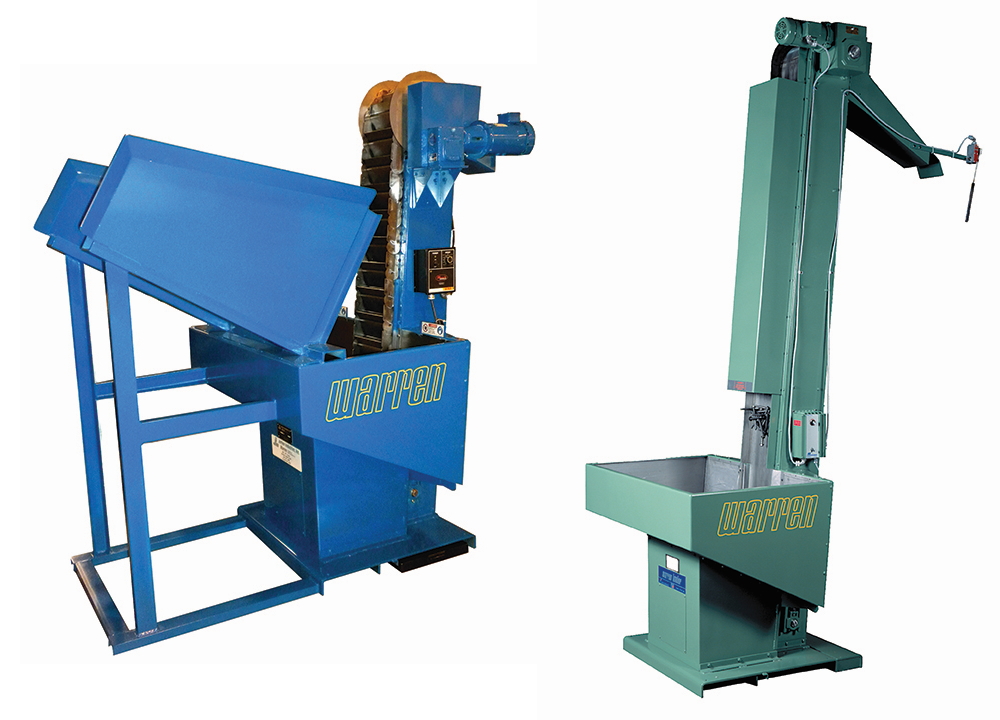

Warren Parts Loaders

All Warren parts loaders are built using the patented, closed frame steel conveyor system which is designed to eliminate the problems associated with parts jamming in the conveyor. This eliminates costly downtime and the potential for damage to the conveyor. This unique design allows us to use a straight up (5Q) mast design which results in a savings of valuable floor space.

  • Bucket width:
    • Single wide unit 10″
    • Double wide unit 20″
    • Hopper width/volume:
  • Single wide unit
    • (standard) 30″/6 Cu. Ft.
    • (optional) 18-1/4″/3 Cu. Ft.
    • (optional) 48″/12 Cu. Ft.
  • Double wide unit
    • (standard)
    • 48″/12 Cu. Ft.
  • Load Height (standard):
    • 3 Cu. Ft. Hopper 25″
    • 6 Cu. Ft. Hopper 35″
    • 12 Cu. Ft. Hopper 35″/40″
  • Electrical: Single phase
    • 110/120 v., 50 or 60 H

Contact Us Visit Website

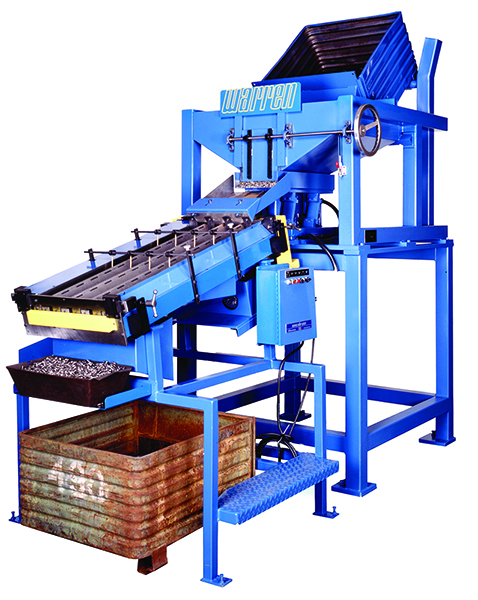

Warren High-Speed Roller Sorters

  • Offered in a number of configurations and sorting lanes, from one to four.
  • One pass highspeed sorting by largest diameter of a selected part from mixed parts and foreign debris.
  • Selected parts are separated from those too large and too small and each are discharged in separate areas.
  • Setup and part changeover is – accomplished by a simple adjustment. On multilane units, rollers are adjusted together for accurate
  • duplicate spacing.
  • Variable speed drives are offered to assure proper roller speeds to suit each part requirement, assuring maximum throughput.
  • A complete selection of part loaders, feed hoppers and tub dumpers are available with all sorters.
  • Multiple discharge chute configurations allow the units to be incorporated into a wide range of manufacturing applications.
