ID # 11921

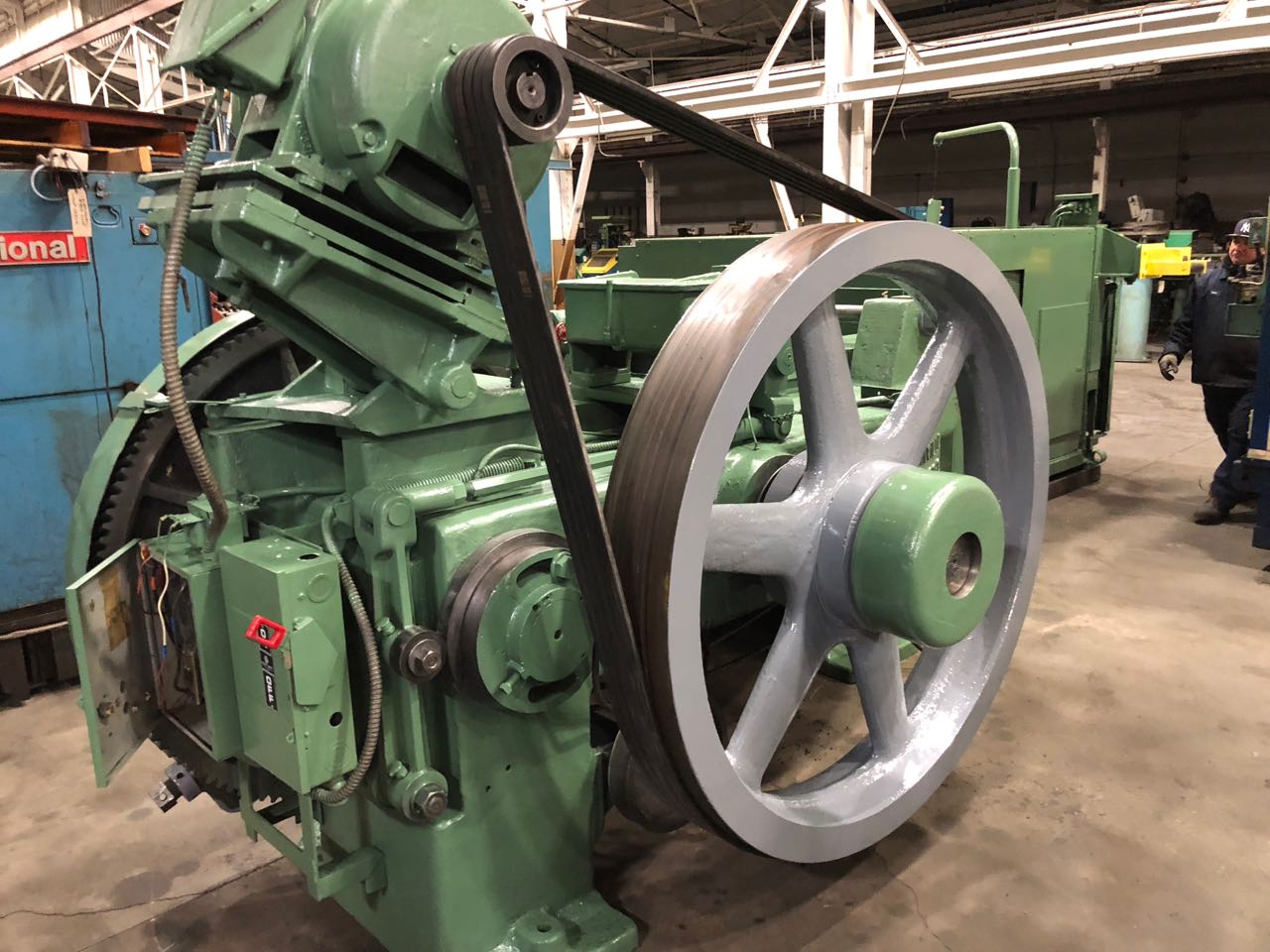

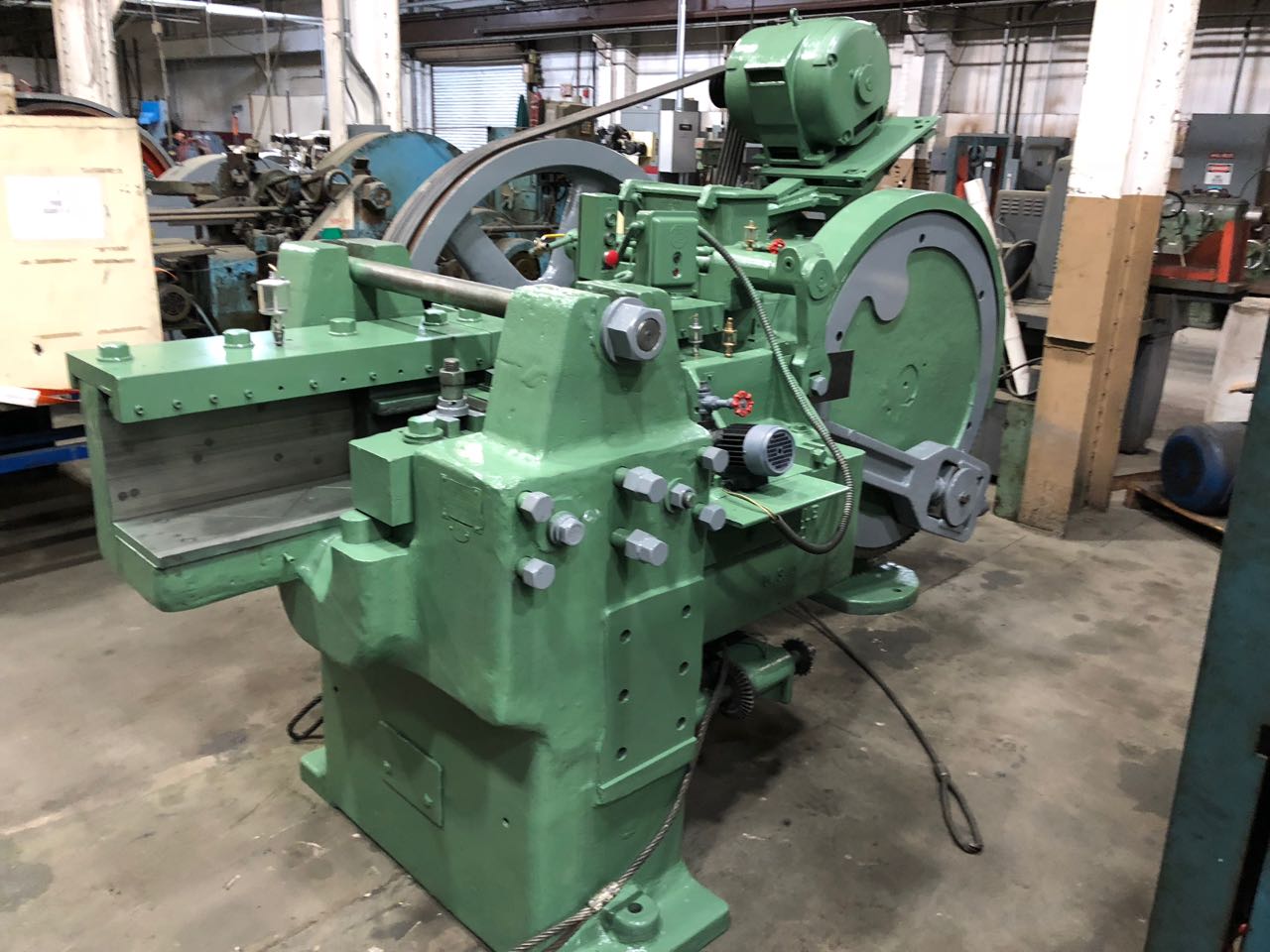

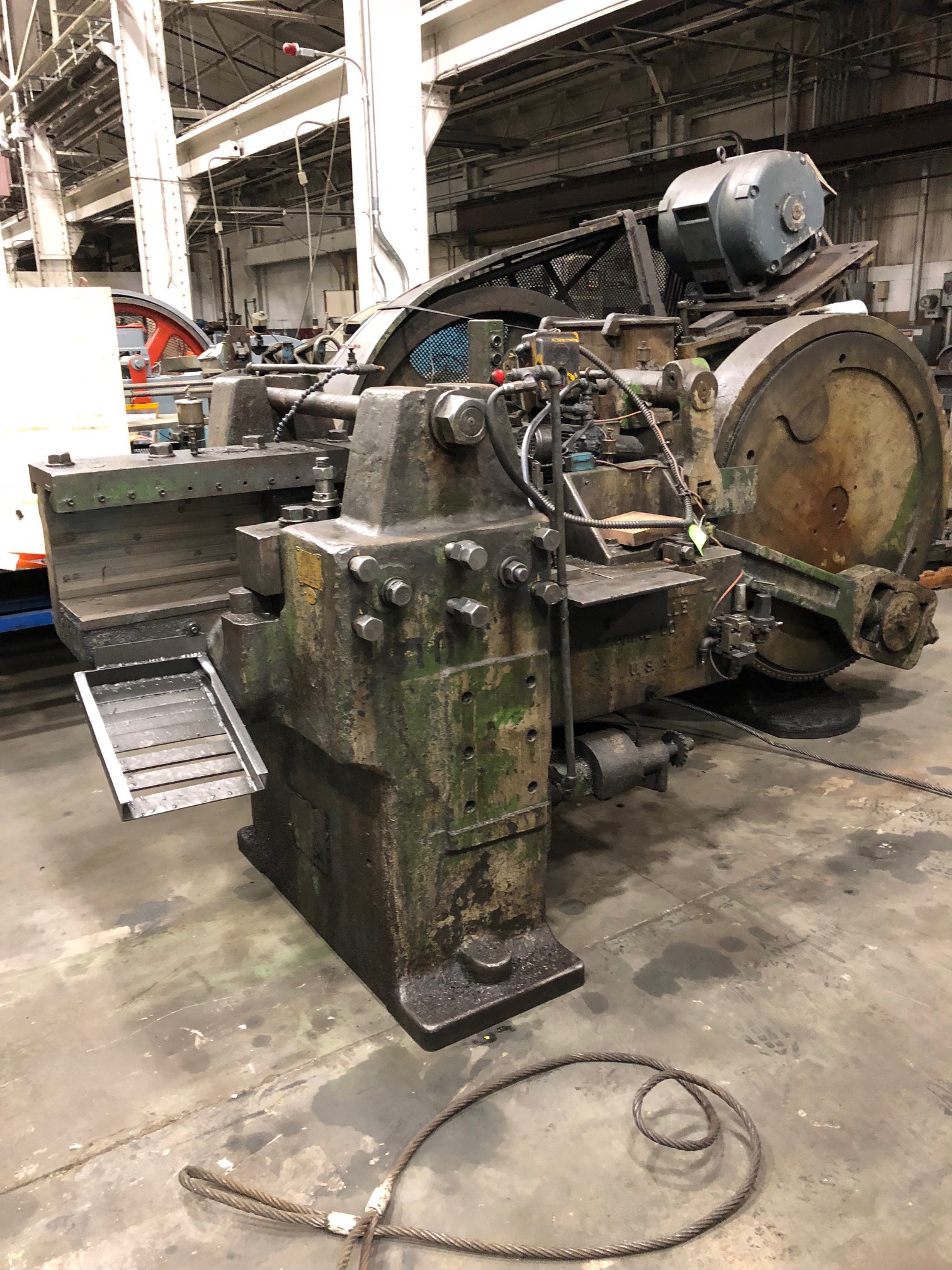

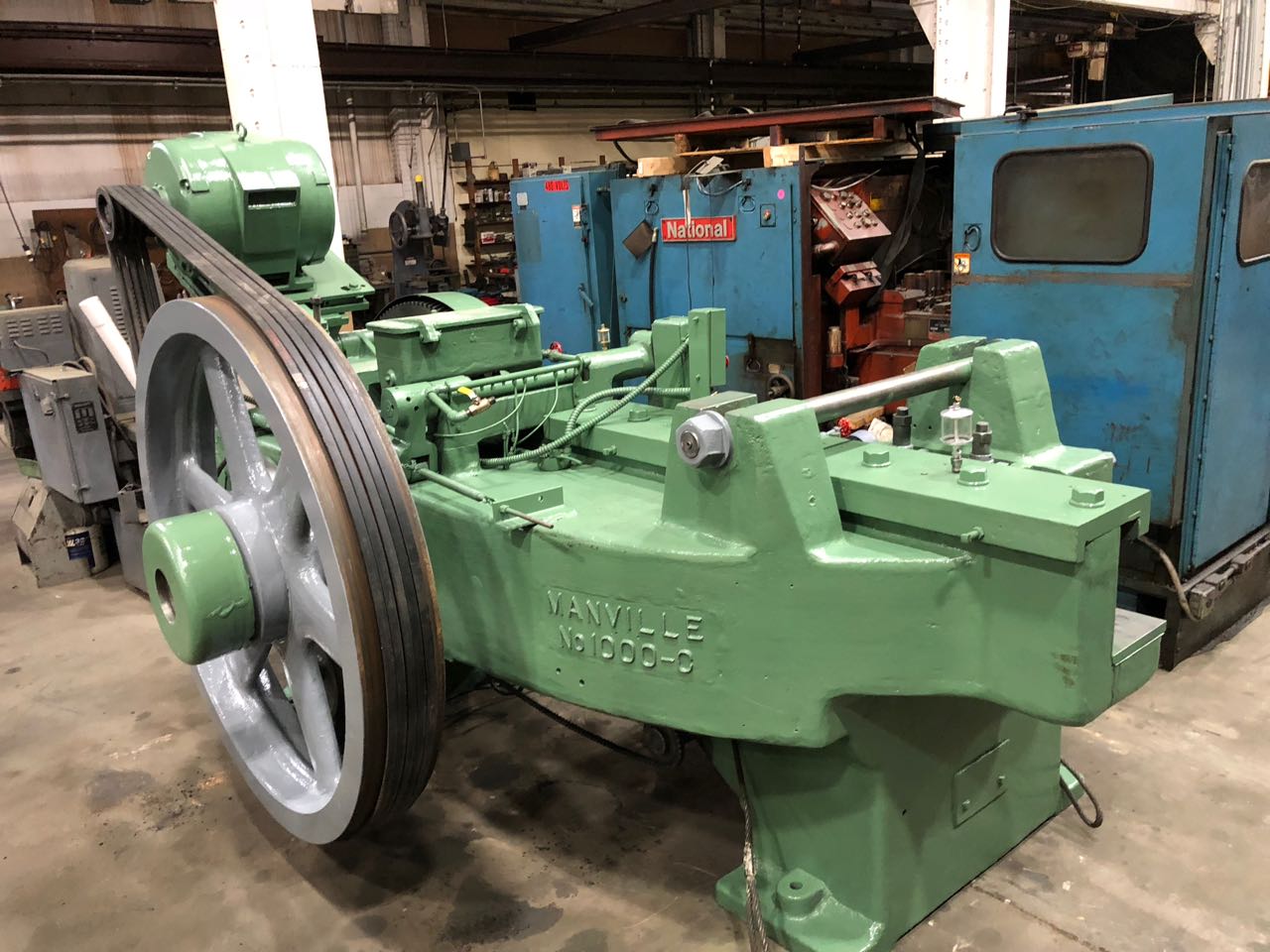

1-1/4" Manville Model 1000-C (#70 size) Hand Feed Flat Die Thread Roller

Brand
MANVILLE

Model
1000-C

Stock #
11921

Condition
Used

Year
Year Not Specified

Specifications

Equipped With

One Used 1-1/4" Manville Model 1000-C ( #70 size) Hand Feed Flat Die Thread Roller, Serial No 20046

Built by National Machinery in Tiffin Ohio

1-1/4" Maximum Thread Diameter
6-1/8" Depth of Die Pockets
40 SPM ( approx.)
20" Length of Moving Die
19" Length of Stationary Die
8-1/2" Distance between Top of Die Block and Bottom of Tie Rod
14-1/2" Maximum Length of Work Piece if End of Shank is at the Bottom of the Die Pocket
30 HP 890 RPM 230/460C 3 PH Motor

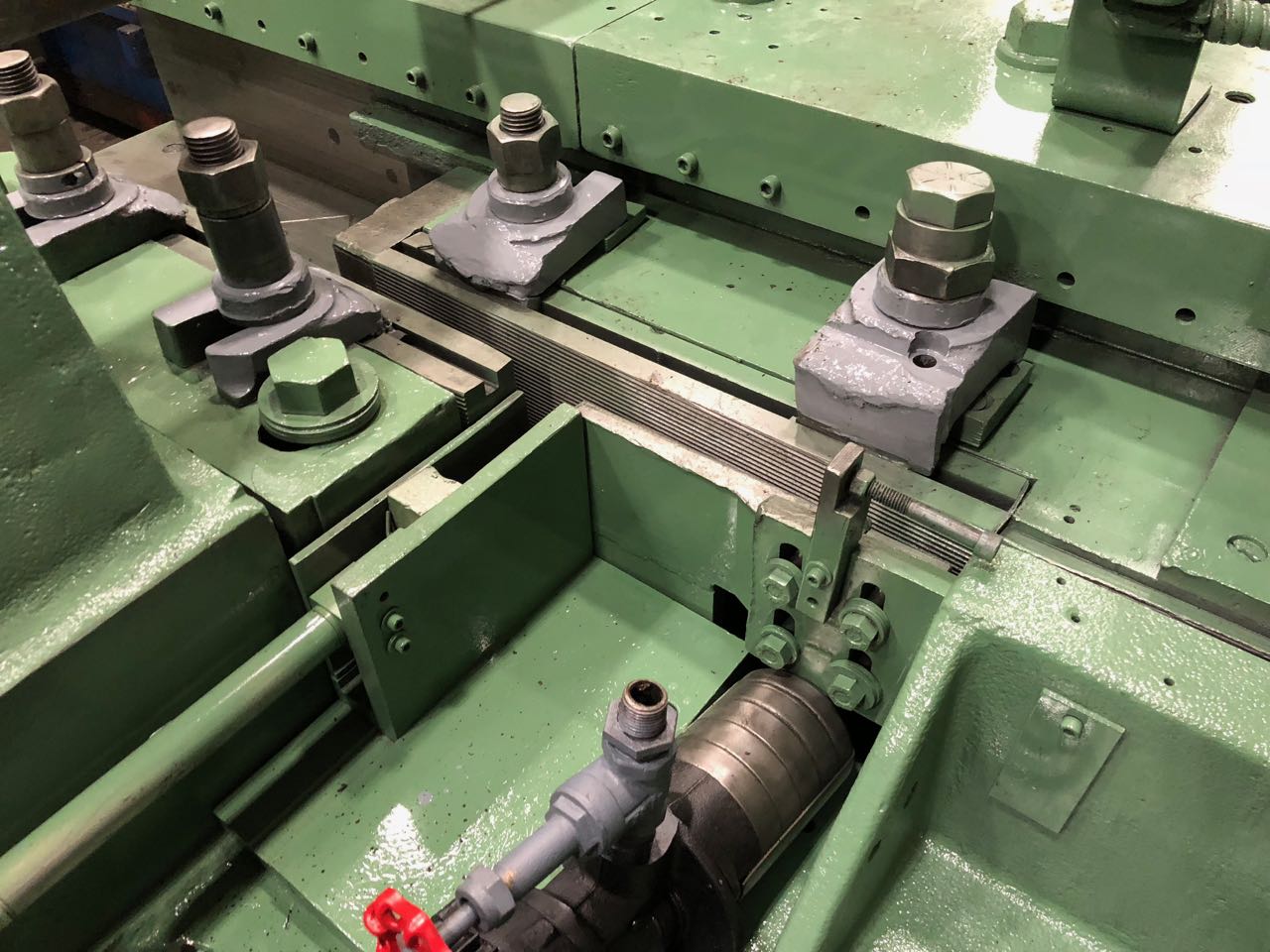

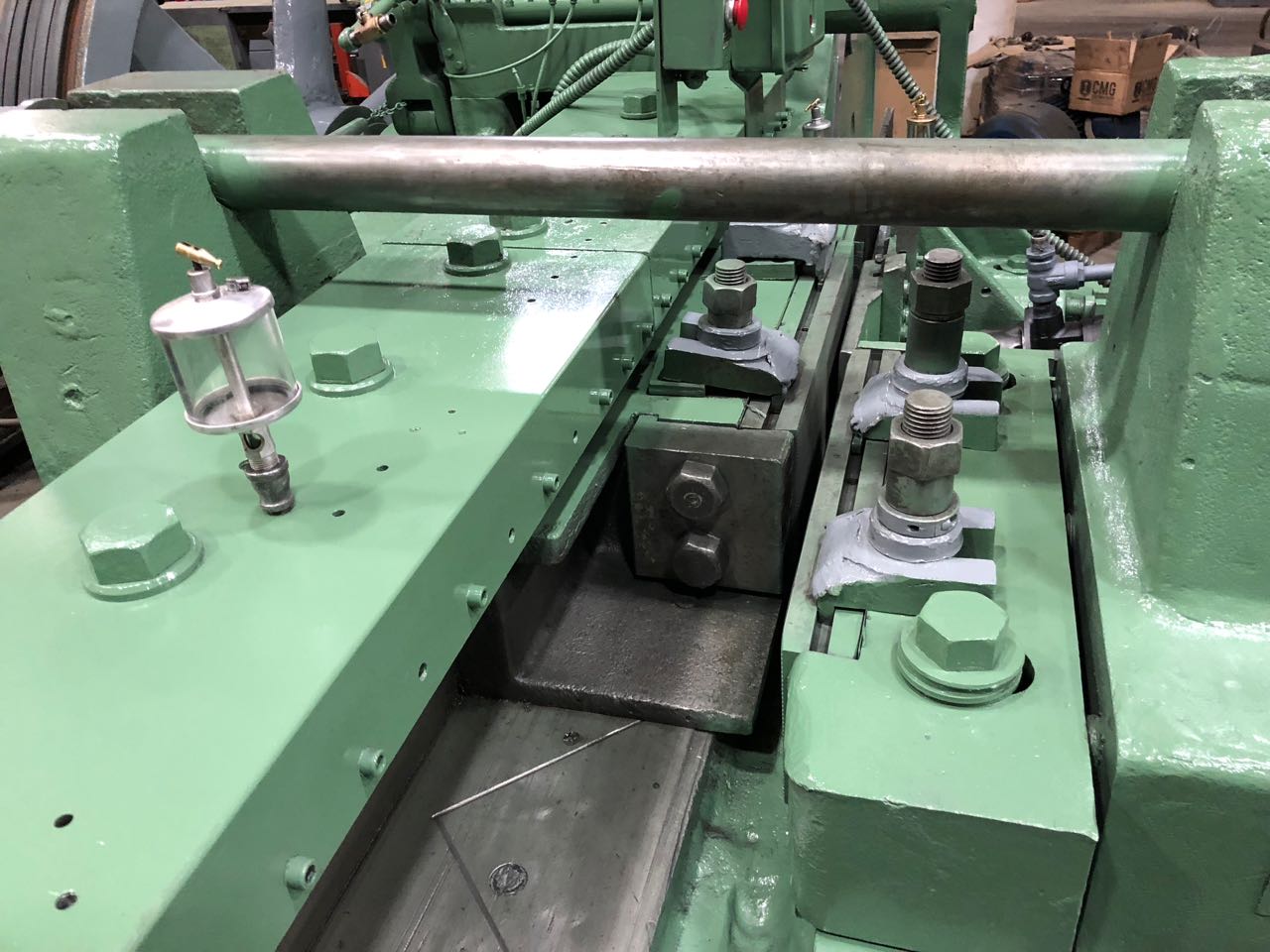

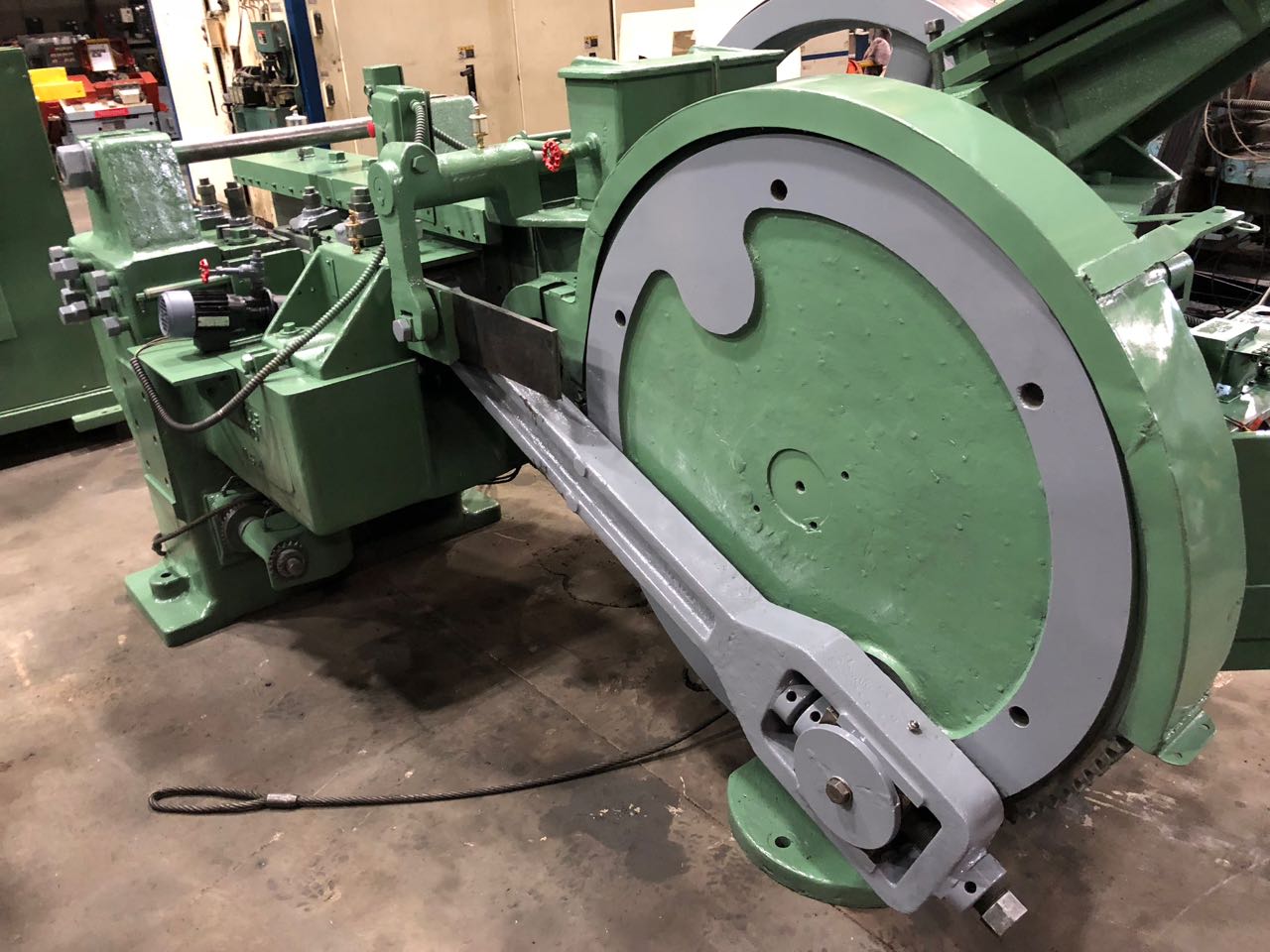

Equipped with: Adjustable Pitman, Gravity Lubrication, 6 Pusher Bolts and 2 Pull Back Bolts on Die Block
Recirculating Coolant (requires reservoir)

Weight Approx. 24,000 Lbs.

Located FOB Bridgeport, CT Warehouse
