ID # 12236

Nedschroef Model MW53 Hot Forming Line


Stock #




Equipped With

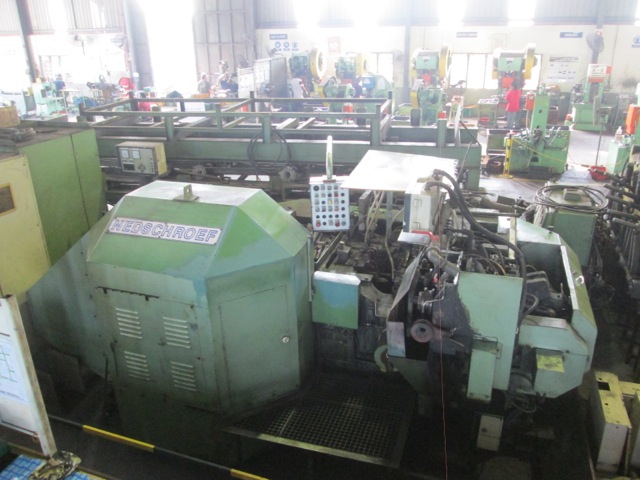

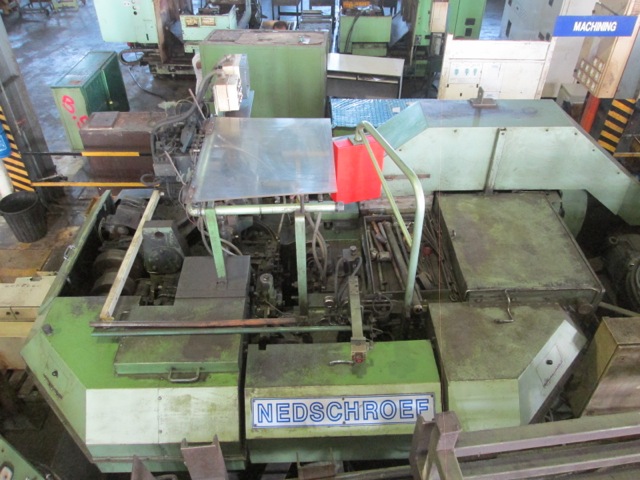

One Used Nedschroef Model MW53 Hot Forming Production Line, Built new in 1995

Range: M20-M33
Maximum Across Flats Hex Nuts:53mm
Maximum Across Flats Square Nuts:41mm
Maximum Diameter Products:55mm
Maximum Product Height:45mm
Minimum Product Height:13mm
Strokes per Minute: 150
Maximum Bar Diameter New Material:44mm
Maximum Cutoff Length:65mm
Minimum Cutoff Length:14mm
Diameter Feed Rollers: 180mm
Slide Travel:180mm
Forging Pressure in Tons:130
Motor Output in Kw:65
Weight in Tons:22
Floorspace in Cm (without heating): 480 x 280
Cooling Water Consumption liter/min.:150

1. MW53 capable to produce hexagon nuts from M20 up to M36 as well as flange nuts.

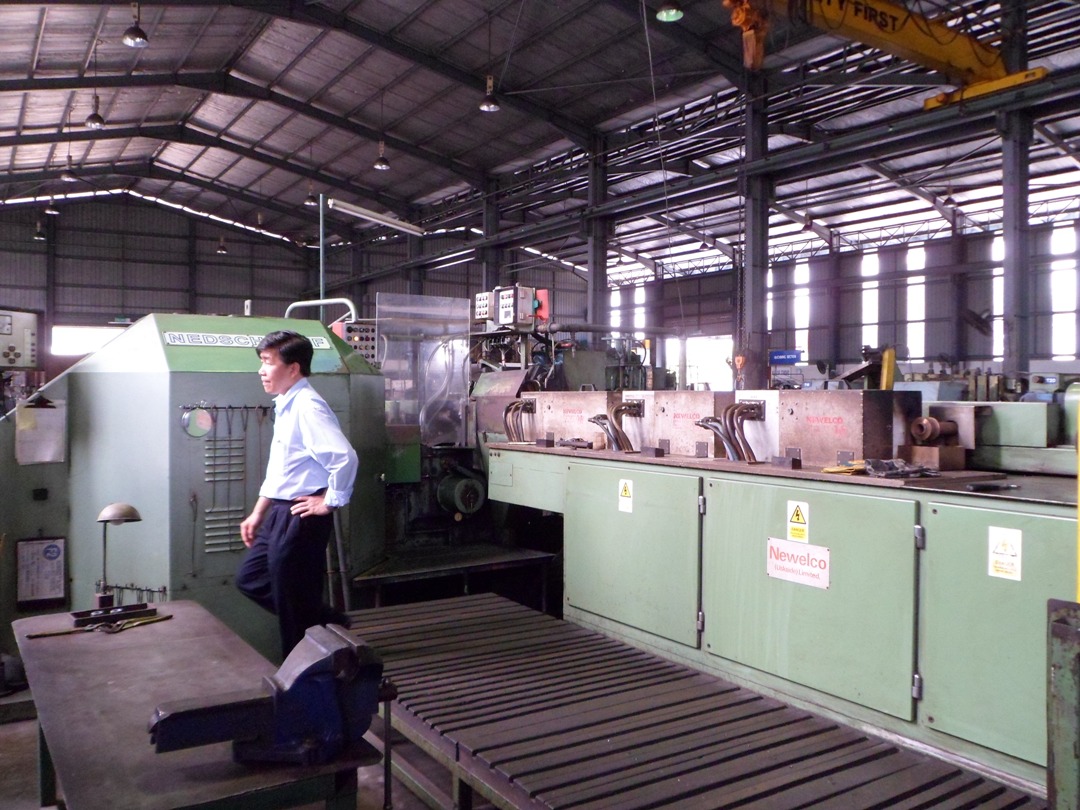

2. Newelco SFR 29 1.275 Kw Induction heater with 3 Coil sections ( sufficient to heat bar for production of M36 nuts at 100 pcs./min)
3. Bar Rack for 6 meter long bars complete with automatic bar feeding system
4. Conveyor System for products and for scrap
5. Various sets of tooling for hexagon nuts ( to be specified)
6. Various spare parts for MW53 and induction heater
Line has been disassembled and removed from production and put into storage in 2016

Delivered FOB Kuala Lumpur Port
