ID # 12892

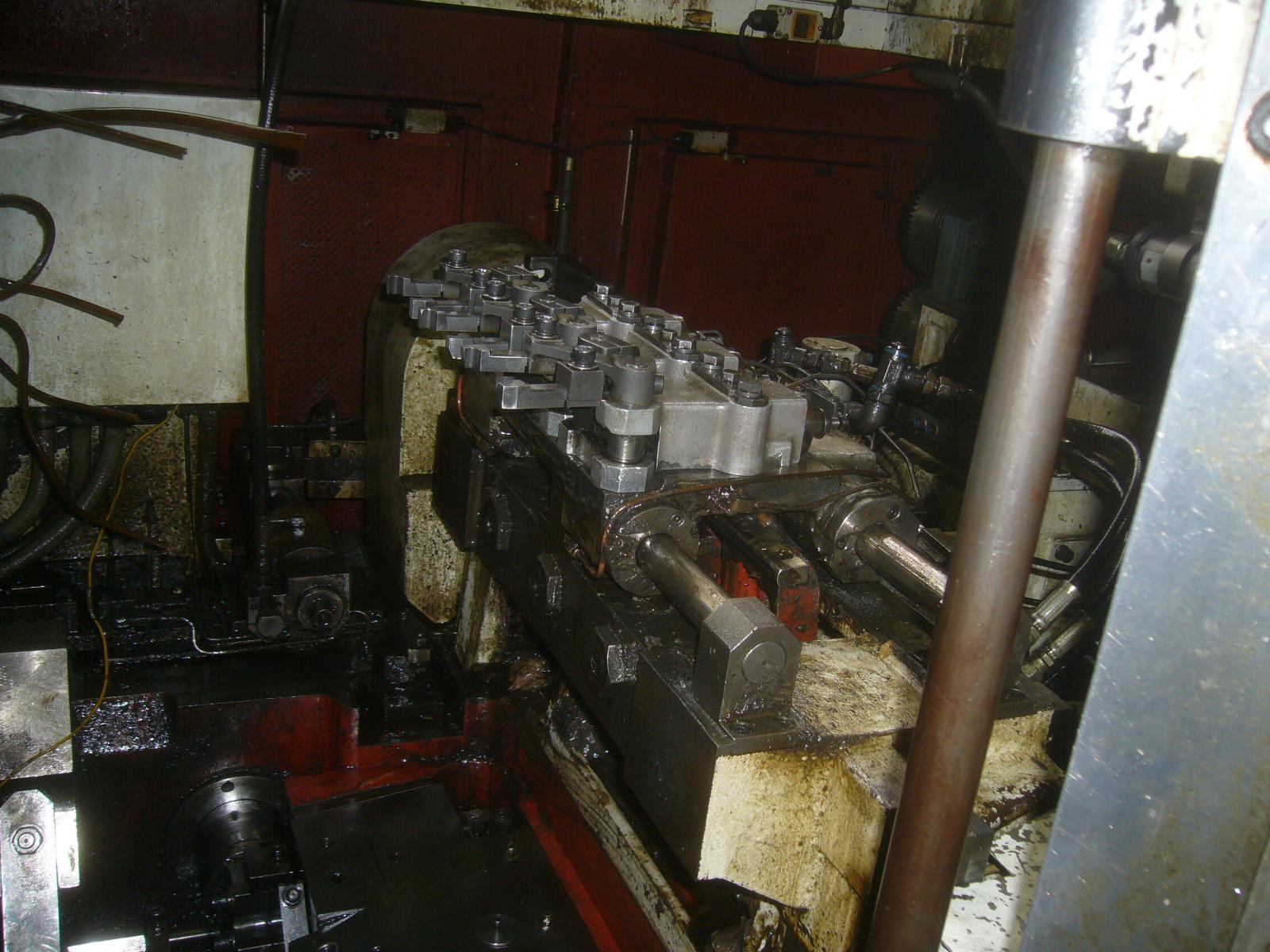

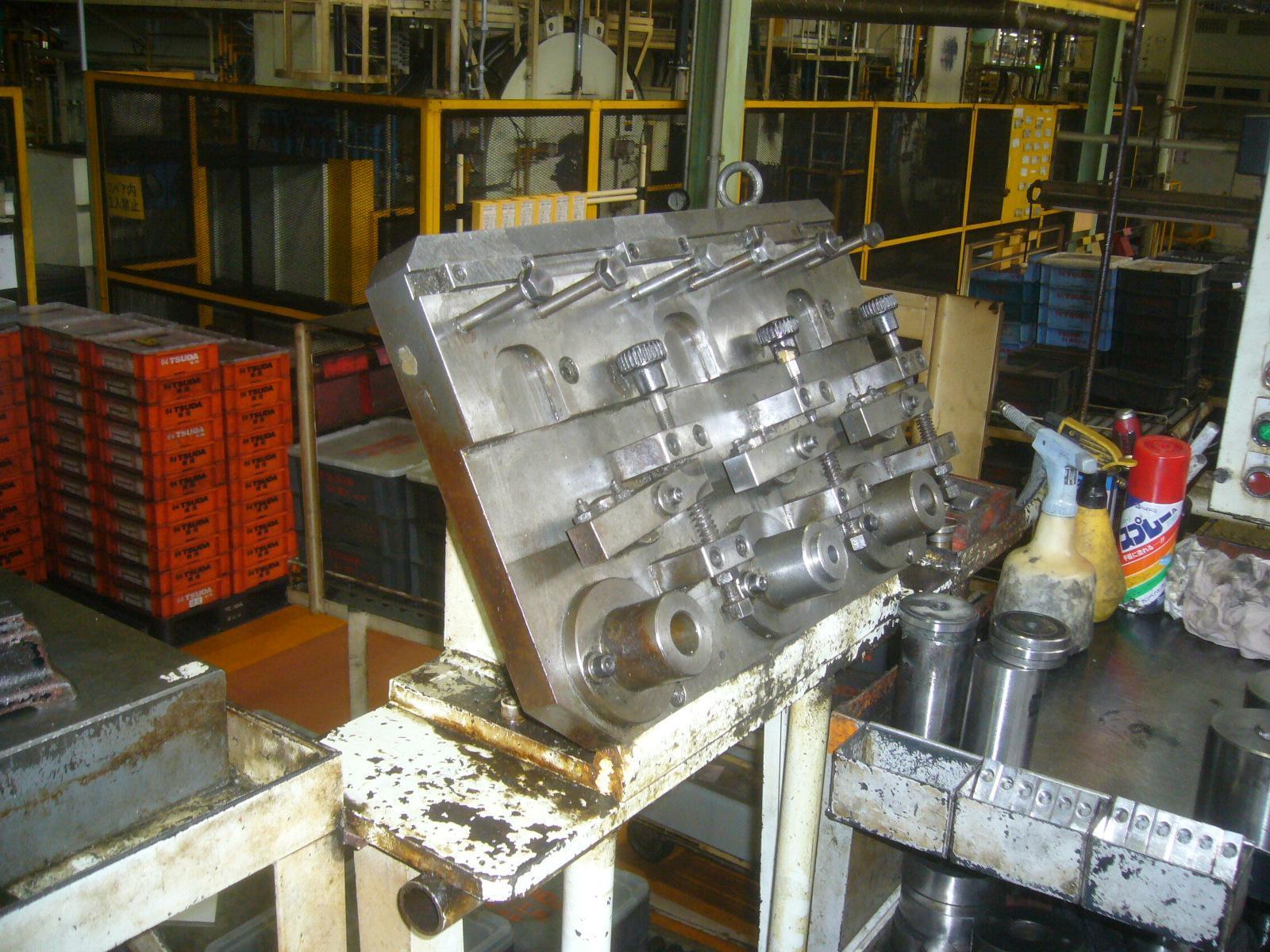

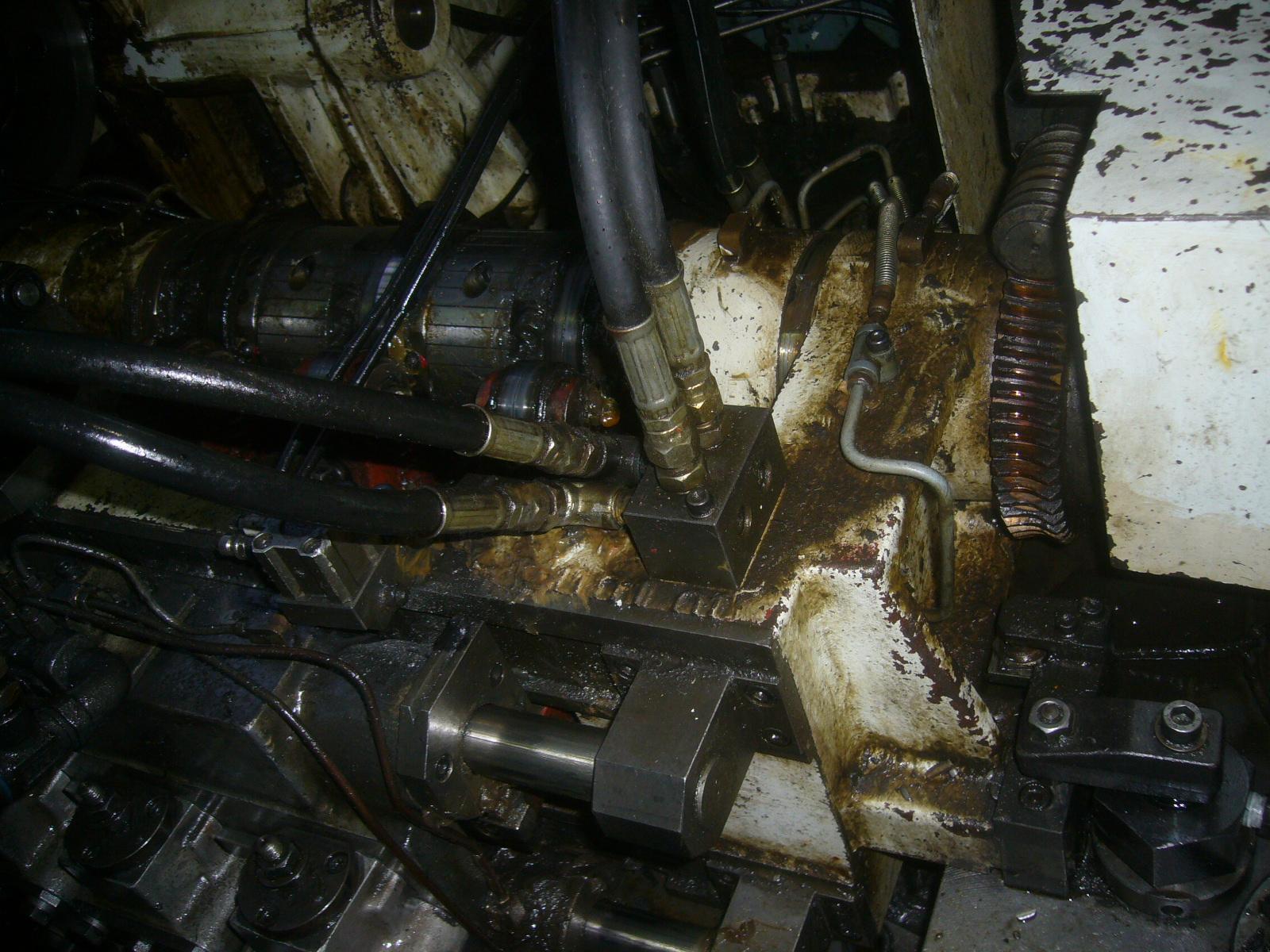

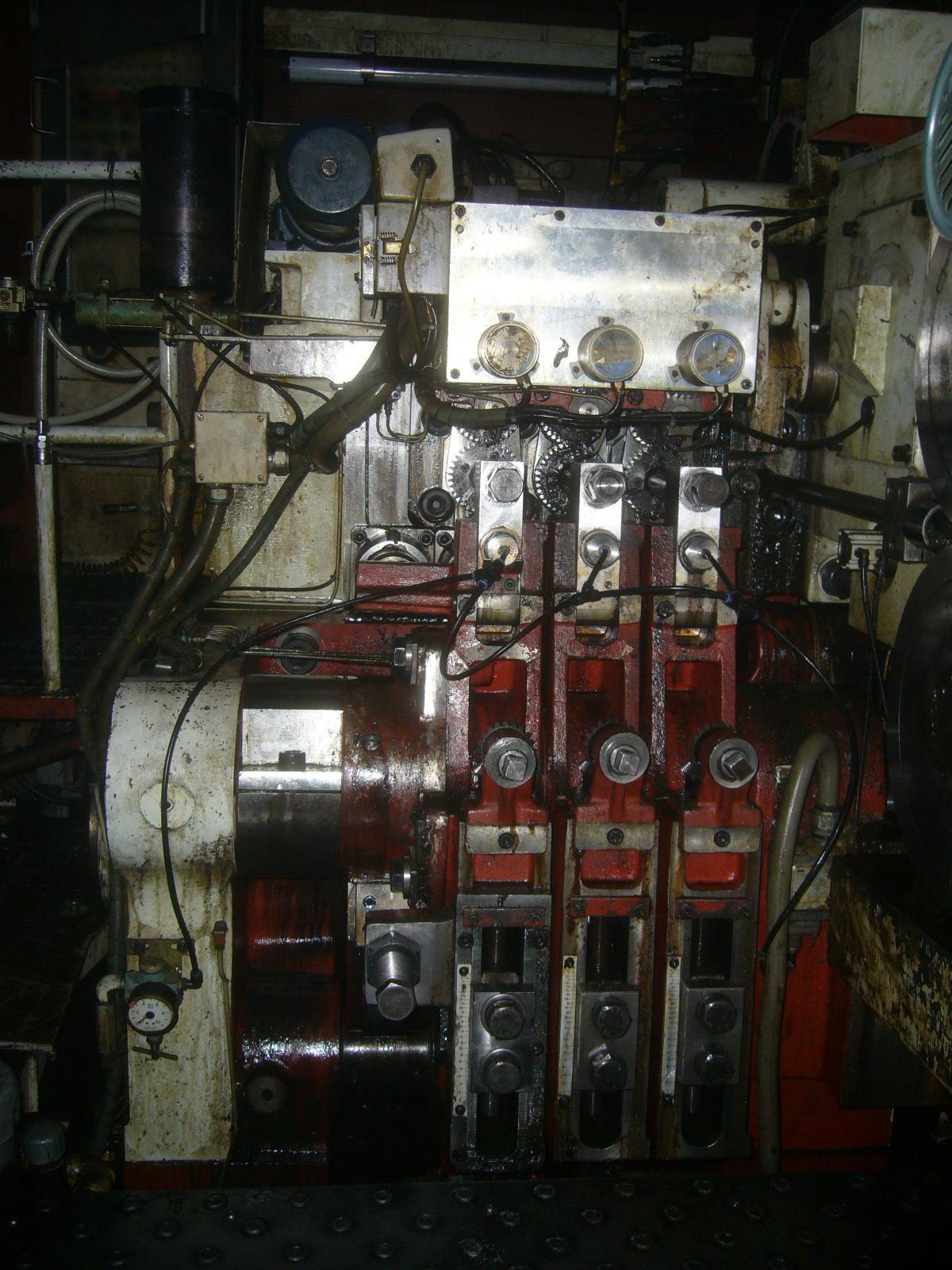

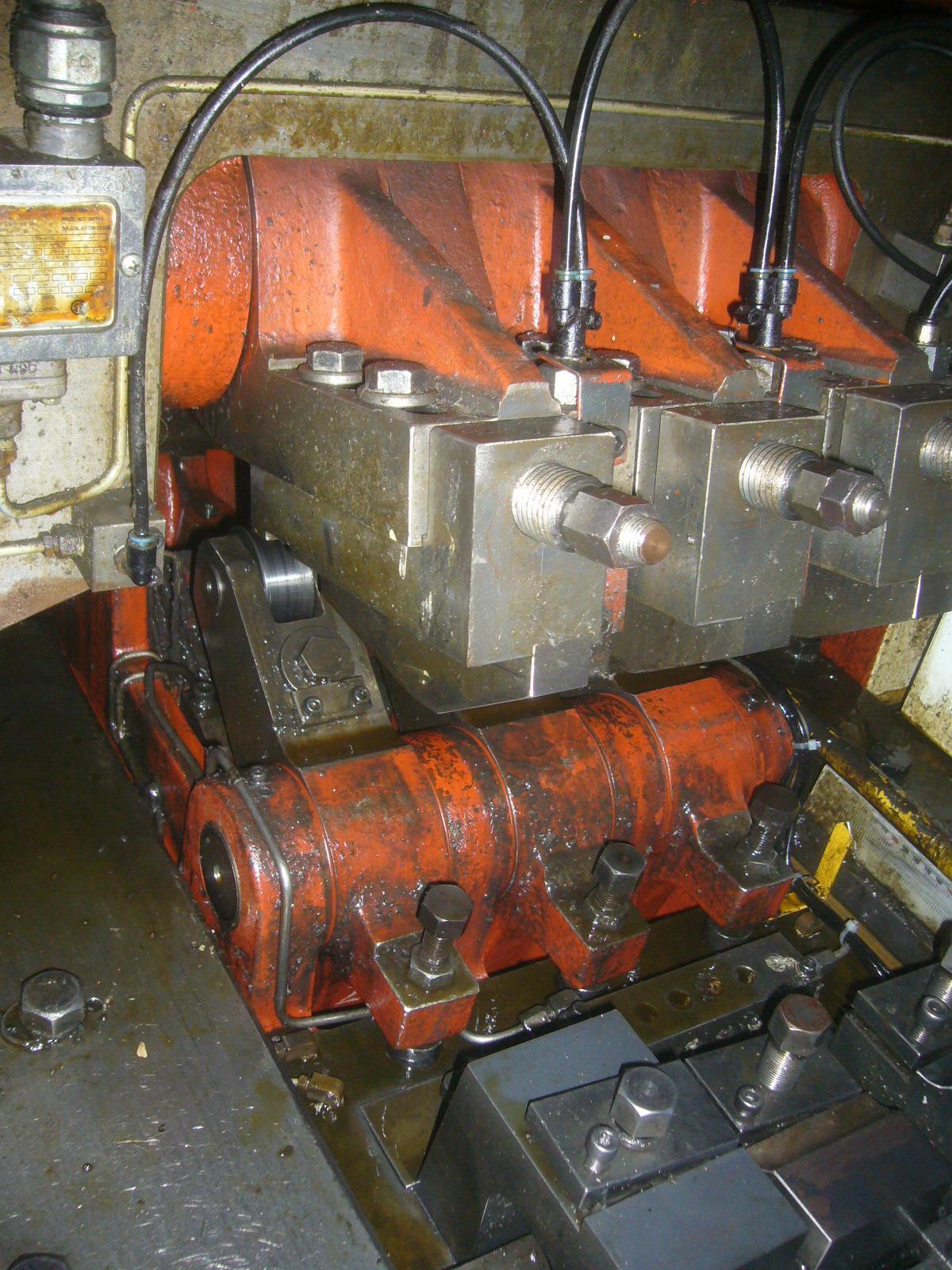

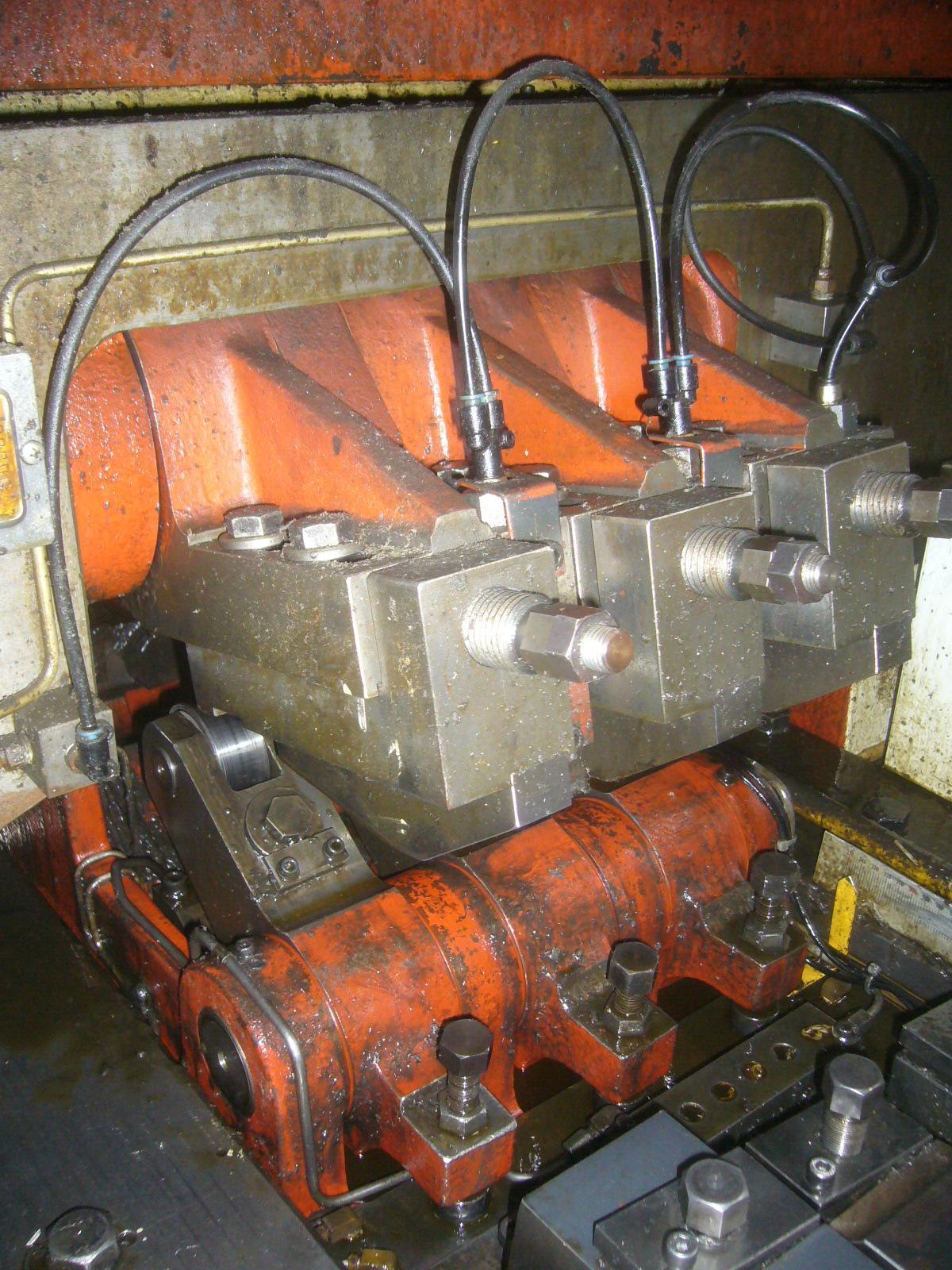

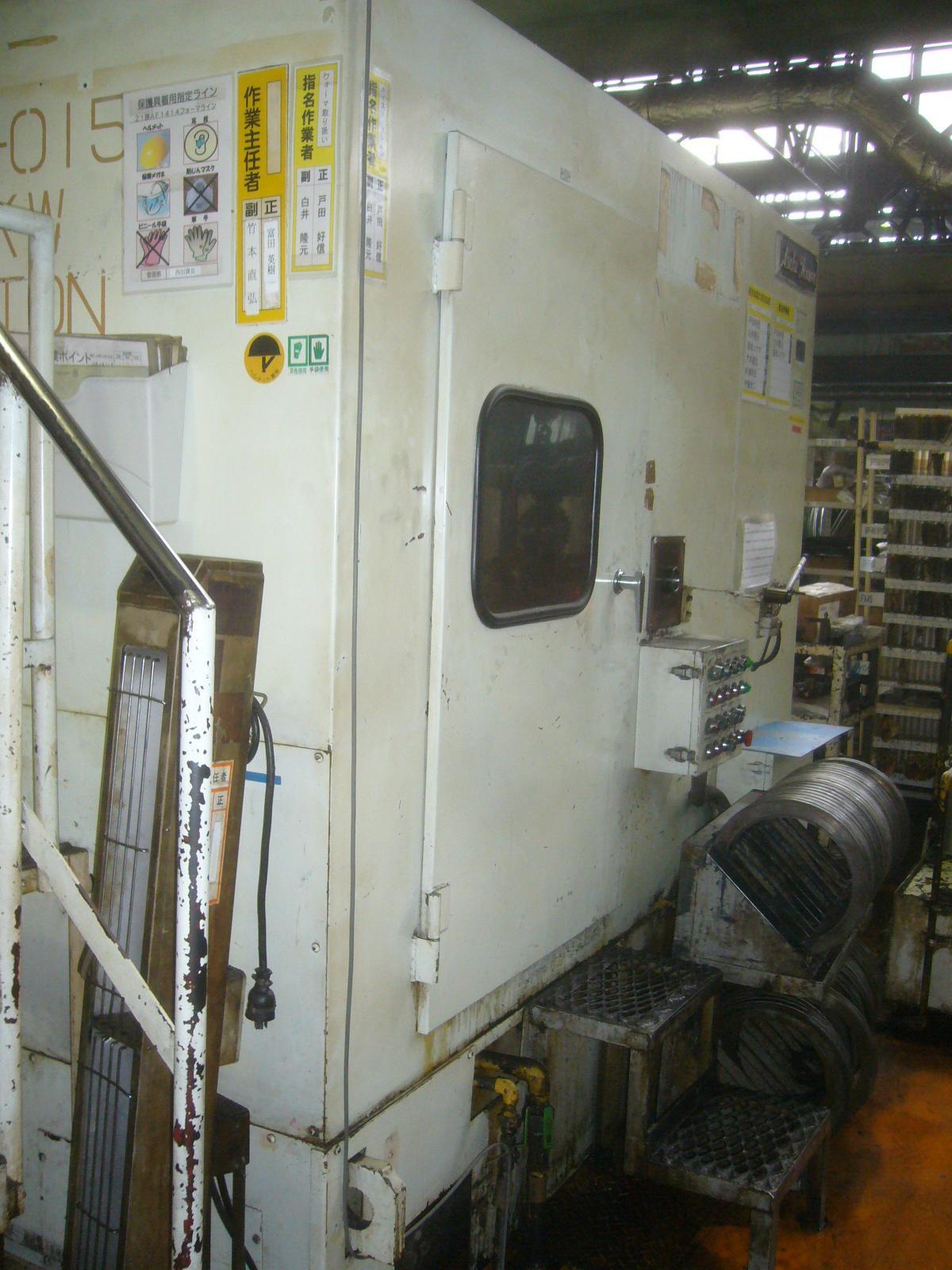

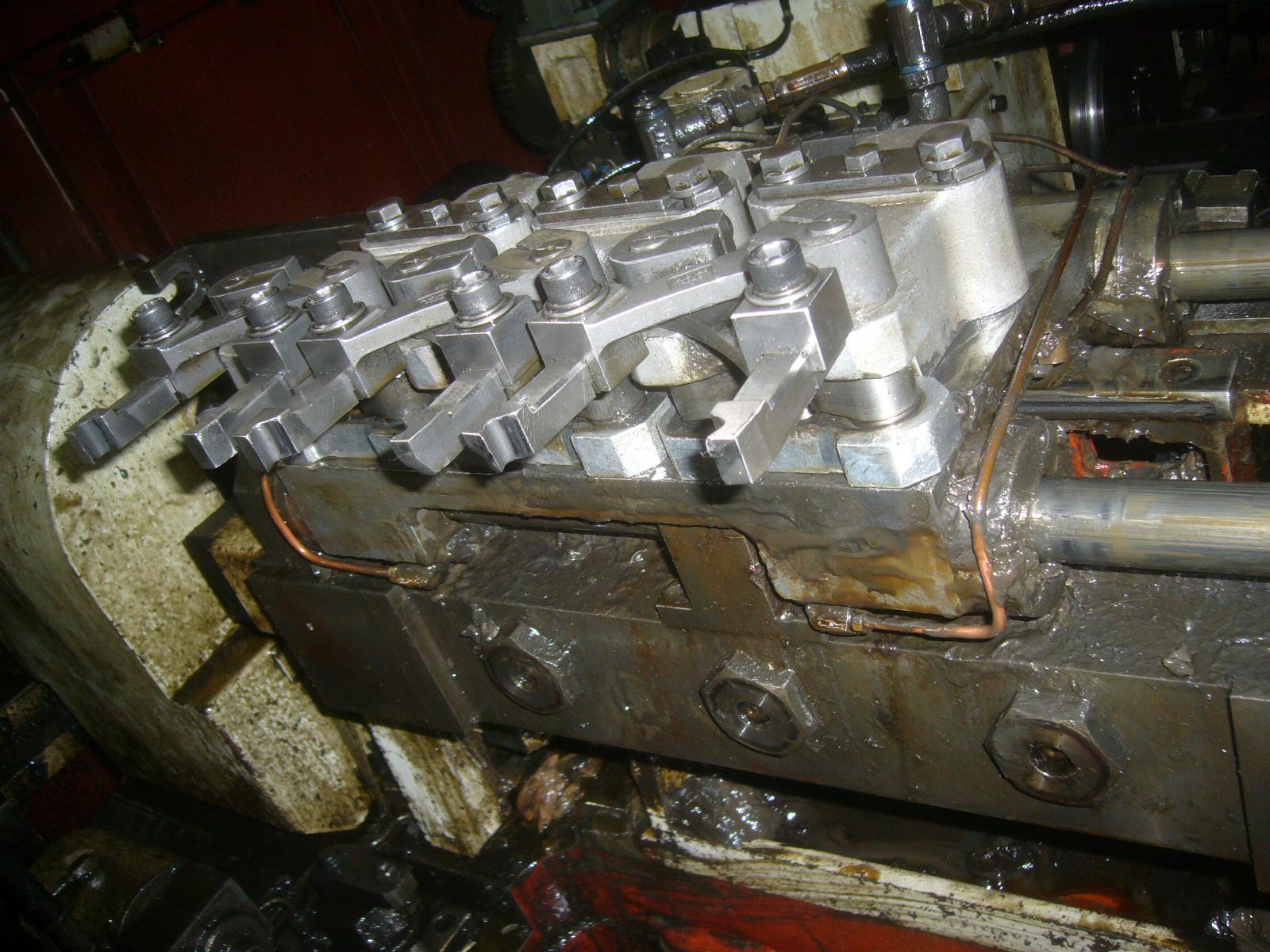

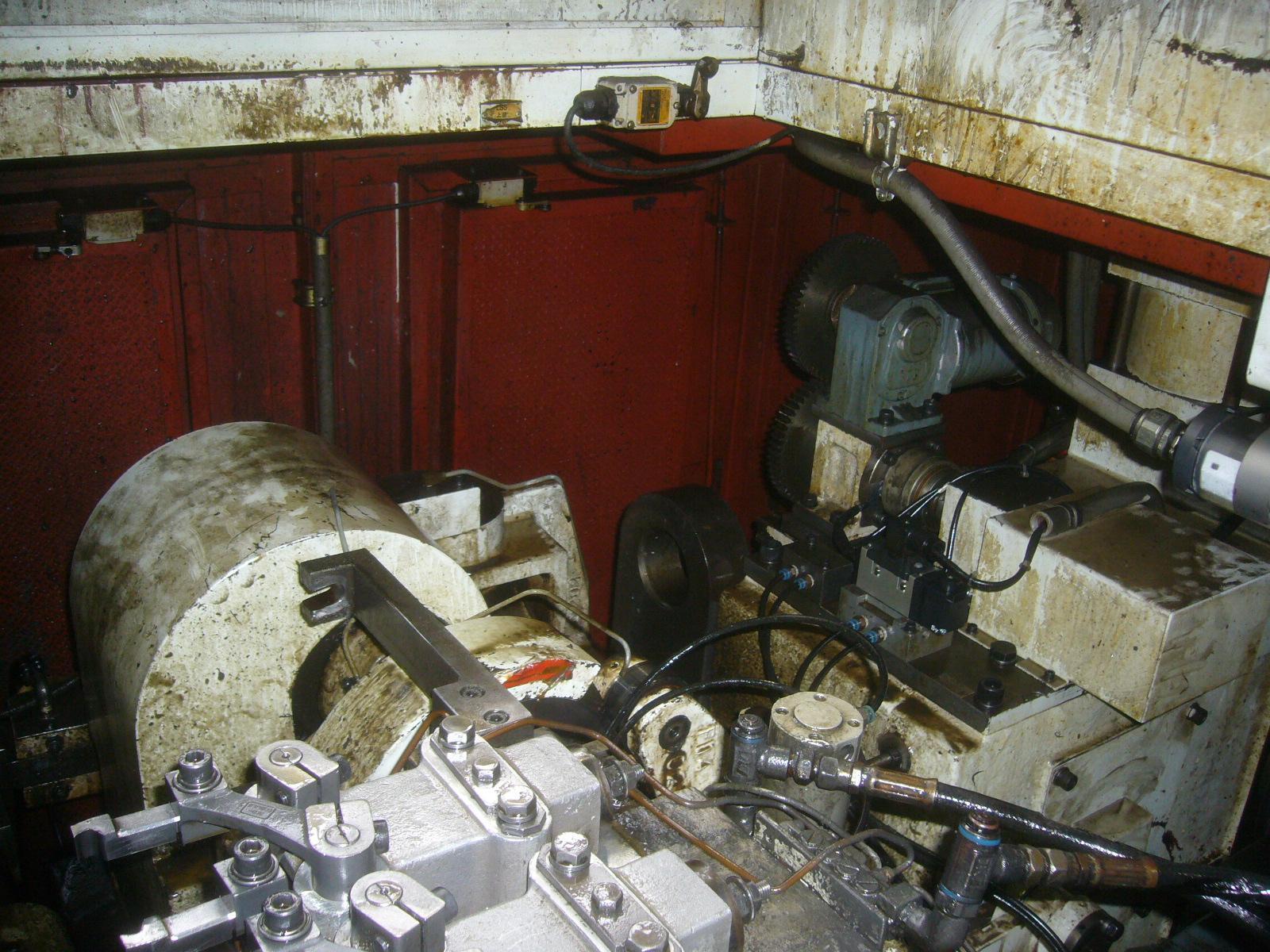

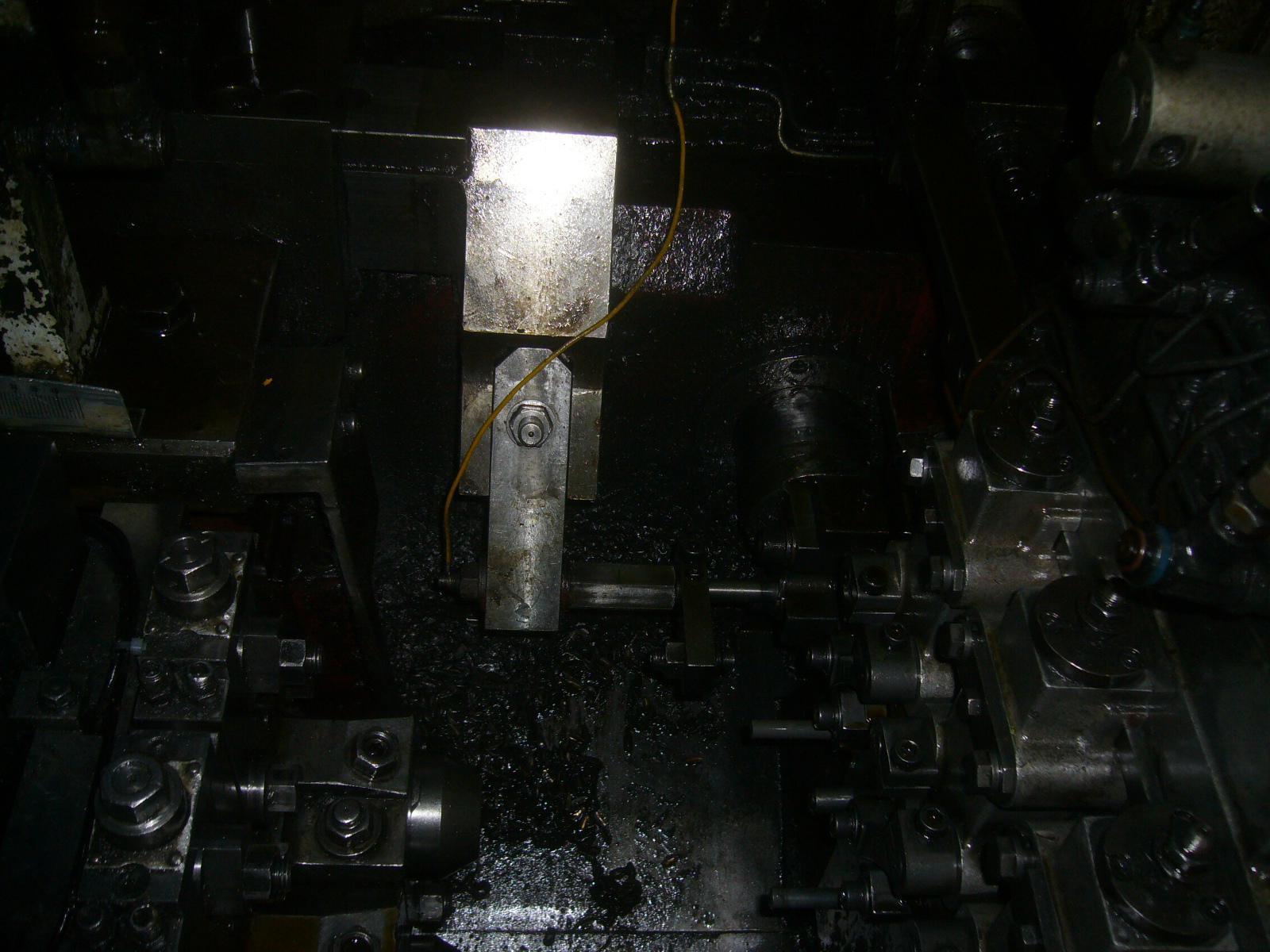

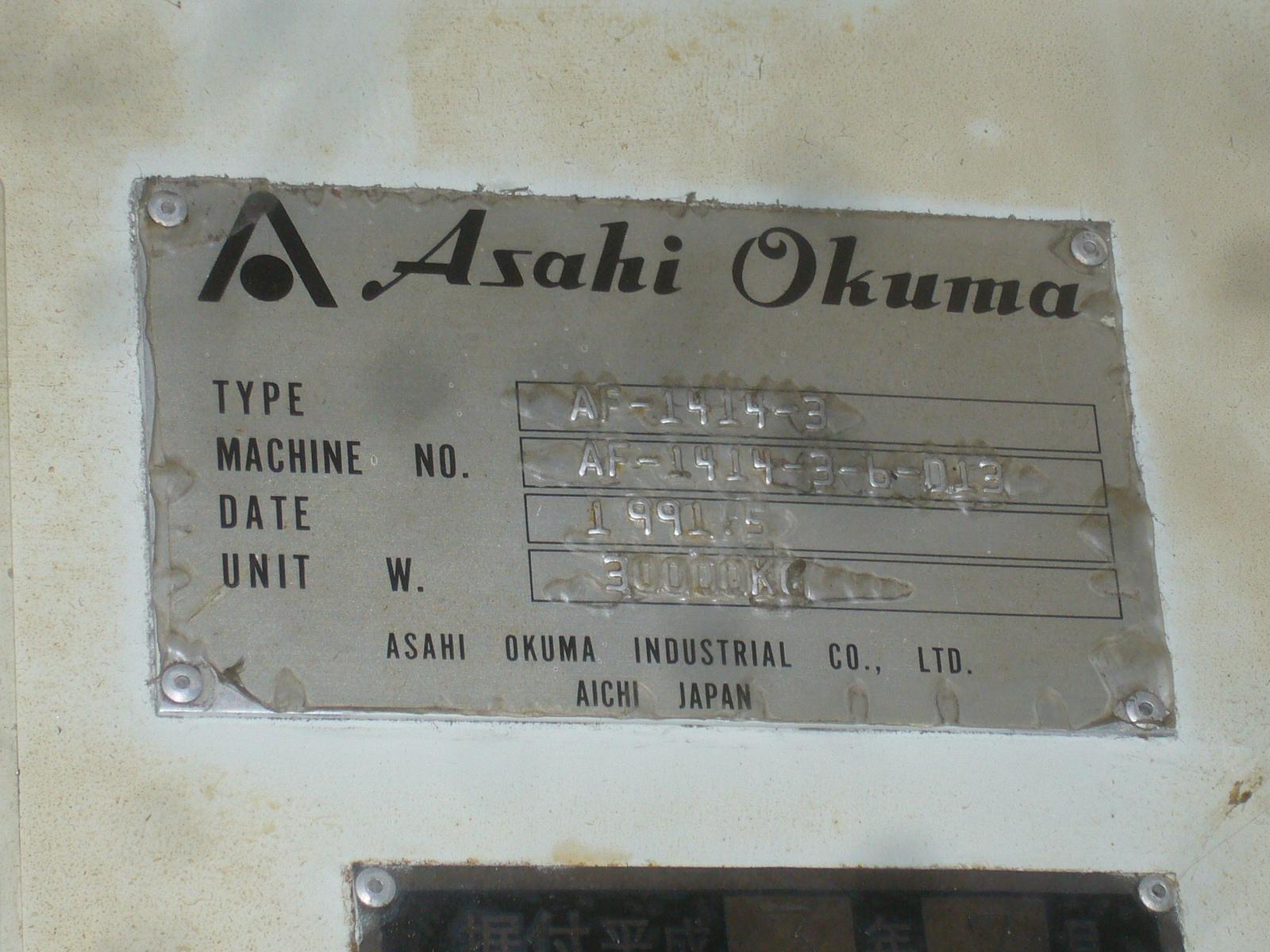

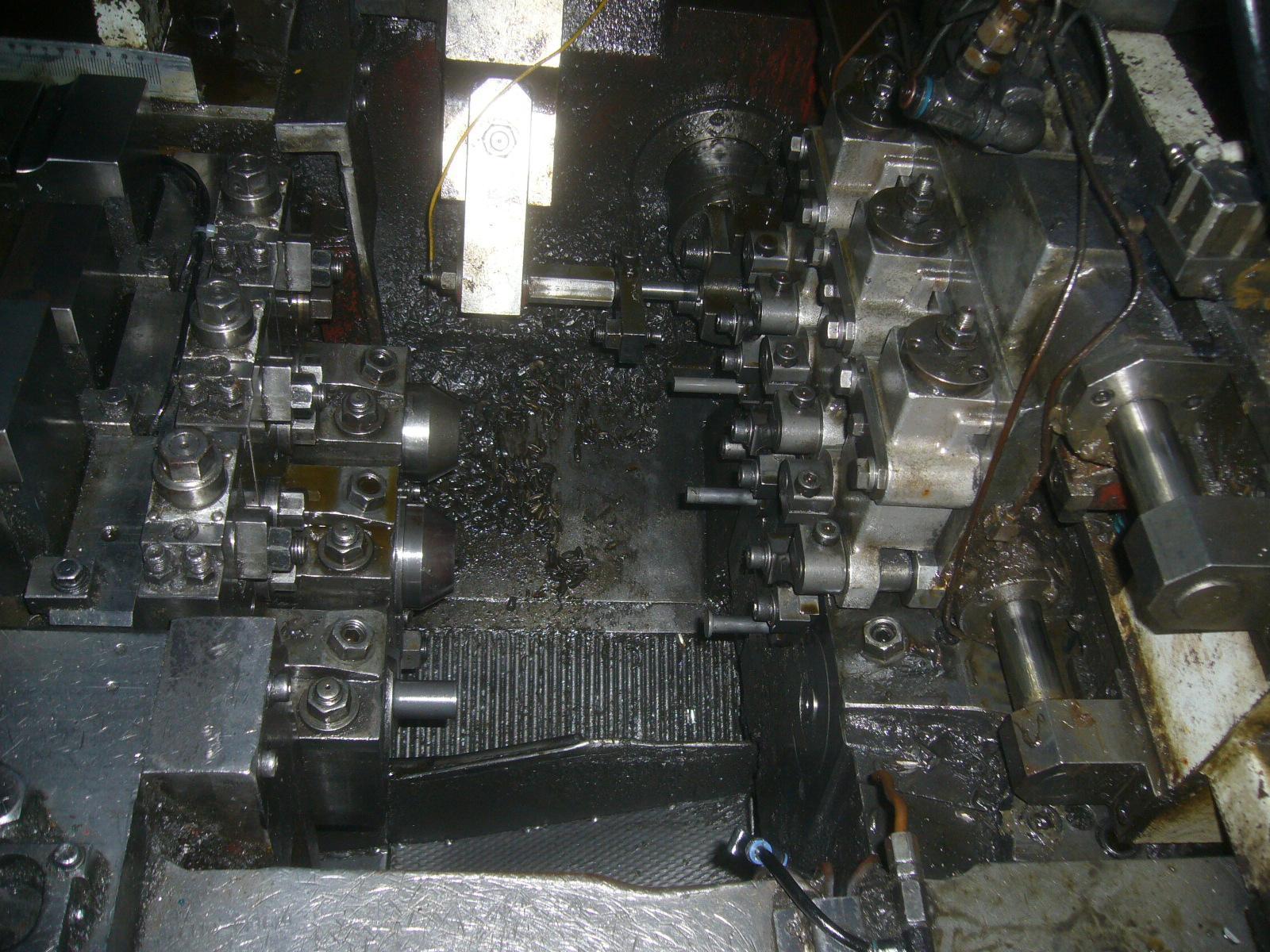

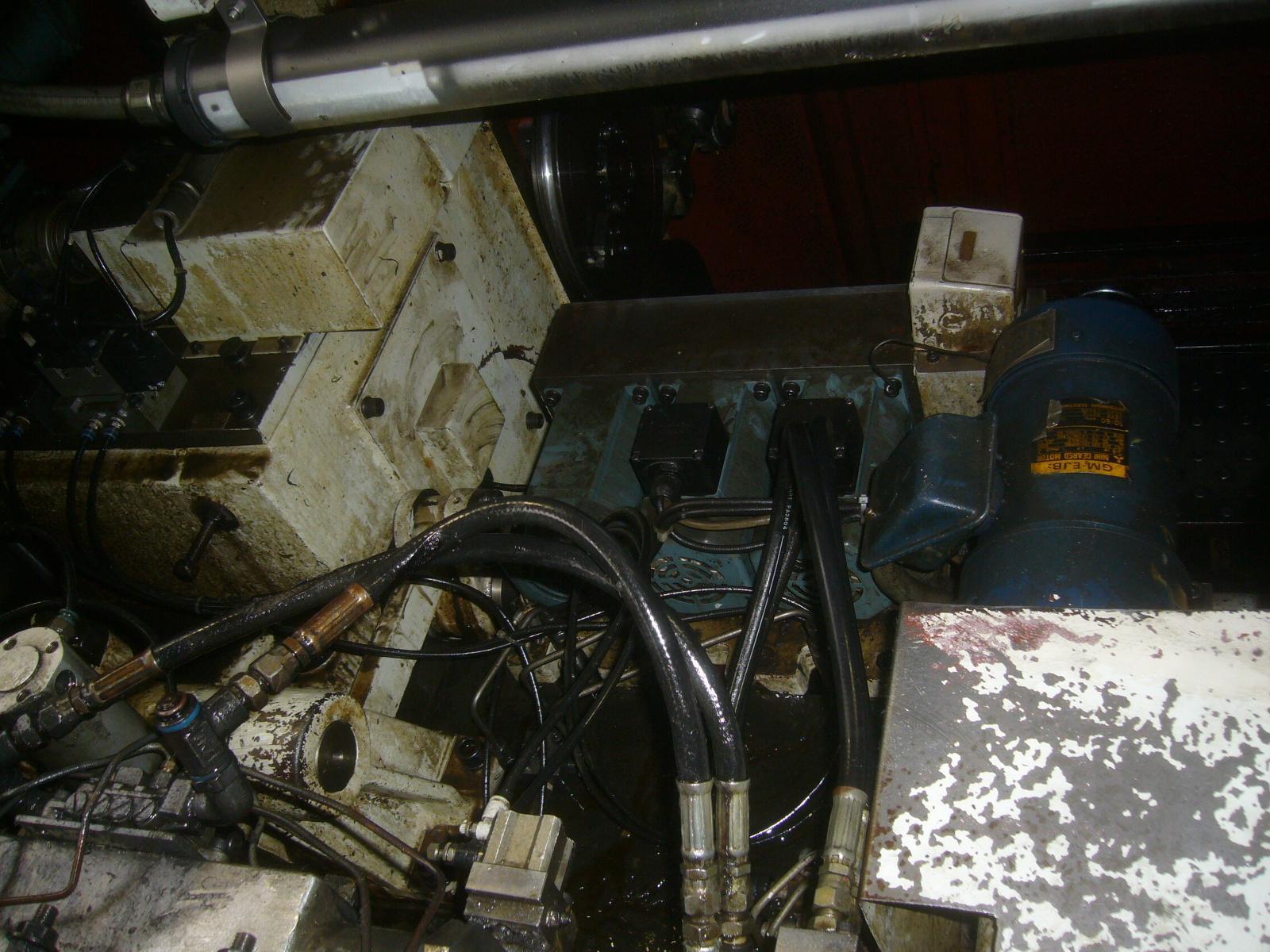

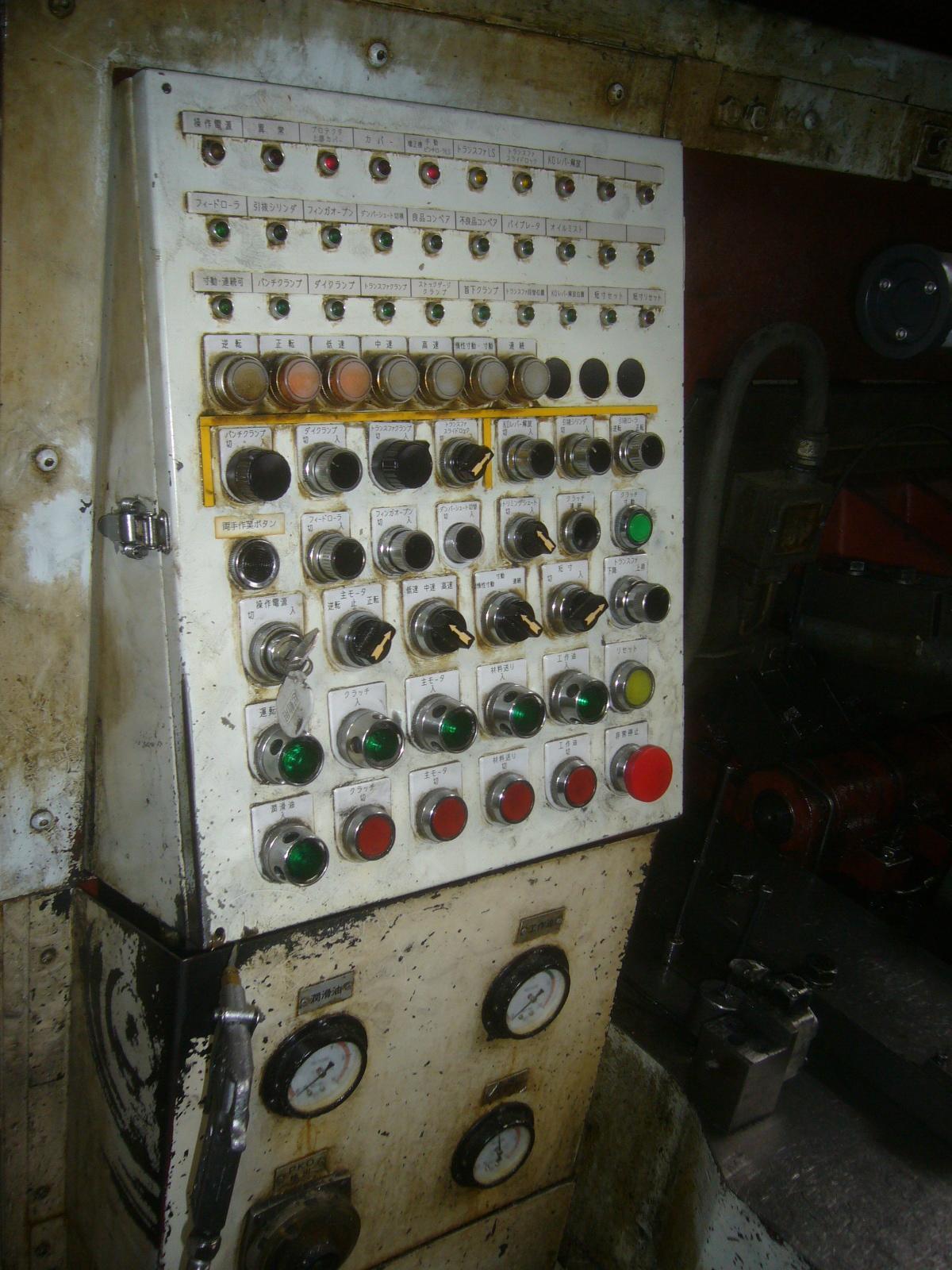

Asahi Sunac Model AF-1414-3 Three Die Progressive Header

Model
AF-1414-3

Stock #
12892

Condition
Used

Year
Year Not Specified

Specifications

Forging Stations 3
Cutoff Diameter 16mm Max. ( 65Kg/cm2)
Cutoff Length 180-20mm
Die Kickout Length 140-25mm
Punch Kickout Length 30-10mm
Die Case Die. x Length ( #1-#3) 100 x 200mm
Punch OD x Length (#1-#3) 75 x 160mm
Cutter OD x Length 60 x 100mm
Pusher Die OD 30mm
Cutter Holder Thickness 25mm
Dimensions of F.D.C. 40mm
Max. Clearable Head Diameter 32mm
Die Center Distance 115mm
Max. Forging Load 150T
Crank Stroke 250mm
Production Speed Max 125spm ( 125/94/62 sheave)
Main Motor Power 45Kw ( 6/8/12P)
Machine Weight 30 Tons
Floor Space (O.A. Dim.) 6.70 x 2.62 Meter

Equipped With

Centrifugal Lube

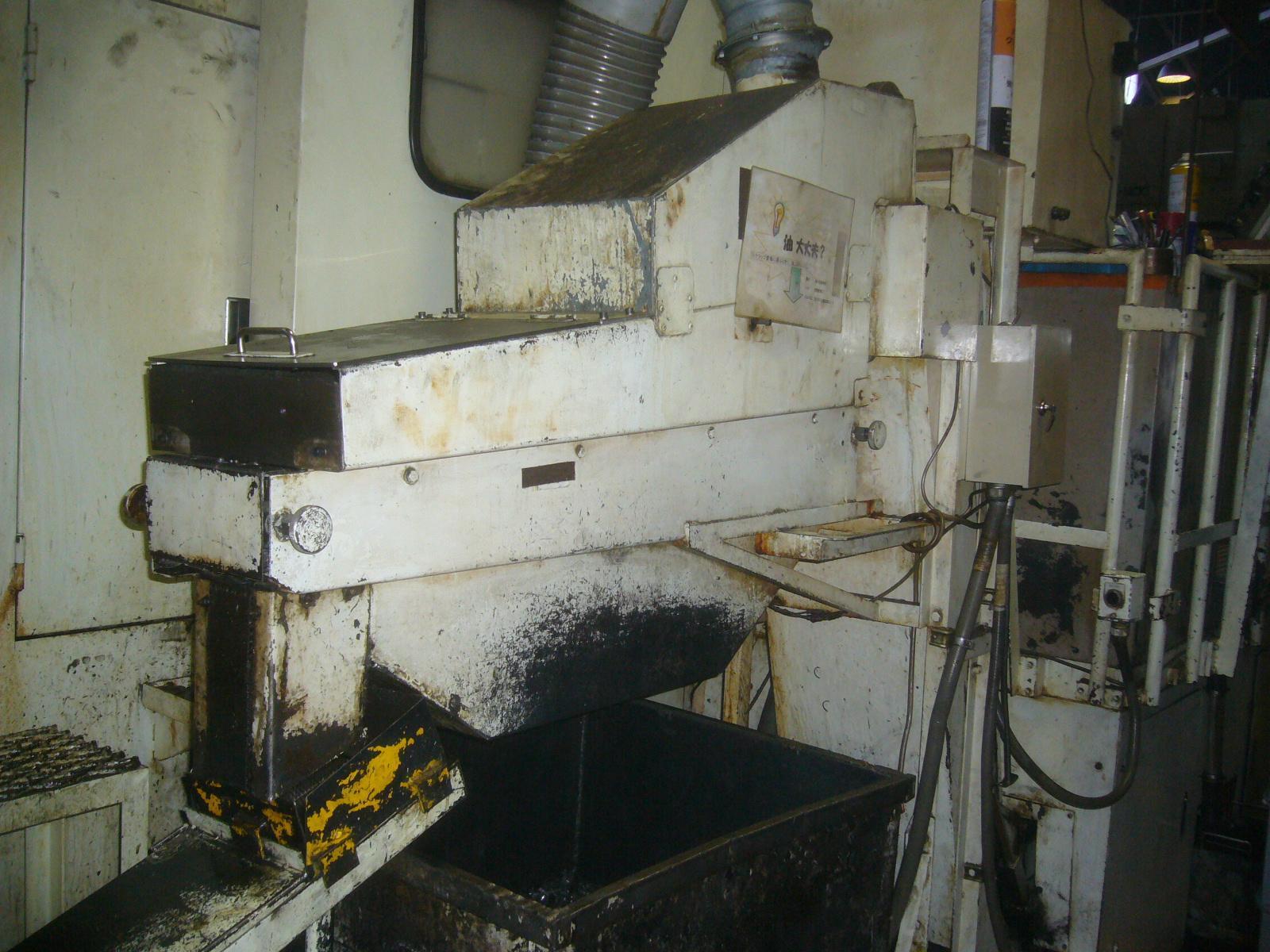

Centrifugal Coolant Cleaner

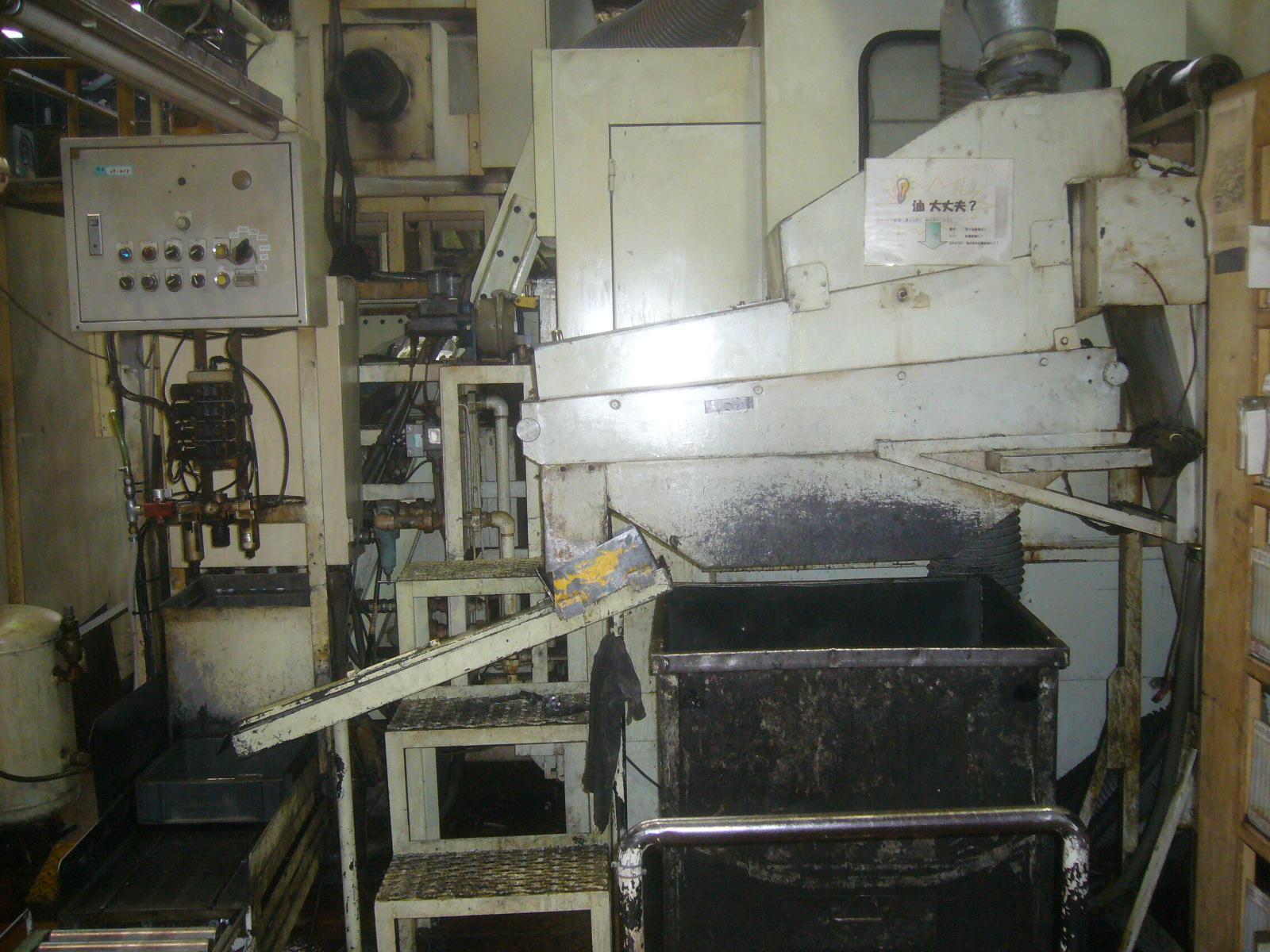

Discharge Conveyor
