ID # 12940

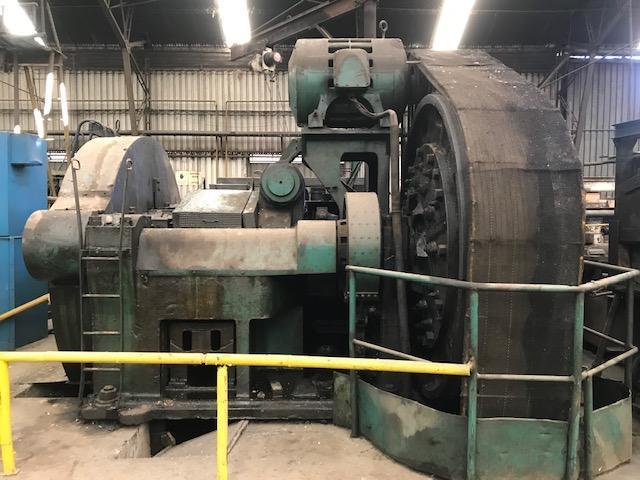

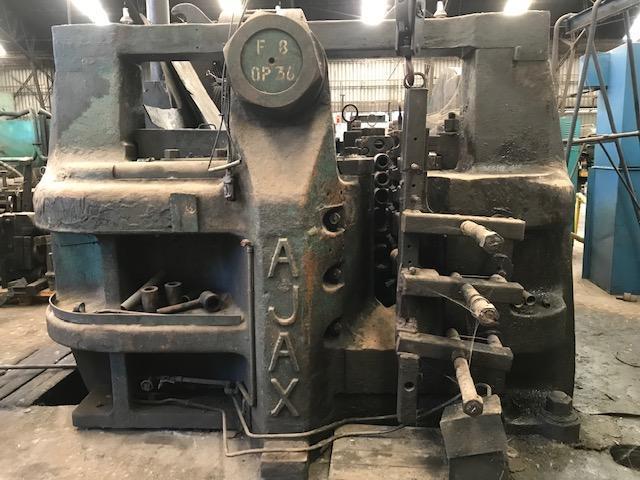

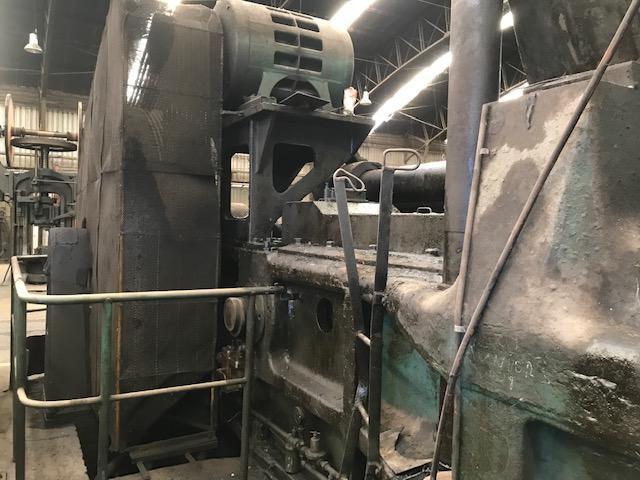

7" Ajax Upsetter Machine

Brand
AJAX

Model
Horizontal Forging Machine

Type
Upsetters

Stock #
12940

Condition
Used

Year
1943

Specifications

Rating in Tons 1500
Die Grip in Tons 995
HDR SL Stroke 20"
Strokes/Min 25
Die Opening 9 1/2"
Stock Gather 13"
Hold On 5" 1/2"
Die Height 39"
Die Thickness 12"
Die Seat Length 28"
Tool & Die Space Max 64"
Eccentric Pin Diameter 20"
Journal Diameter 18"
Flywheel Diameter 102"
Total Energy (ft/Lbs) 727,530
Clutch Torque (In/Lbs) 2,012,990
Gear Ratio 115/19
Torque @ Crankshaft (In/Lbs) 12,183,892
Motor 125 HP
Floor Space F-B, L-R 23'-9", 14'-7"
Total Machine Height 13'-11"
Depth of Pit 2'-9"
Approximate Weight 377,000 Lbs.
