ID # 13074
| Number of Forming Stations | 3 |
| Total Forging Pressure | 900kn |
| #1 Station Forging Pressure | 400kn |
| #2 Station Forging Pressure | 70kn |
| #3 Station Forging Pressure | 400kn |
| Continual Drive Motor Power | 30.0kW |
| SPM Variable Drive | 120-180rpm |
| Machine Weight with Main Motor | 11.5T |
| Length with Drive Motor | 3430mm |
| Width | 2710mm |
| Height | 1550mm |

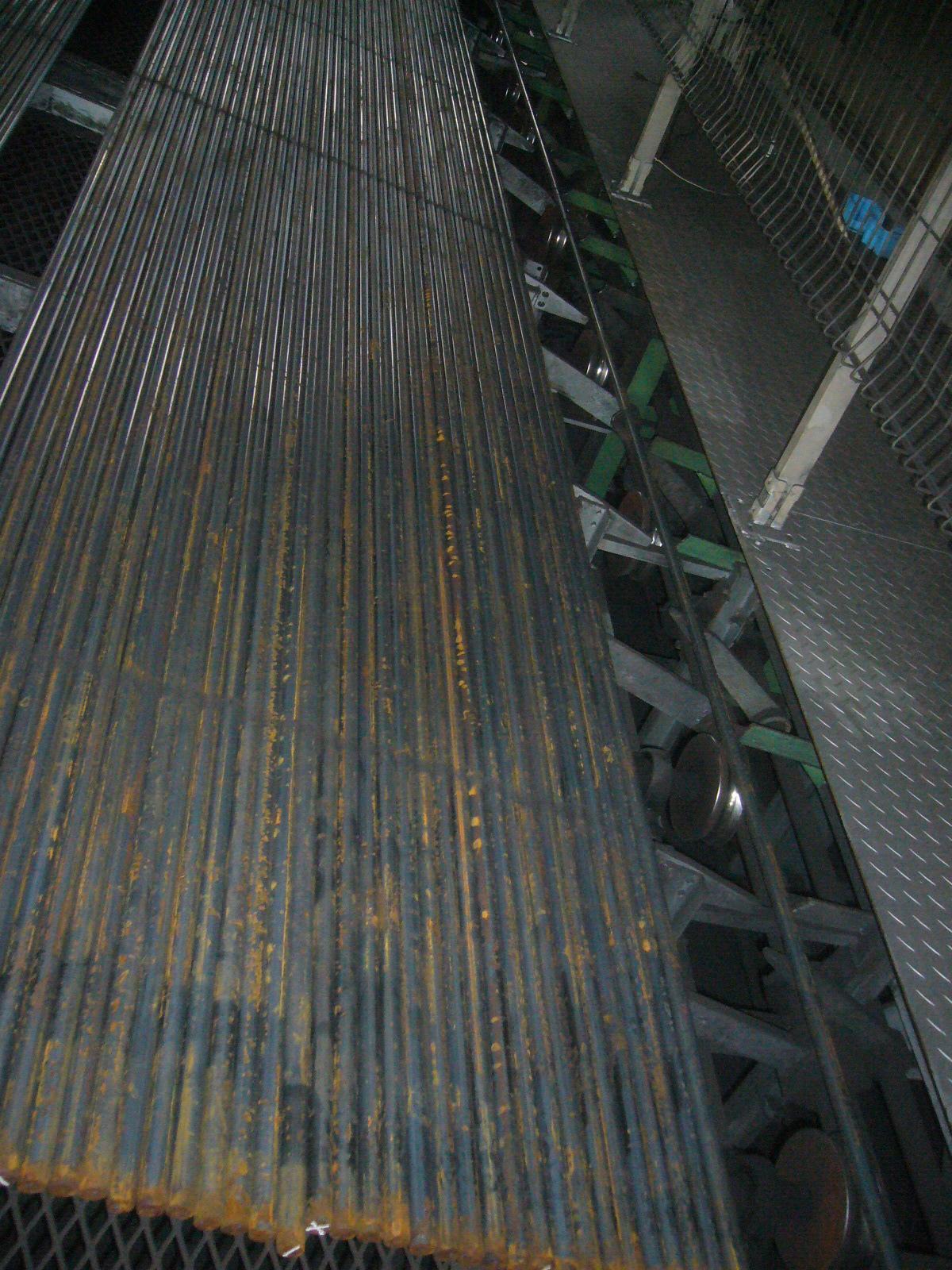

| Bar Feed Height from Floor | 800mm |
| Ram Stroke | 110mm |
| Maximum KO Stroke ( Die) | 55mm |
| Feed Length ( theoritecal) | 45mm |
| Die Diameter | SEE BELOW: |
| 1st Station | 80mm |
| 2nd Station | 100mm |
| 3rd Station | 80mm |
| Maximum Punch Diameter when Piercing Hole | SEE BELOW: |
| 1st Station | 75mm |
| 2nd Station | 75mm |
| 3rd Station | 75mm |
| WORKING RANGE : | SEE BELOW |
| Max./Min. Bar Diameter | 28mm/14mm |
| Cutoff Length | 15-40mm |
| Max. Forging Diameter | 38mm |
| Max. Across Flat Hex | 36mm |
| Max. Across Flat Square | 27mm |

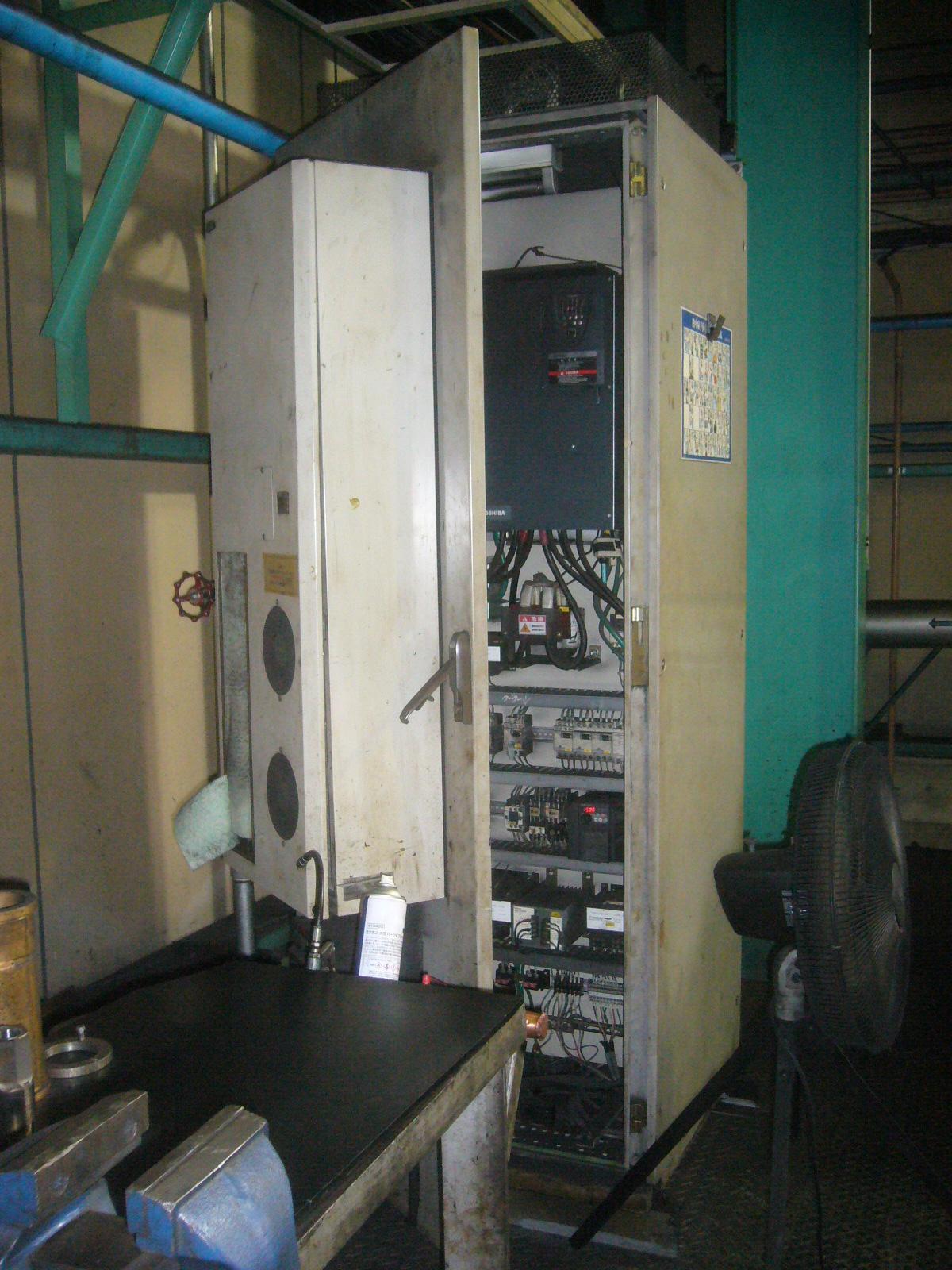

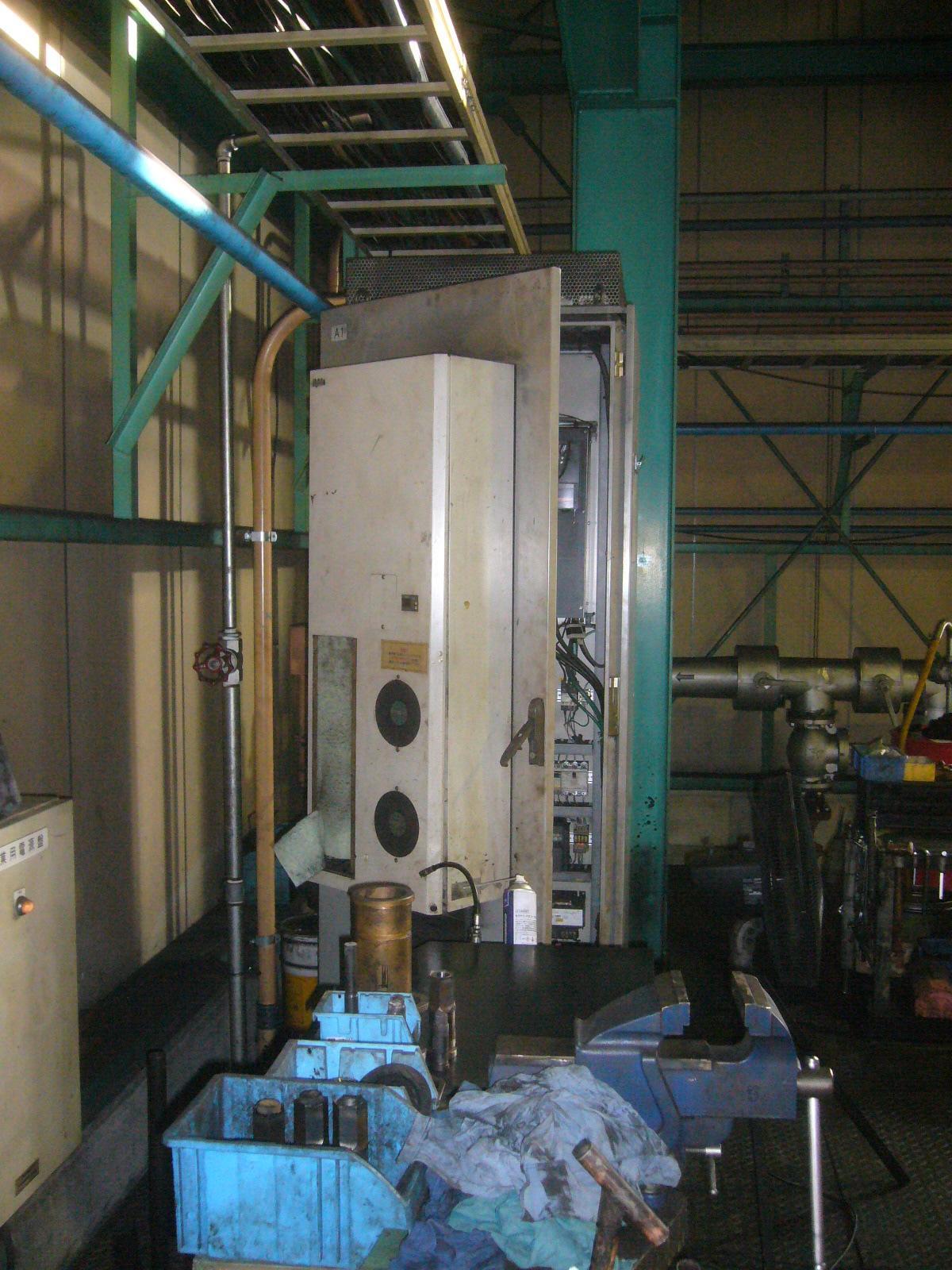

| Electrics | Primary Power: 3 x 220 Volts/ 60Hz +/- 10% |
