ID # 13114
| Square-Cap | 12" x 12" |
| Rounds-Cap | 12" dia. |
| Blade Length | 13'6" |
| Blade Width | 1-1/4" or 1" |
| Blade Thickness | .042 or .032 |
| Blade Speed ( infinitely variable) | 75-400 sfm |
| Blade Guides | Carbide |
| Blade Wheel Diameter | 16" |
| Blade Drive | 5 HP |
| Hydraulic Drive | 2 HP |
| Hydraulic Pressure System | 750 PSI |
| Hydraulic Tank Capacity | 7.5 US Gallon |
| Coolant Tank | 10.5 US Gallon |
| Shuttle Stroke | 0-40 Single |

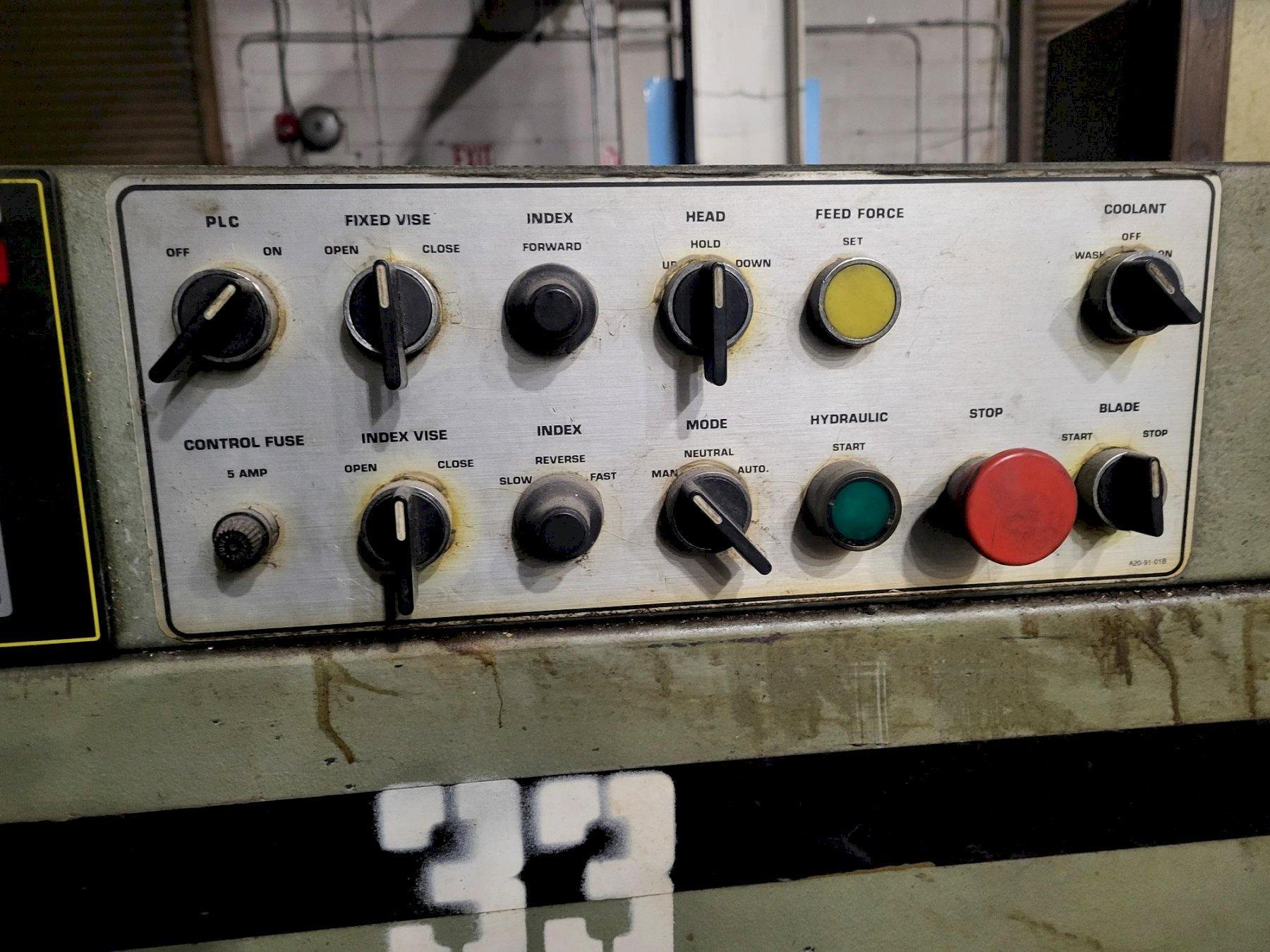

| Vise Control | Full Stroke Hydraulic |
| Table Height | 31" |
| Maximum Work Load | 6,000 Lbs. |
| Dimensions | 88"W x 96"L x 66"H |
