ID # 13398

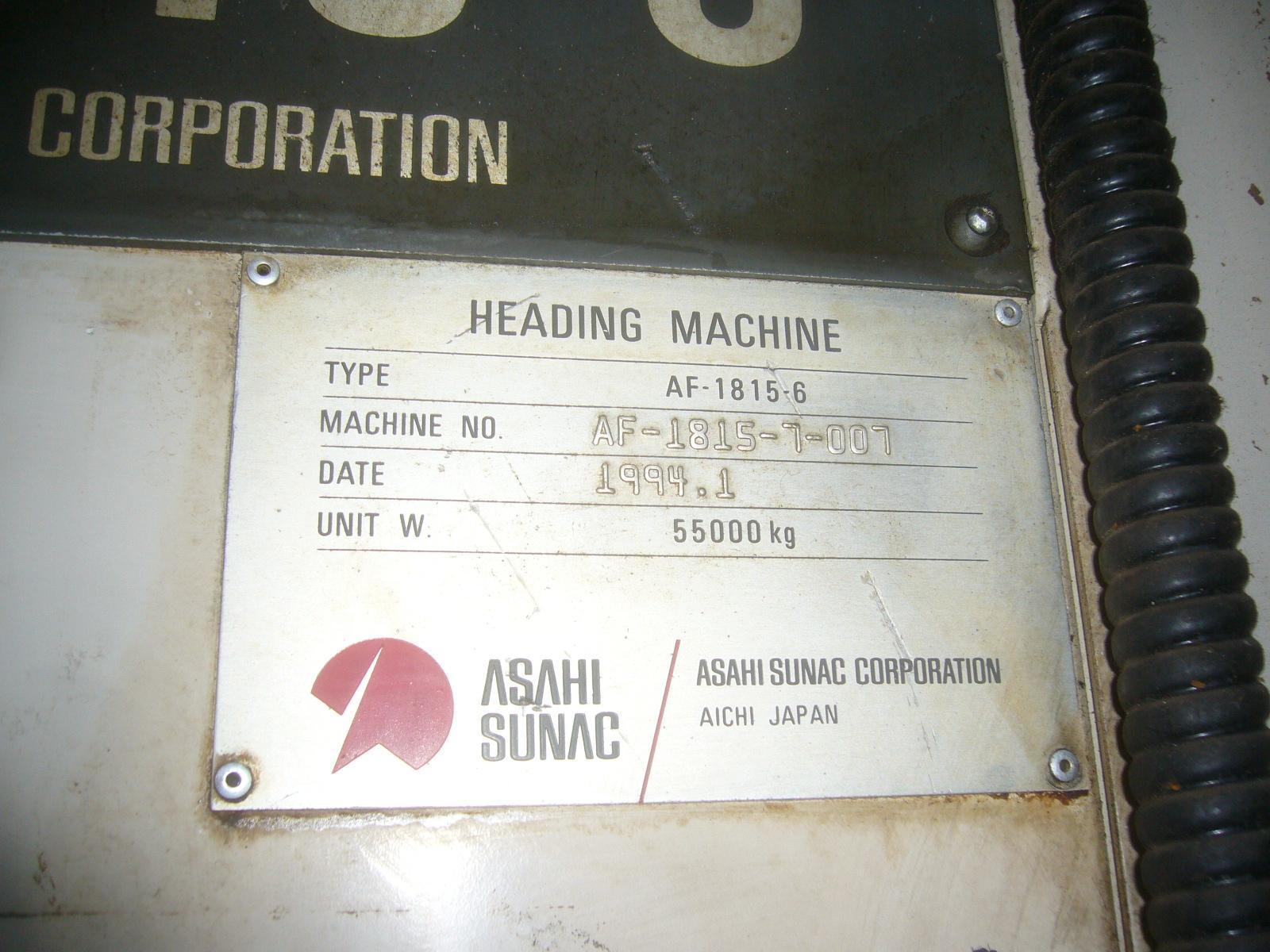

Asahi Sunac Model AF1815-6 Six Die Parts Forming Machine

Brand
ASAHI SUNAC

Model
AF1815-6

Type
Parts Formers, 6 Die

Stock #
13398

Condition
Used

Year
1994

Request a Quote

Specifications

Cutoff Diameter 22mm (60kg/cm2)
Cutoff Length 155-15mm
Die Case Diameter x L 110 x 200mm all station
Quill OD x L 75 x 95mm
PKO Stroke 40mm all station
Pusher Die OD 30mm
Punch OD Diameter x L 80 x 145mm all station
KO Stroke 150-15mm all station
Cutter Holder Thickness 33mm
Dimensions of FDC 45mm
Reversible Blank Length 20,40mm ( 2 ways)
Die Center Distance 120mm
Max. Forging Load 220 tons
Crank Stroke 270mm
Production Speed 120 spm
Main Motor 55/40/28kW (6/8/12p)
Weight 55 tons
O.A. Dimensions 7.4 x 3.4 x 2.8m (lxwxh)

Equipped With



Machine Videos

https://www.youtube.com/watch?v=9a1QqmLCnKA
