ID # 13643

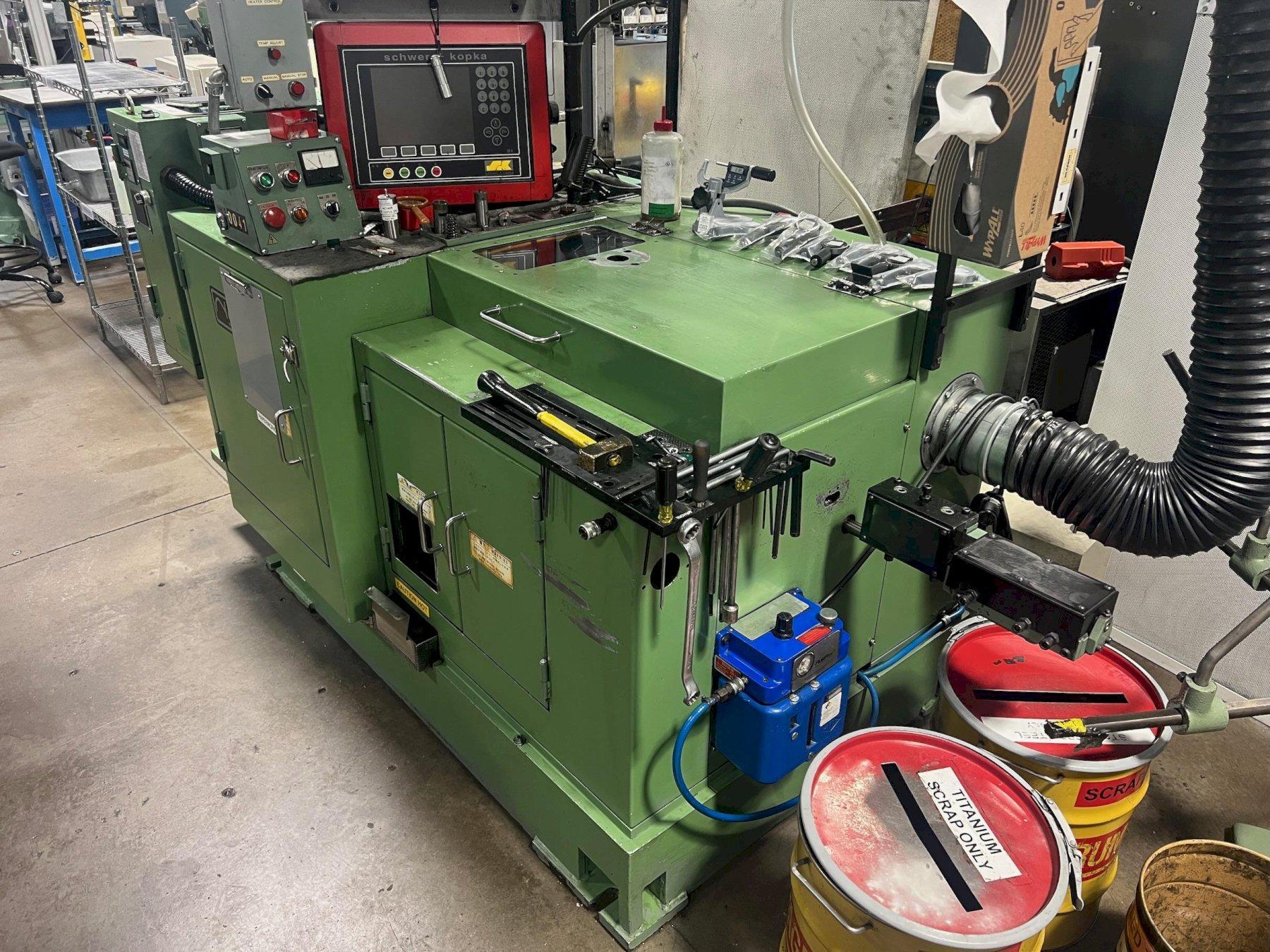

Nakashimada Model NS41E High Speed 1 Die 2 Blow Cold Header

Brand
NAKASHIMADA

Model
NS41E

Type
Cold Header, Open Die, 1 Die 2 Blow

Stock #
13643

Condition
Used

Year
1998

Request a Quote

Specifications

Maximum Cutoff Diameter ( 450N) 5.0mm
Maximum Cutoff Diameter ( 700N) 4.0mm
Minimum Cutoff Diameter 2.5mm
Maximum Cutoff Length 60mm
Minimum Cutoff Length std. 20mm
Minimum Cutoff Length spl. 10mm
Maximum Shank Length 45mm
Cutting Die D x L 16x30mm
#1 Die d x l 40x80mm
#1 Punch d x l 26x49mm
#2 Punch d x l 28.5x75.5mm
#1 DKO Stroke 45mm
#1 PKO Stroke (opt.) (12)mm
#2 Pko Stroke (Opt.) (6)mm
Max. Speed 250/200 PPM
Main Motor 5.5/4P
Heading Tonnage 150kN
Tank Capacity 40L
Dimensions 1970l x 1075w x 1260h mm
Weight 2600 Kg.

Equipped With

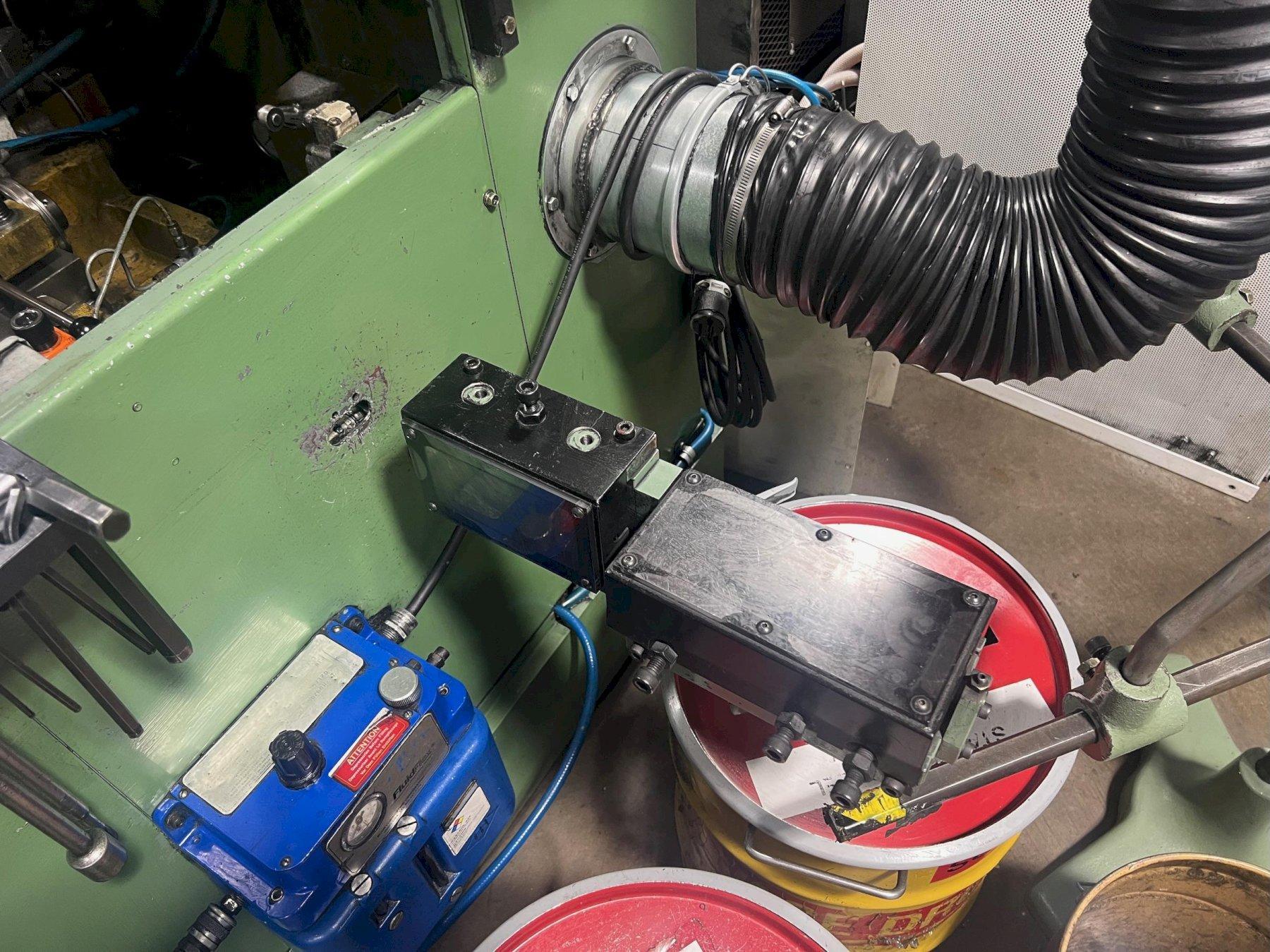

Machine is set up for Heat, Heater NOT Included.

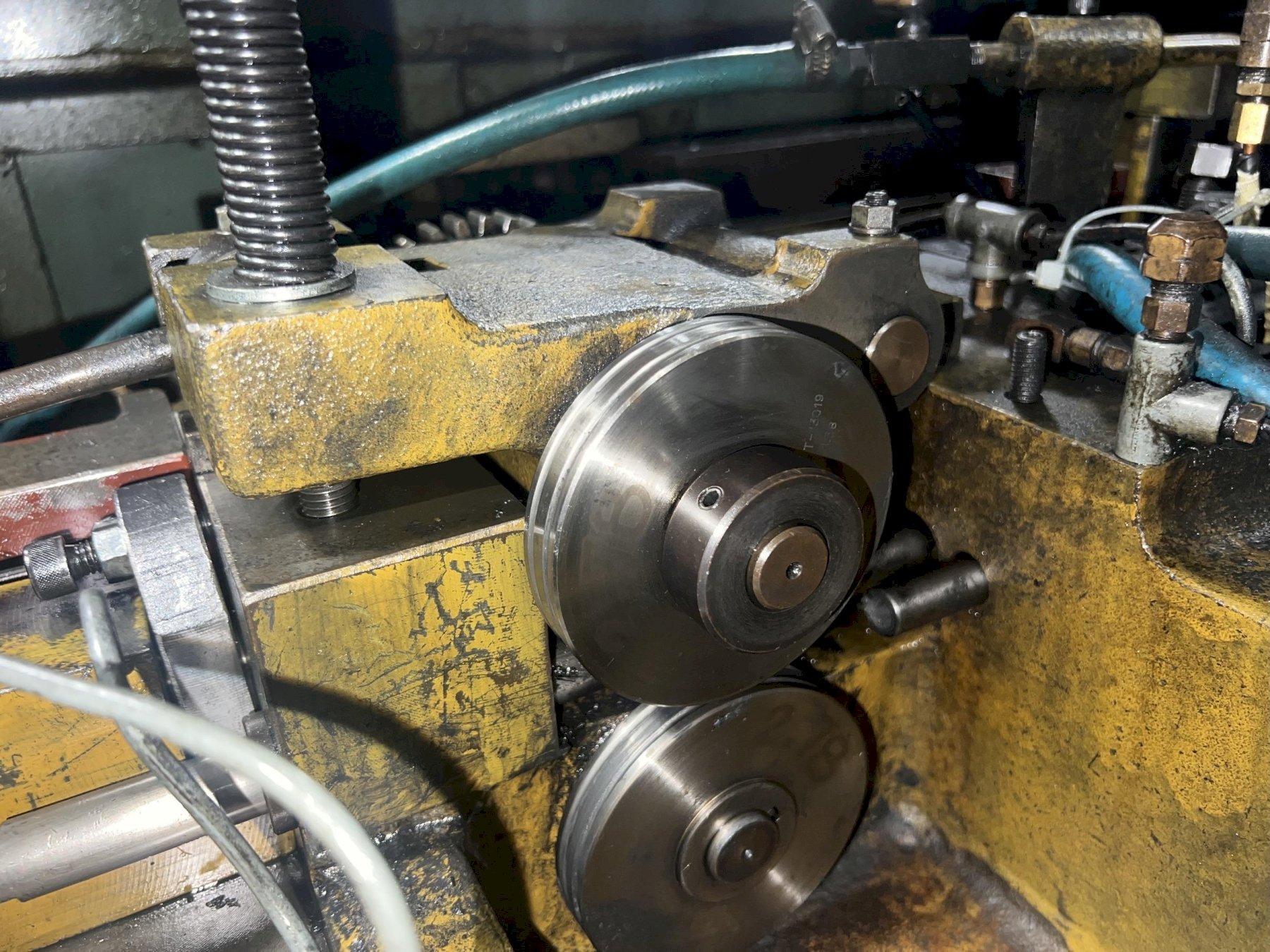

2 Plane straightener

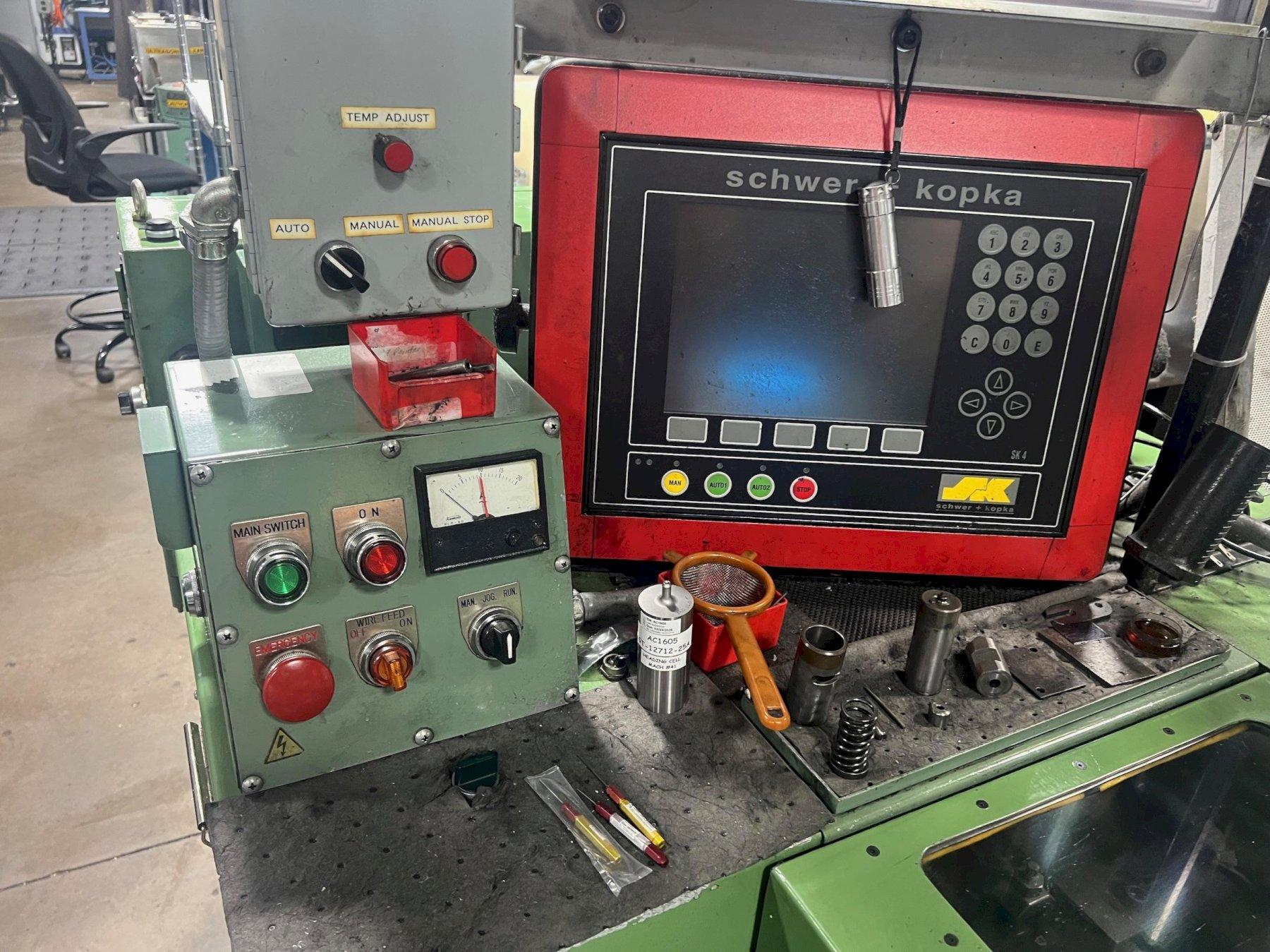

SK Monitor

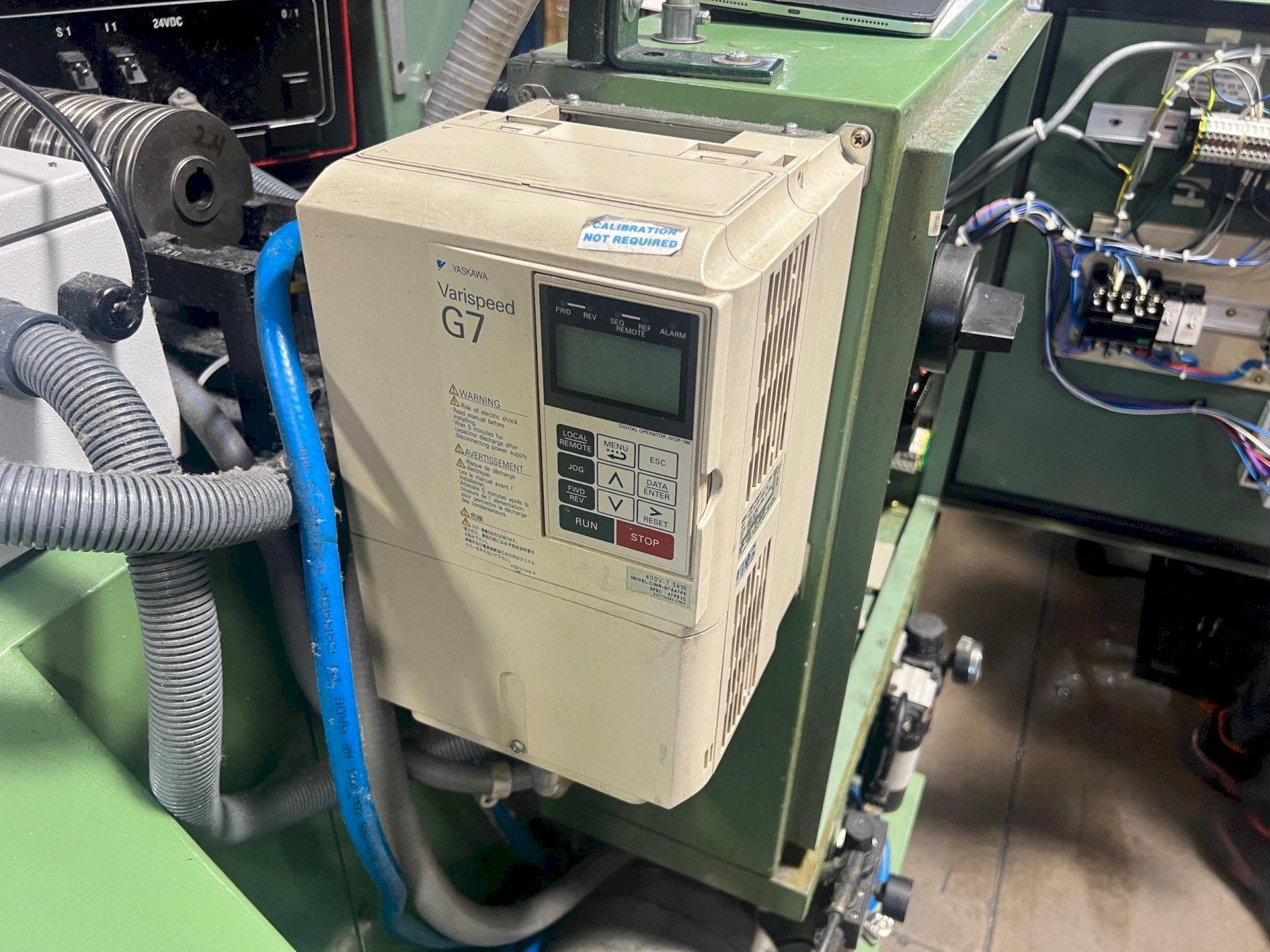

AC Vari Drive
