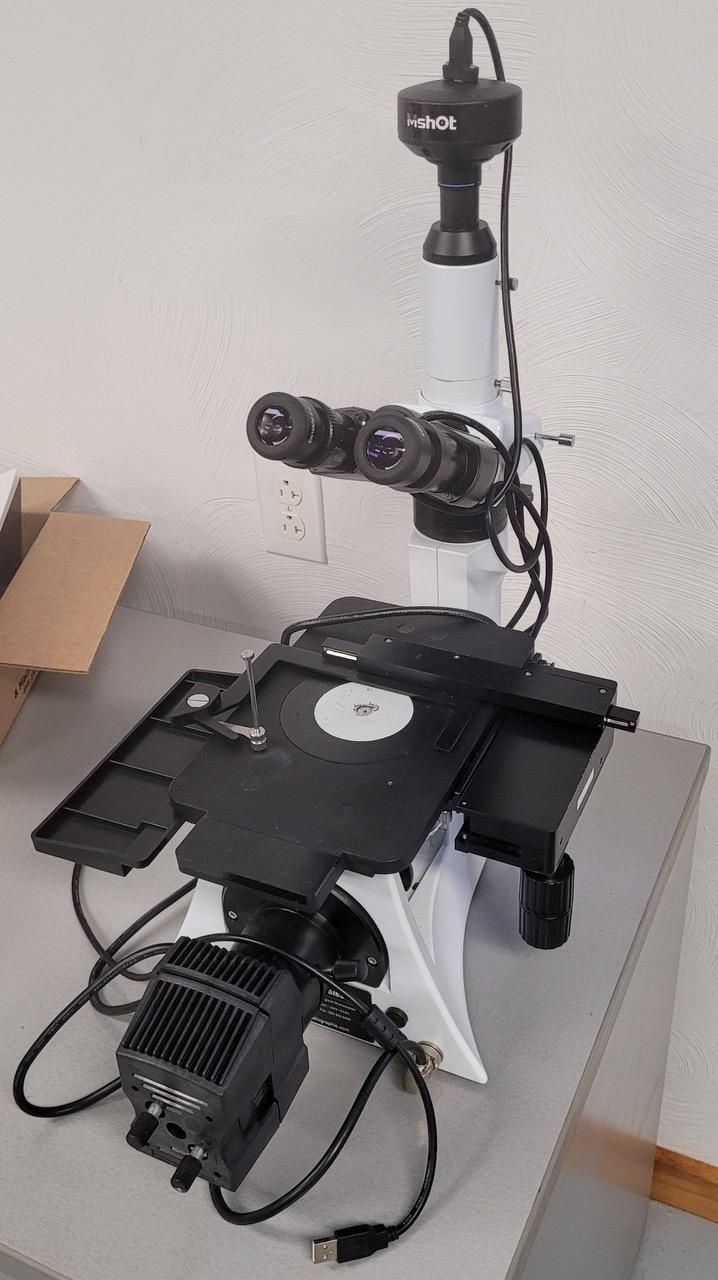

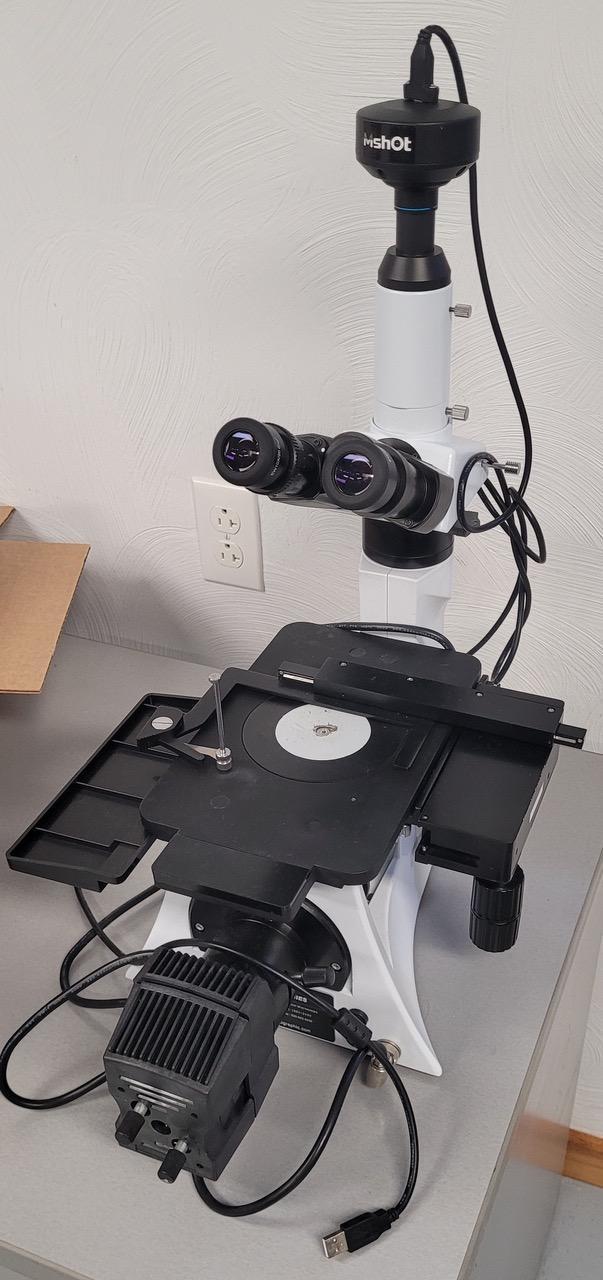

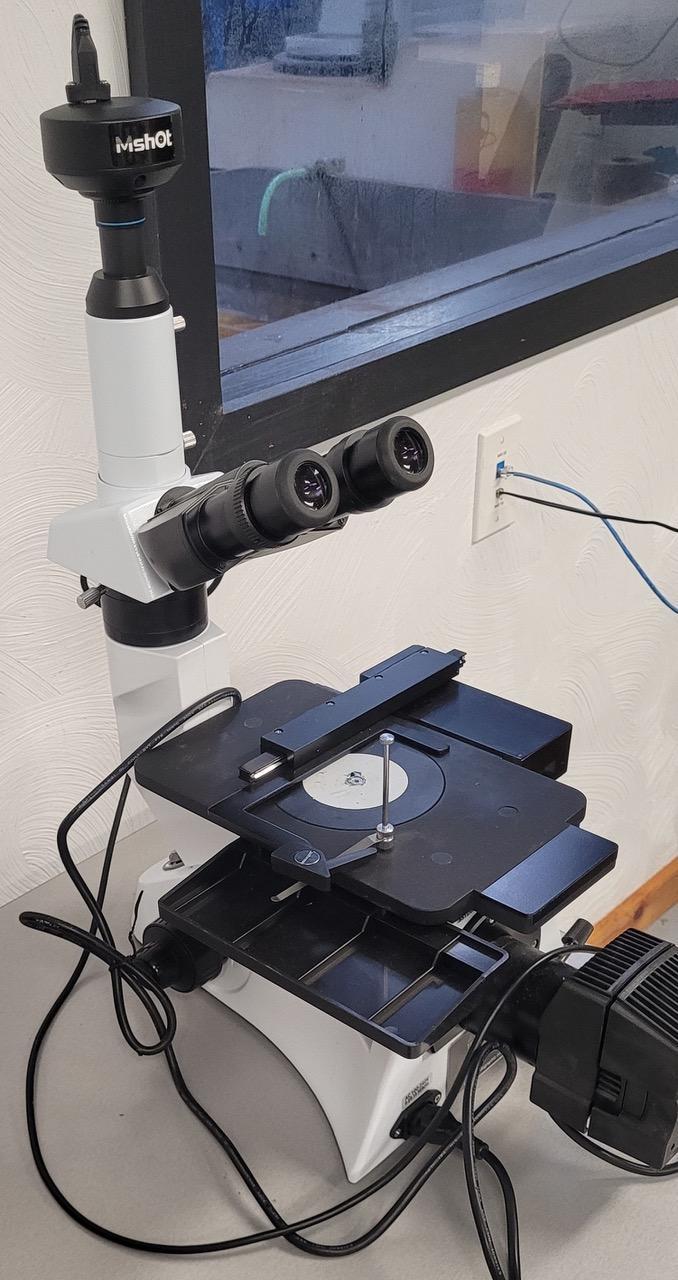

ID # 13921
Brand
PACE TECHNOLOGIES
Model
IM-3000
Type
Miscellaneous
Stock #
13921
Condition
Used
Year
Year Not Specified
| Eyepiece | Wide field WF 10X (field no. 22 mm) |
| Objectives (Mag/N.A.) | Infinite Plan Achromatic 5X/0.12, Infinite Plan Achromatic 10X/0.25, Infinite Plan Achromatic 20X/0.40 ,Infinite Plan Achromatic 50X/0.80 , Infinite Plan Achromatic 100X/0.90 |

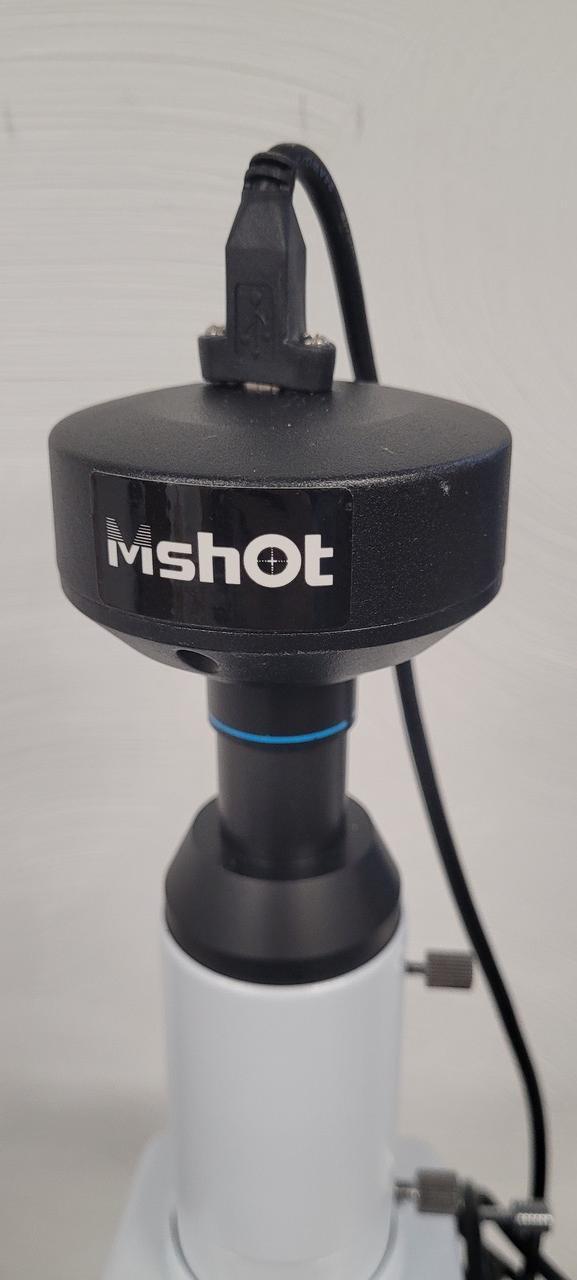

| Trinocular Head | Trinocular, 45 degree inclination ratio - Observation: 80%, photo 20% |
| Focusing System | Coaxial coarse/fine focus (2 micron) - Travel (stage to focal plane) up 1, down 7 (mm) |
| Nosepiece | Quintuple |

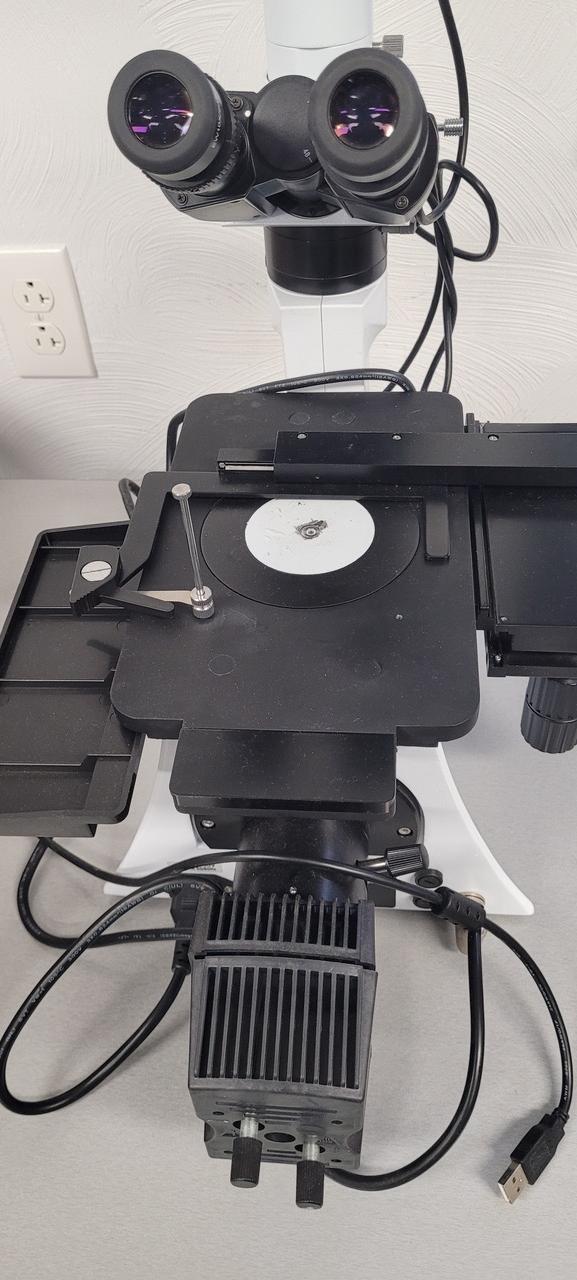

| Mechanical Stage | X-Y stage - Travel range: 1.6 x 1.6-inches (40 x 40 mm) - Size: 8.9 x 7-inches (226 x 178 mm) |
| Illumination | 12V/50W Halogen Lamp |
| Color Filters | Grey, Blue, and Green |
| Diffuser | Ground Glass |
The IM-3000B features precise microstructural analysis tools for laboratory settings Metallographic Microscopes & Imaging - PACE Technologies. Its primary technical specifications are detailed below
- Illumination Technique: Brightfield and Polarized Light Metallographic Microscopes & Imaging - PACE Technologies
- Objectives: Infinite Plan Achromatic (5X to 100X) Metallographic Microscopes | PACE Technologies
- Eyepiece: Wide Field WF10X (Field no. 22 mm) Metallographic Microscopes | PACE Technologies
- Head: 45-degree inclined trinocular head for comfortable viewing and digital imaging Metallographic Microscopes | PACE Technologies
- Illumination Source: 12V / 50W halogen lamp with color filters Metallographic Microscopes | PACE Technologies
- Power Requirements: 110V / 220V (Single Phase), 50/60 Hz IM-3000B Instruction Manual
