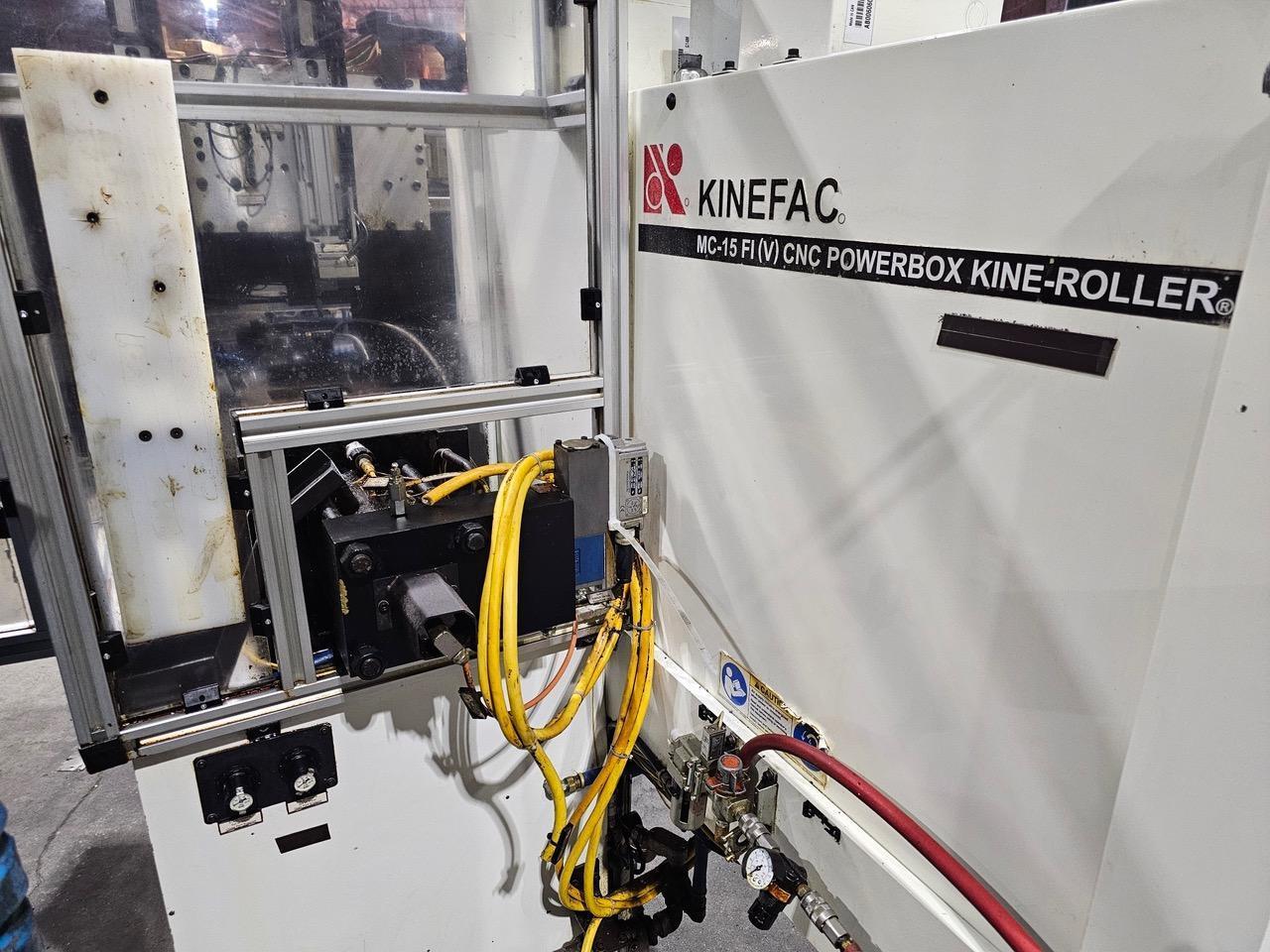

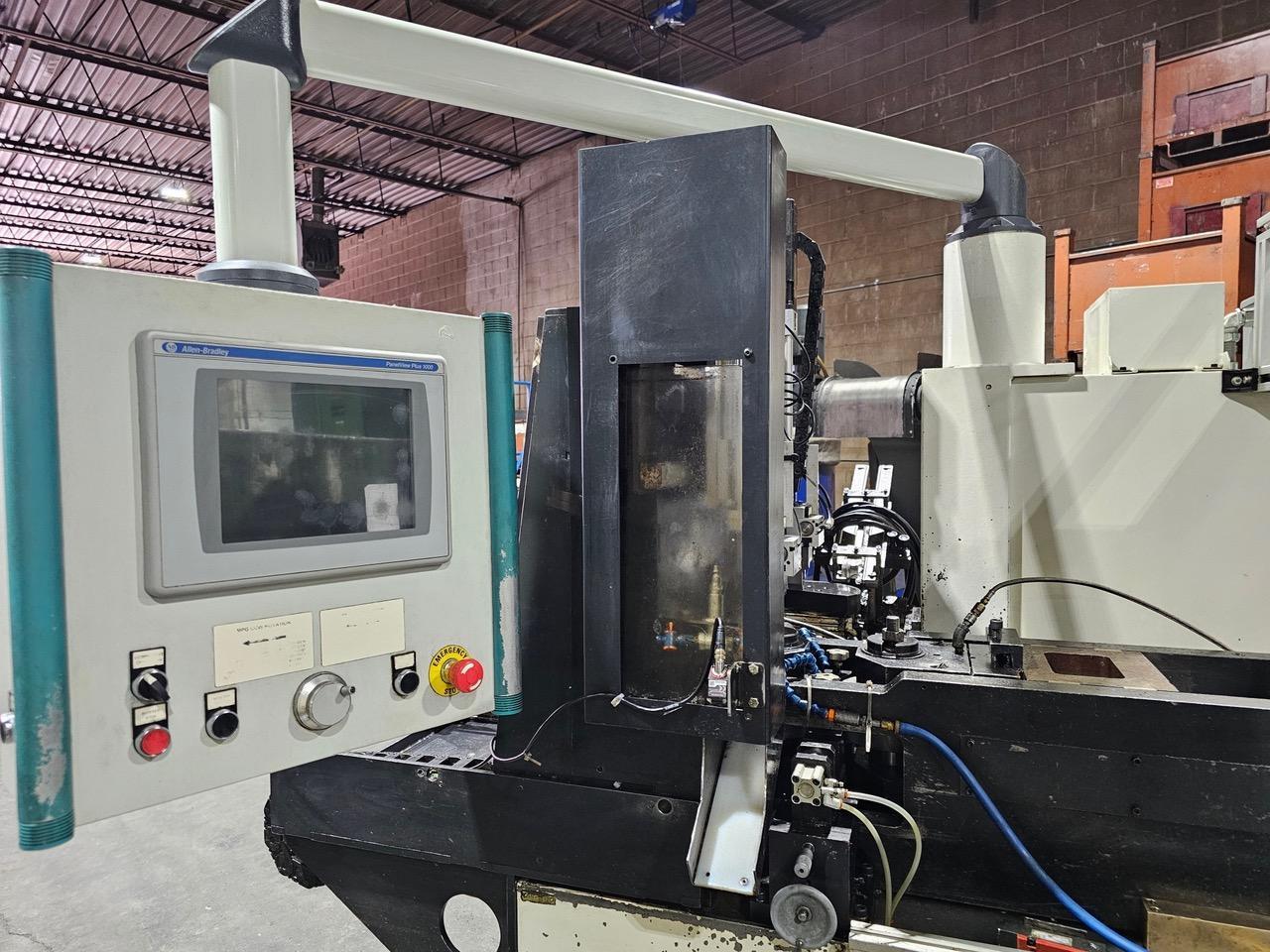

Kinefac Model MC-15V Two Die Thread Rolling Machine

Brand
KINEFAC

Model
MC-15V

Type
Threading Machines, Thread Rollers, Cylindrical Die

Stock #
13922

Condition
Used

Year
2014

Request a Quote

Specifications

Maximum Infeed Work Diameter	25.4
Maximum Thrufeed Work Diameter	88.9
Standard Spindle Diameter	54mm

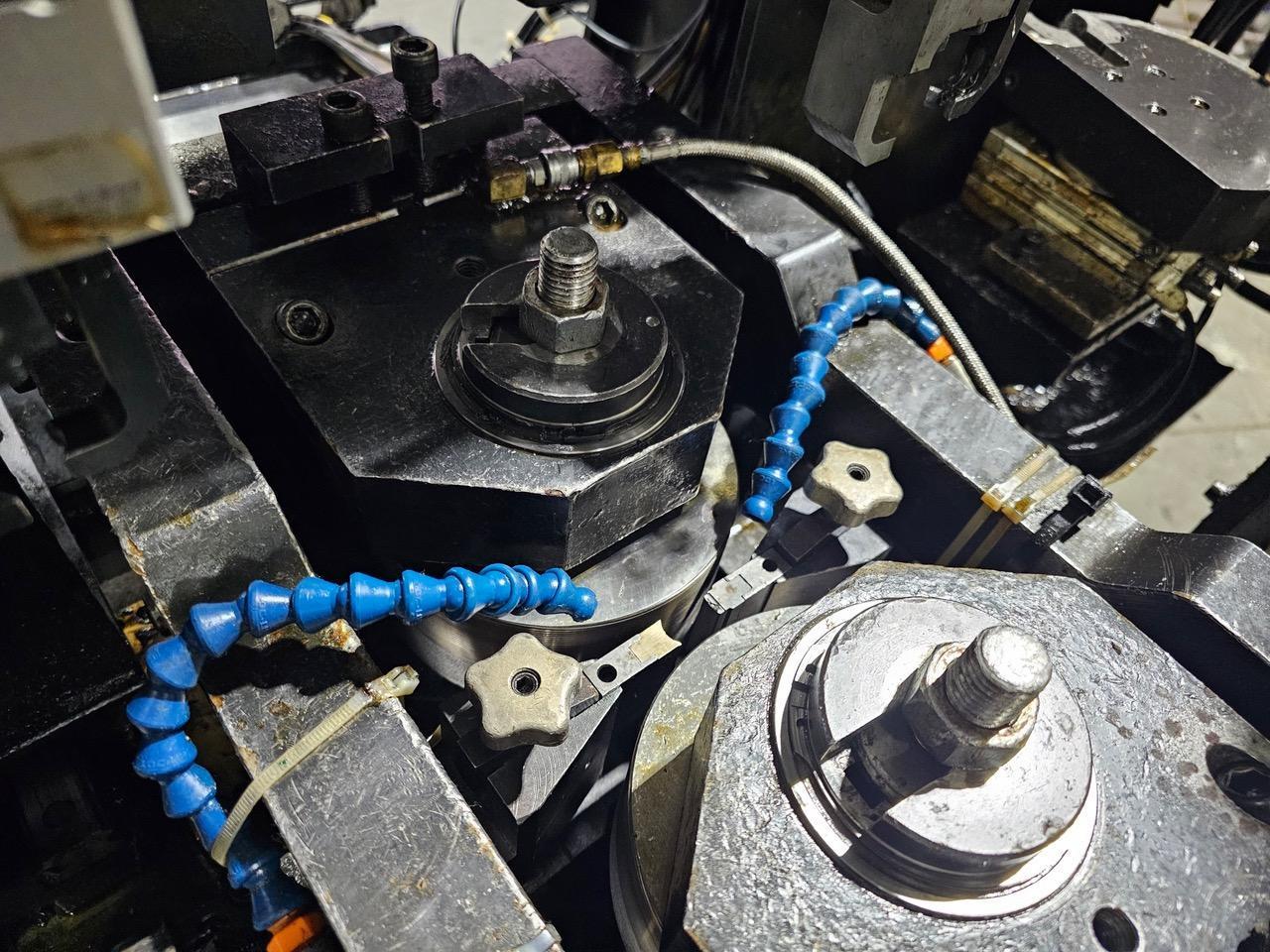

Die Diameter Range	101.6-177.8mm
Maximum Die Width	114.3mm

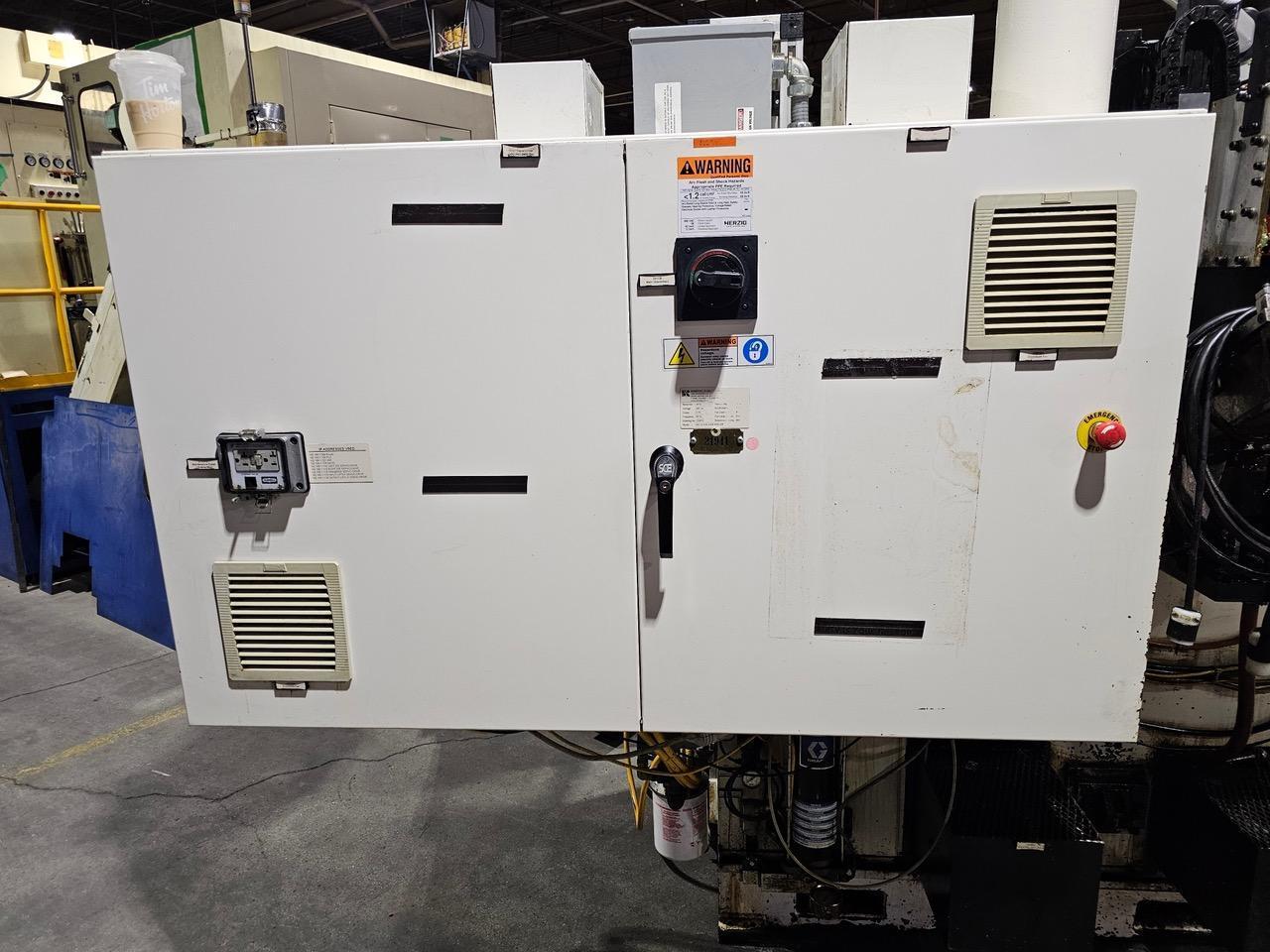

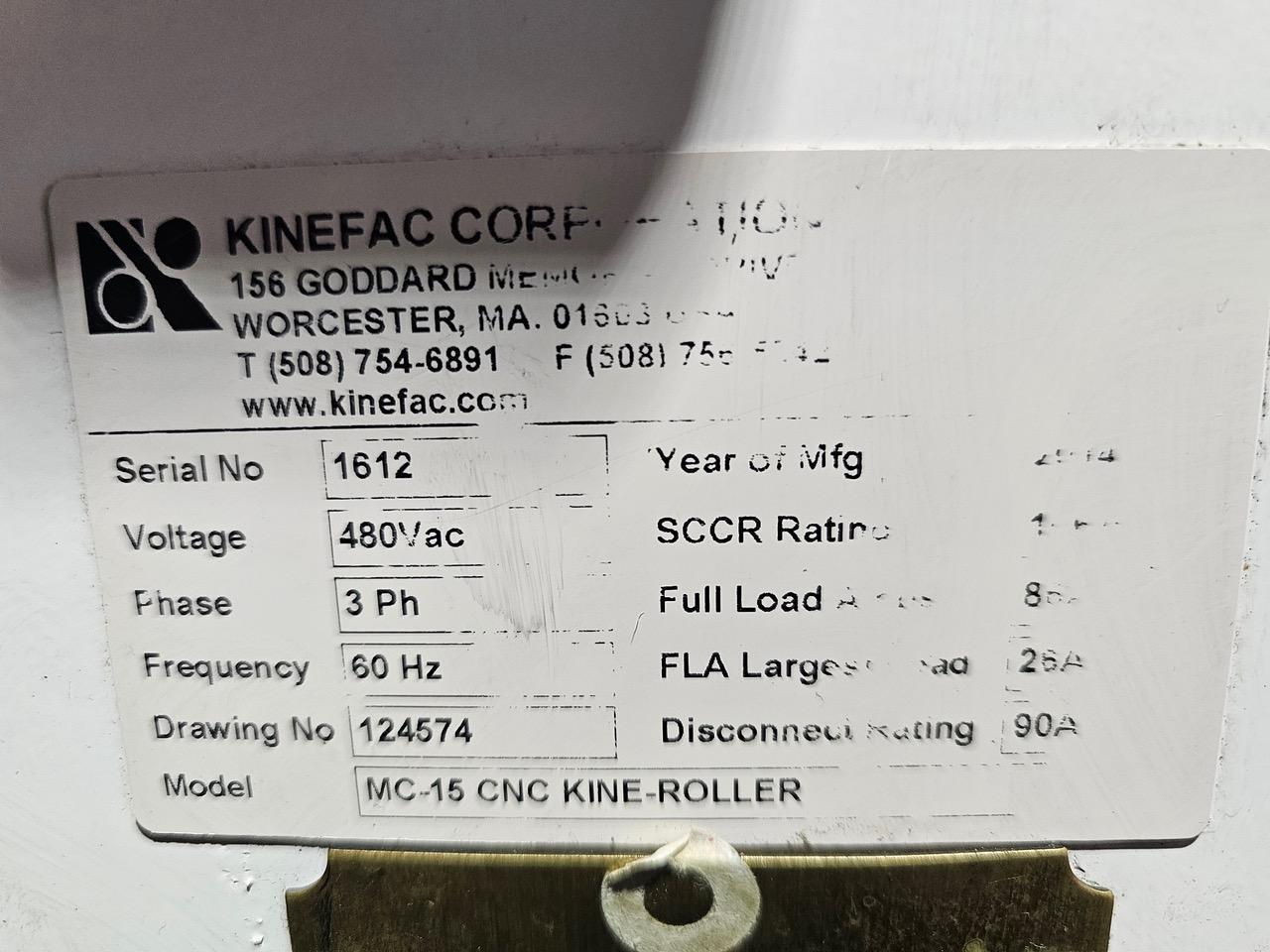

Electrics	480 V 3 Phase 60 Hz
Center Distance Range	127-234.9mm
Horizontal Skew Angle	+/-8 Degree
Maximum Rolling Force	222 kN
Die Speed Range (RPM)	1-150

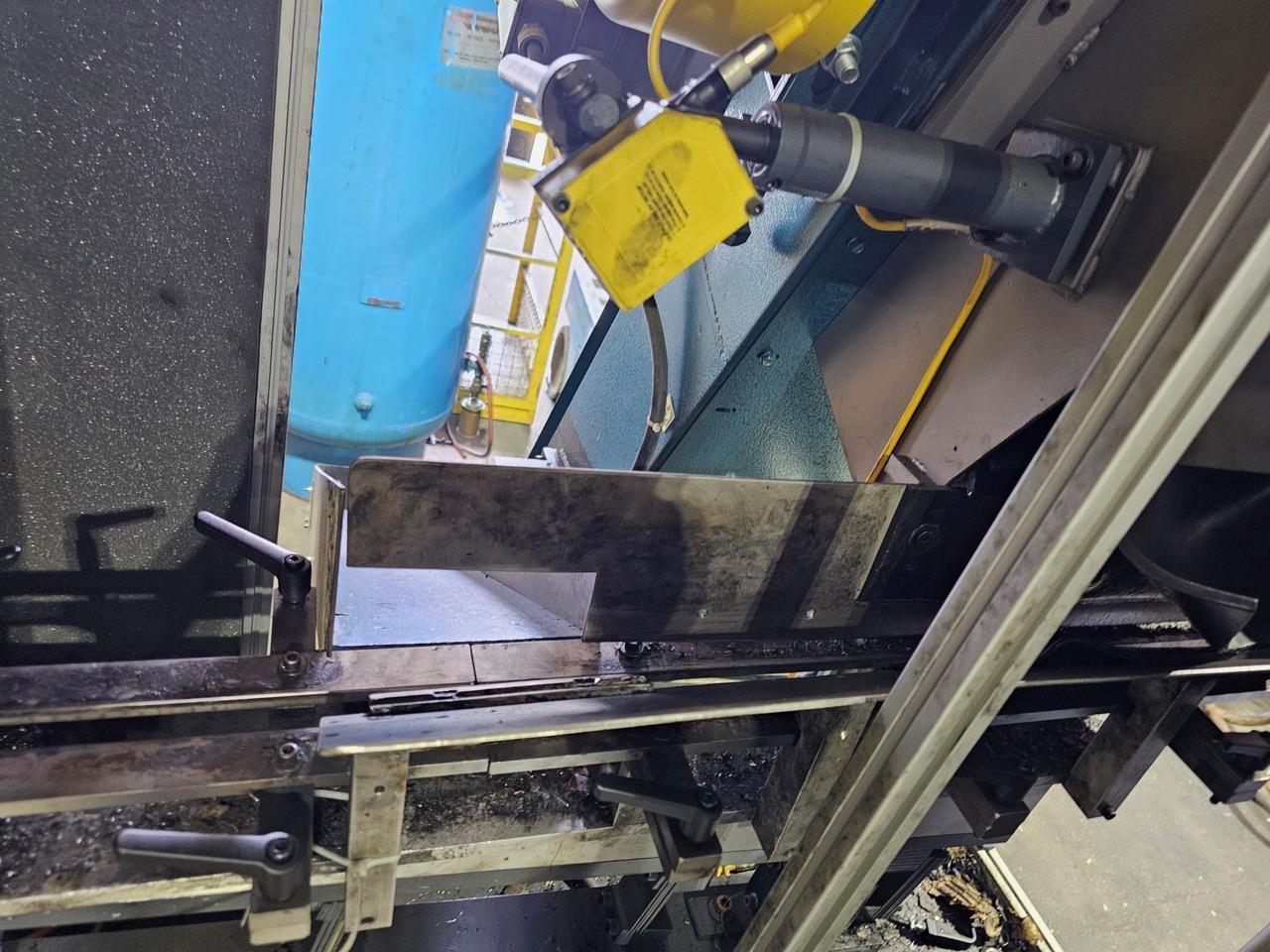

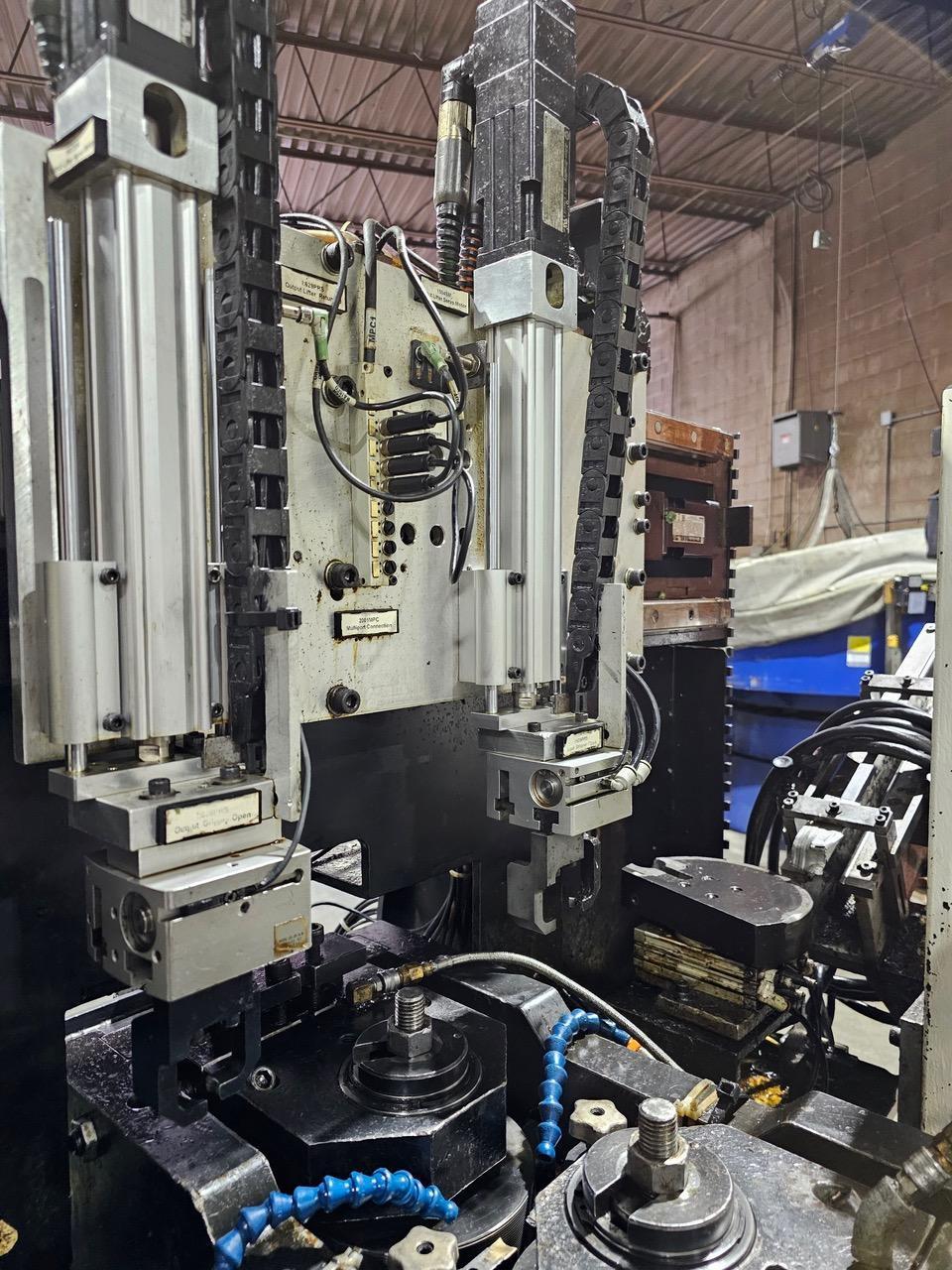

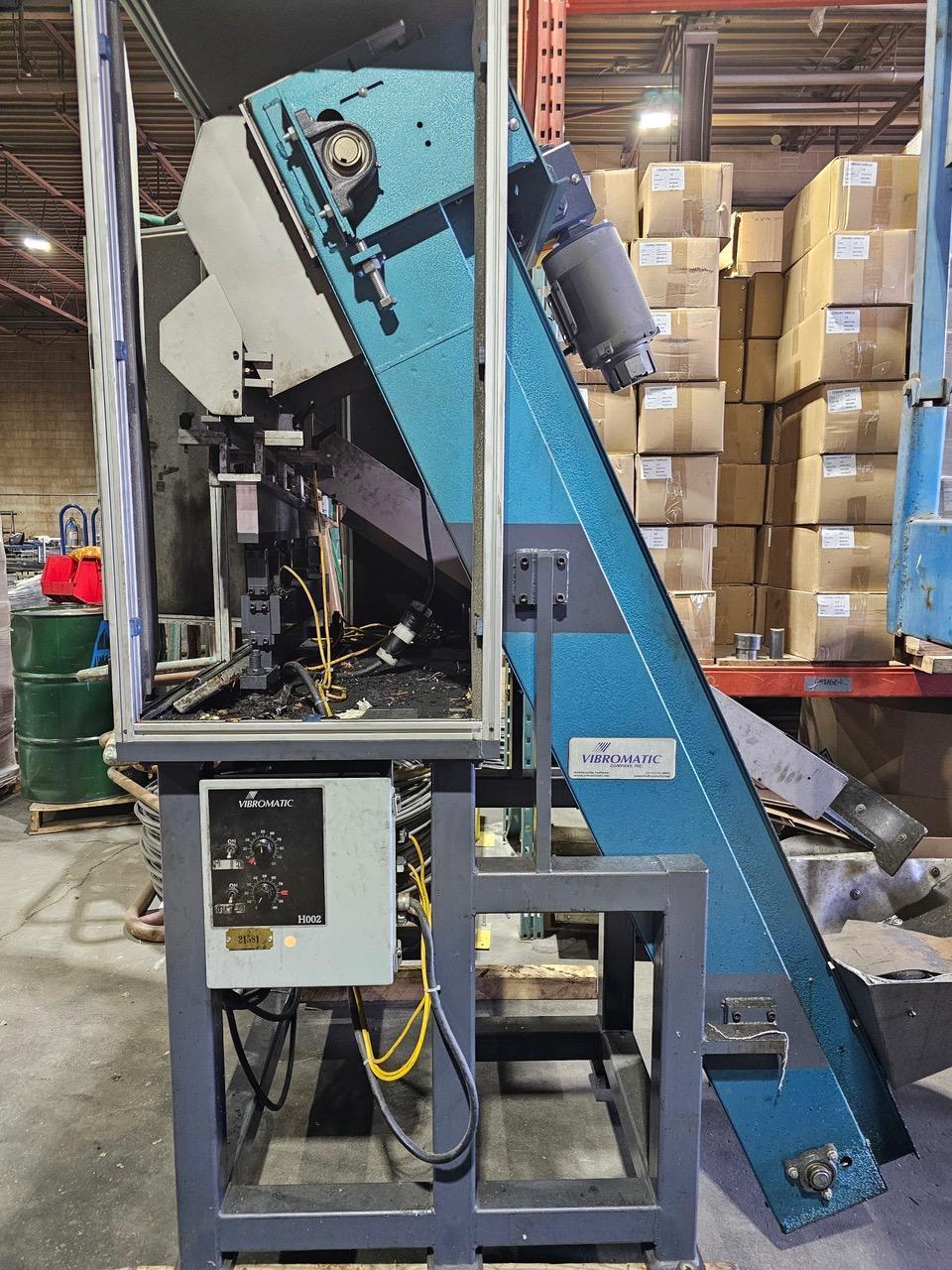

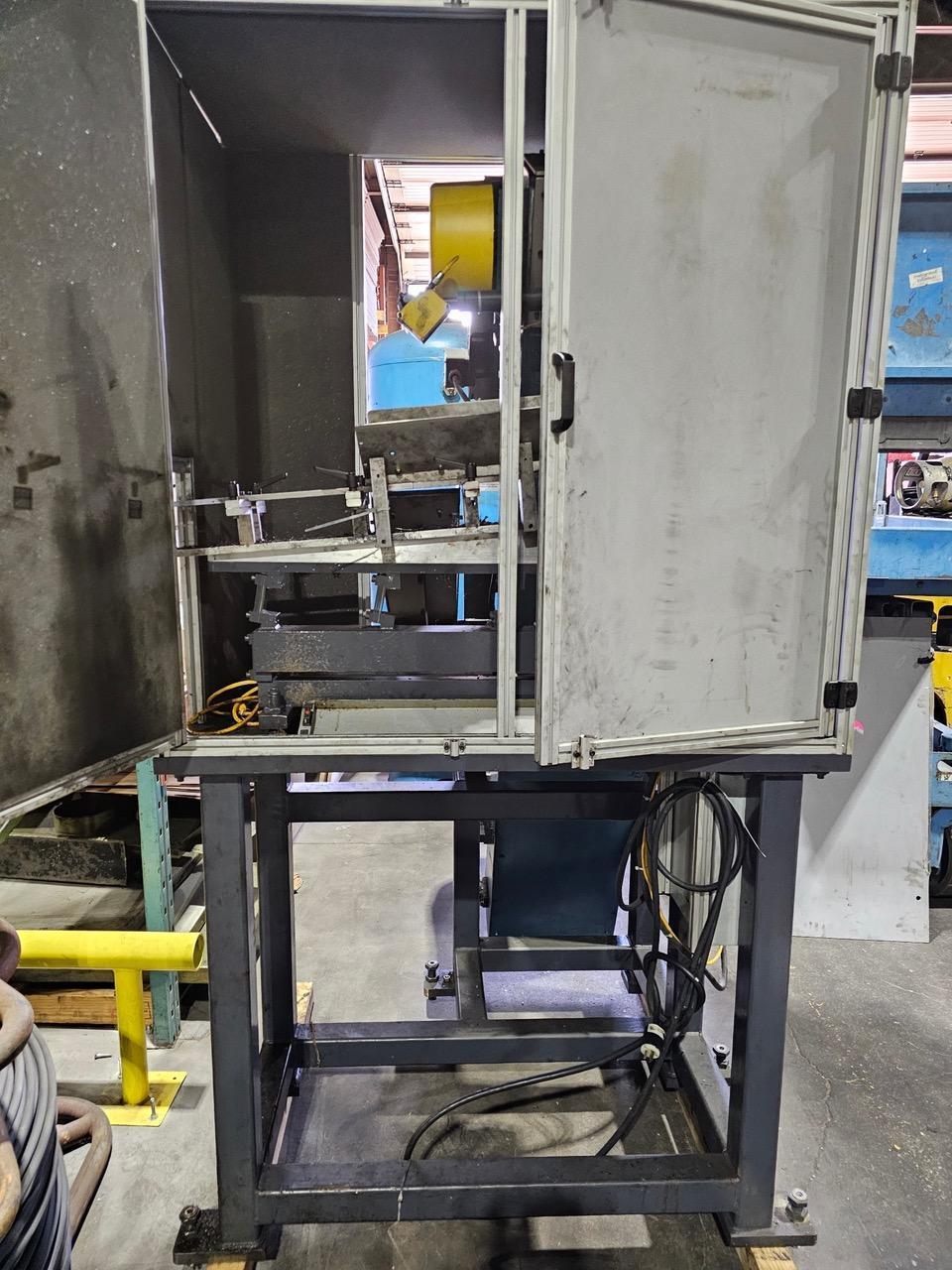

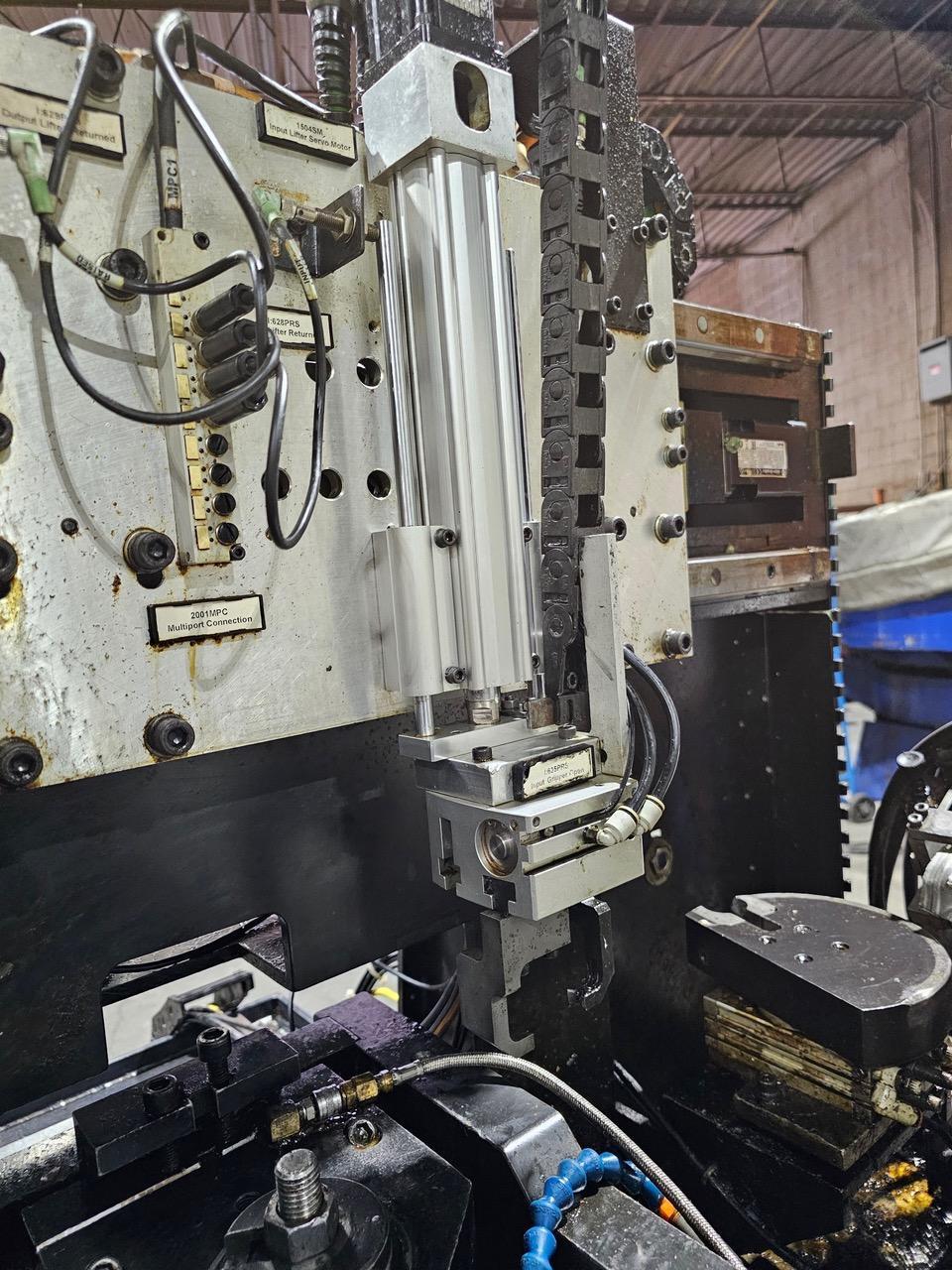

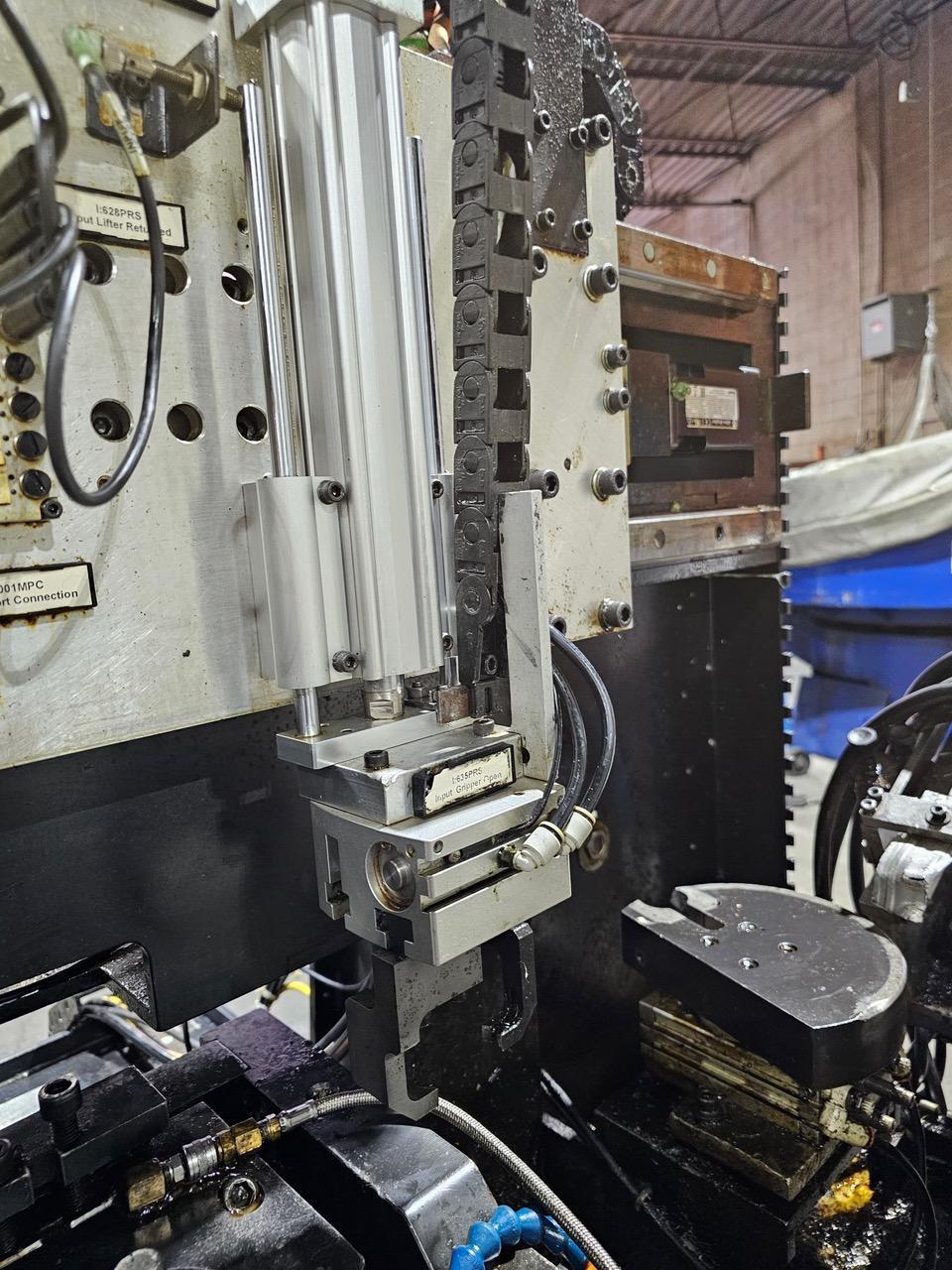

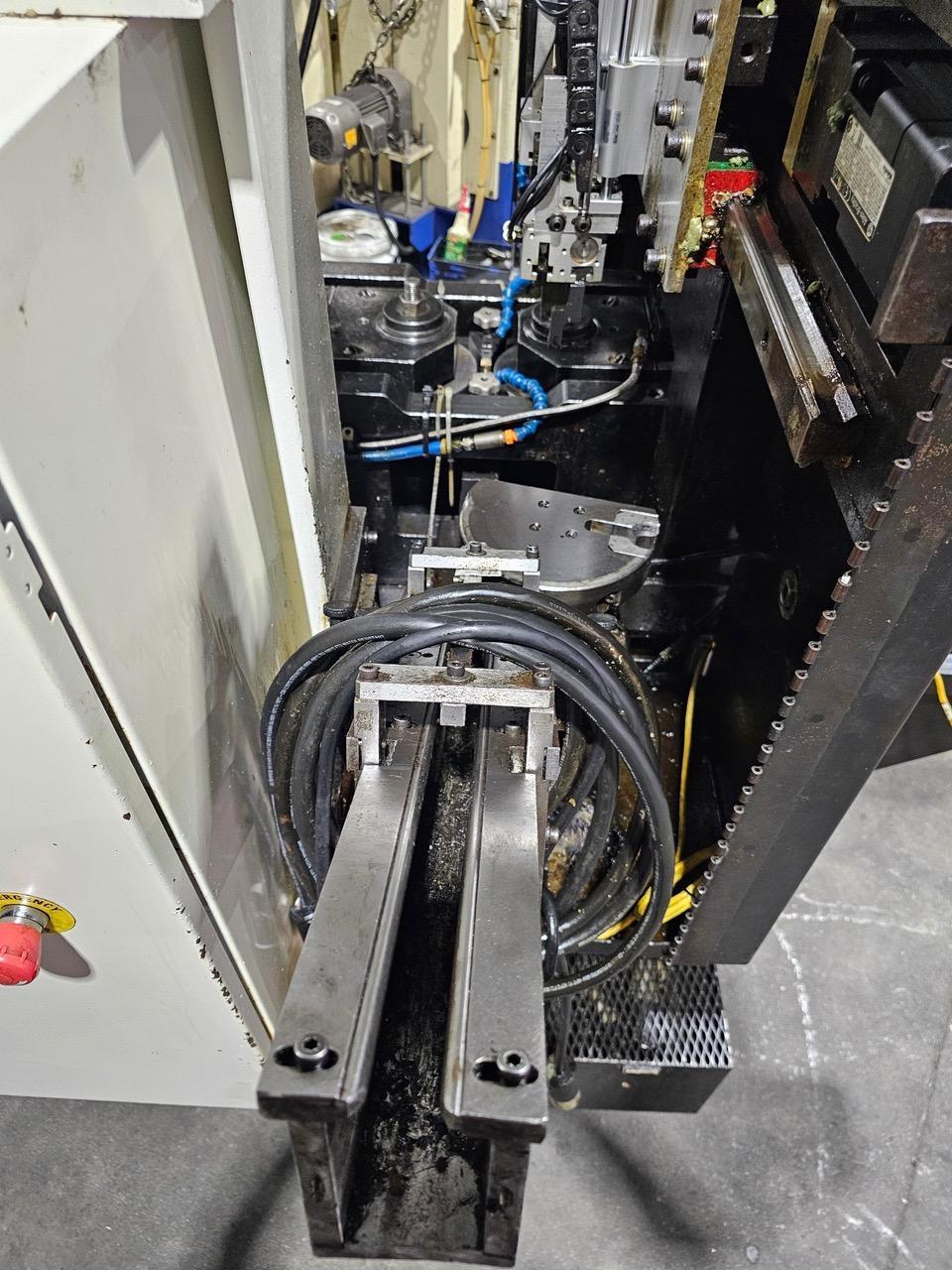

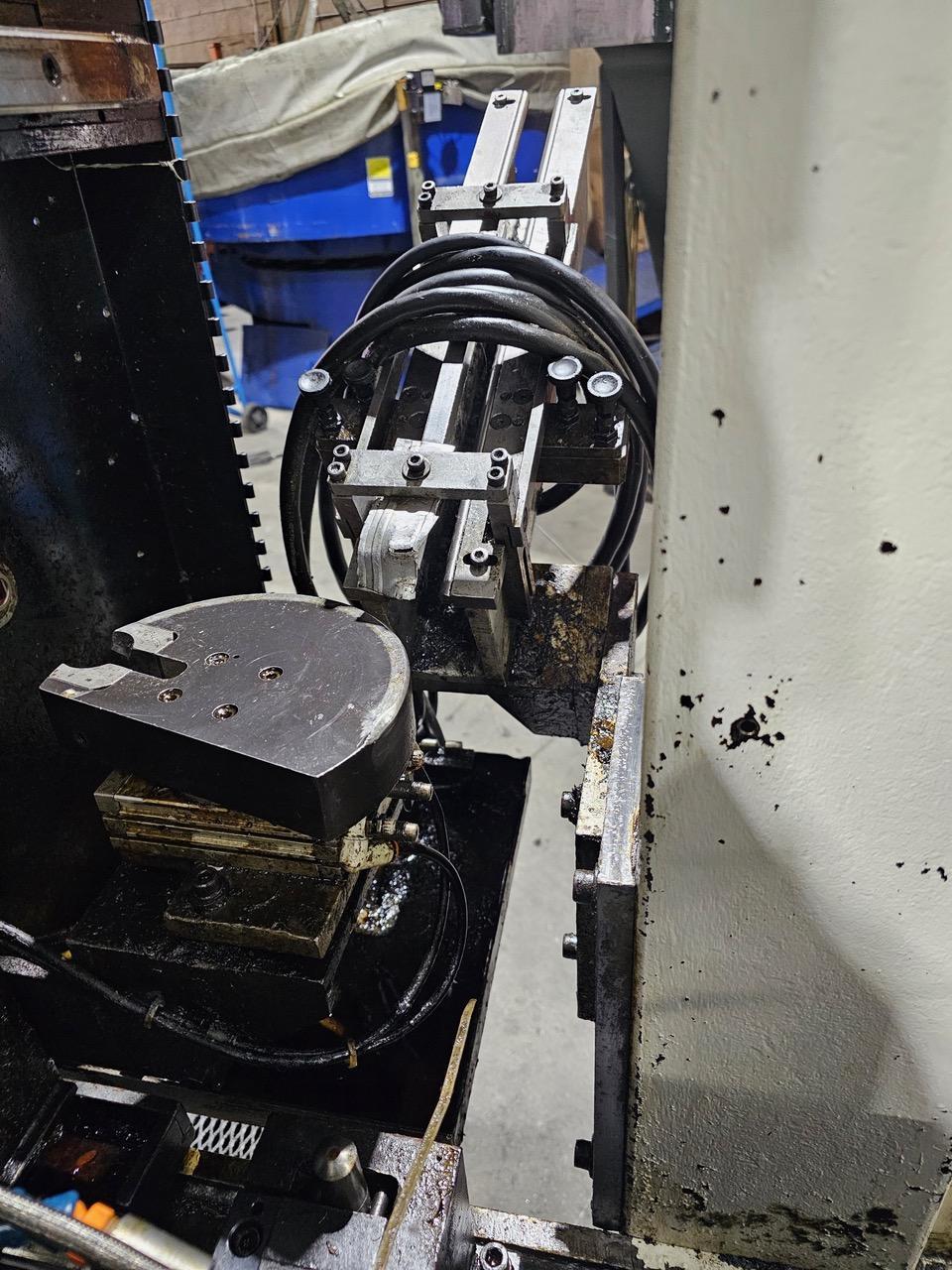

Automatic loader with pick and place units to place parts into the dies.

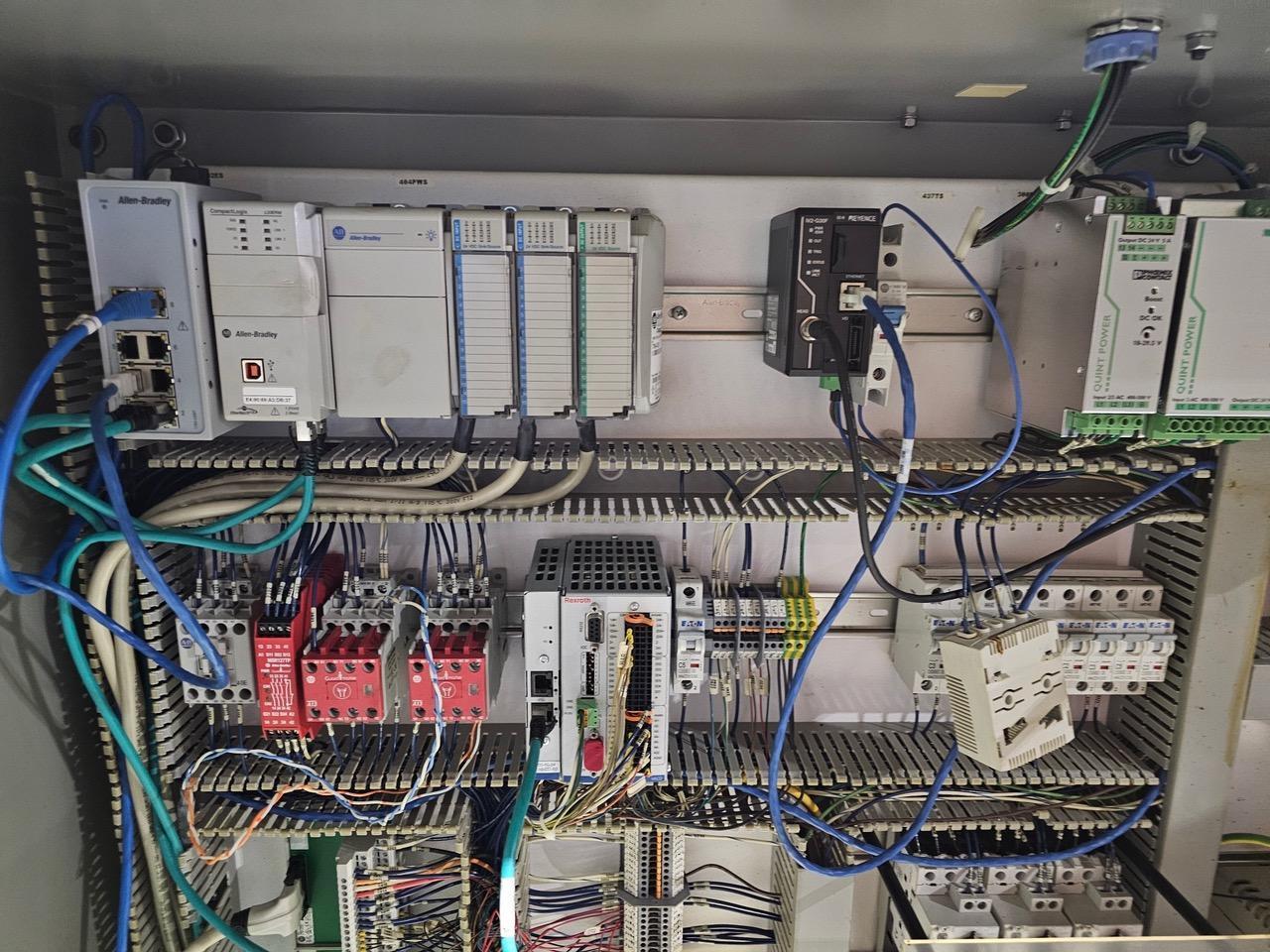

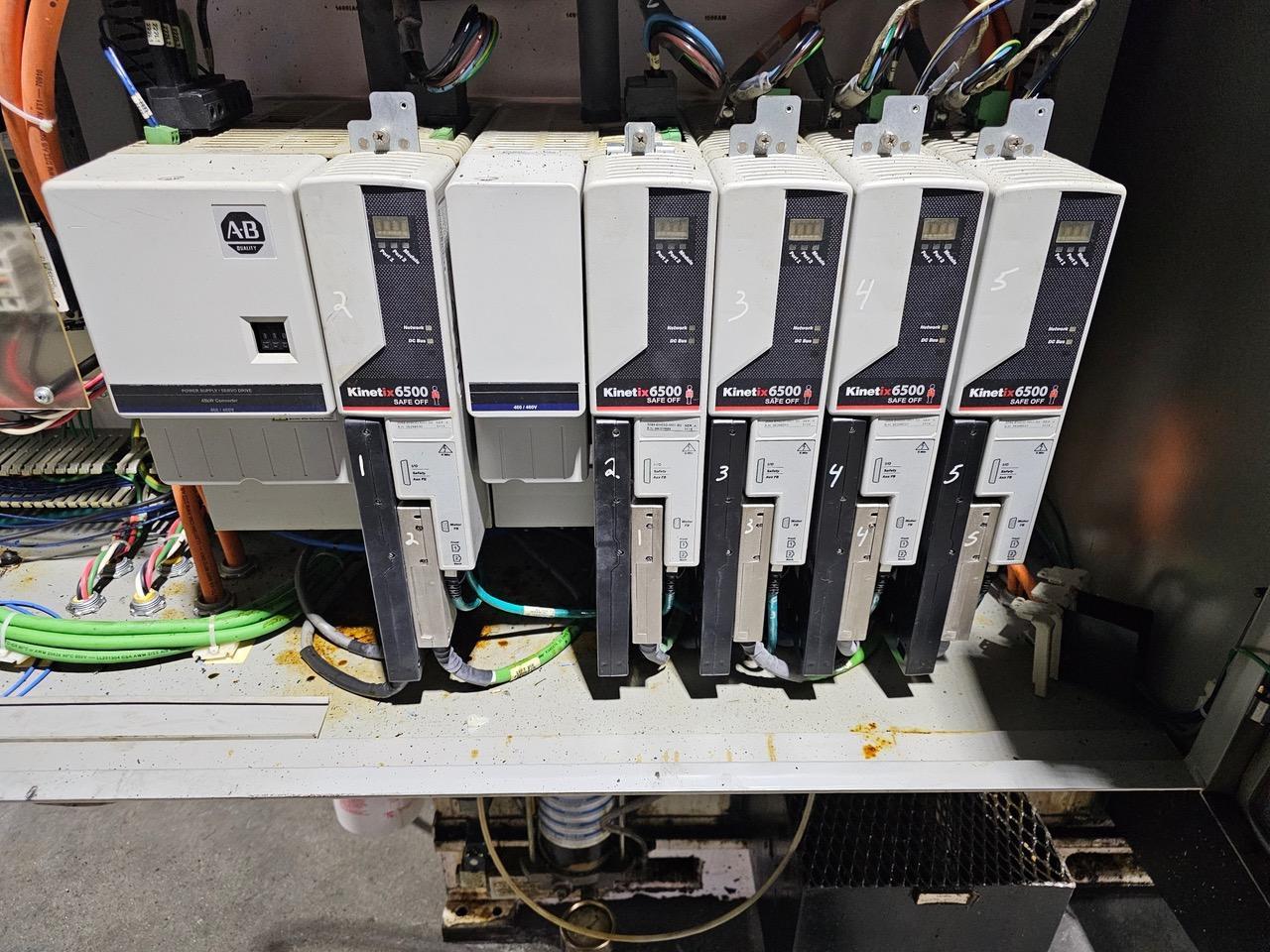

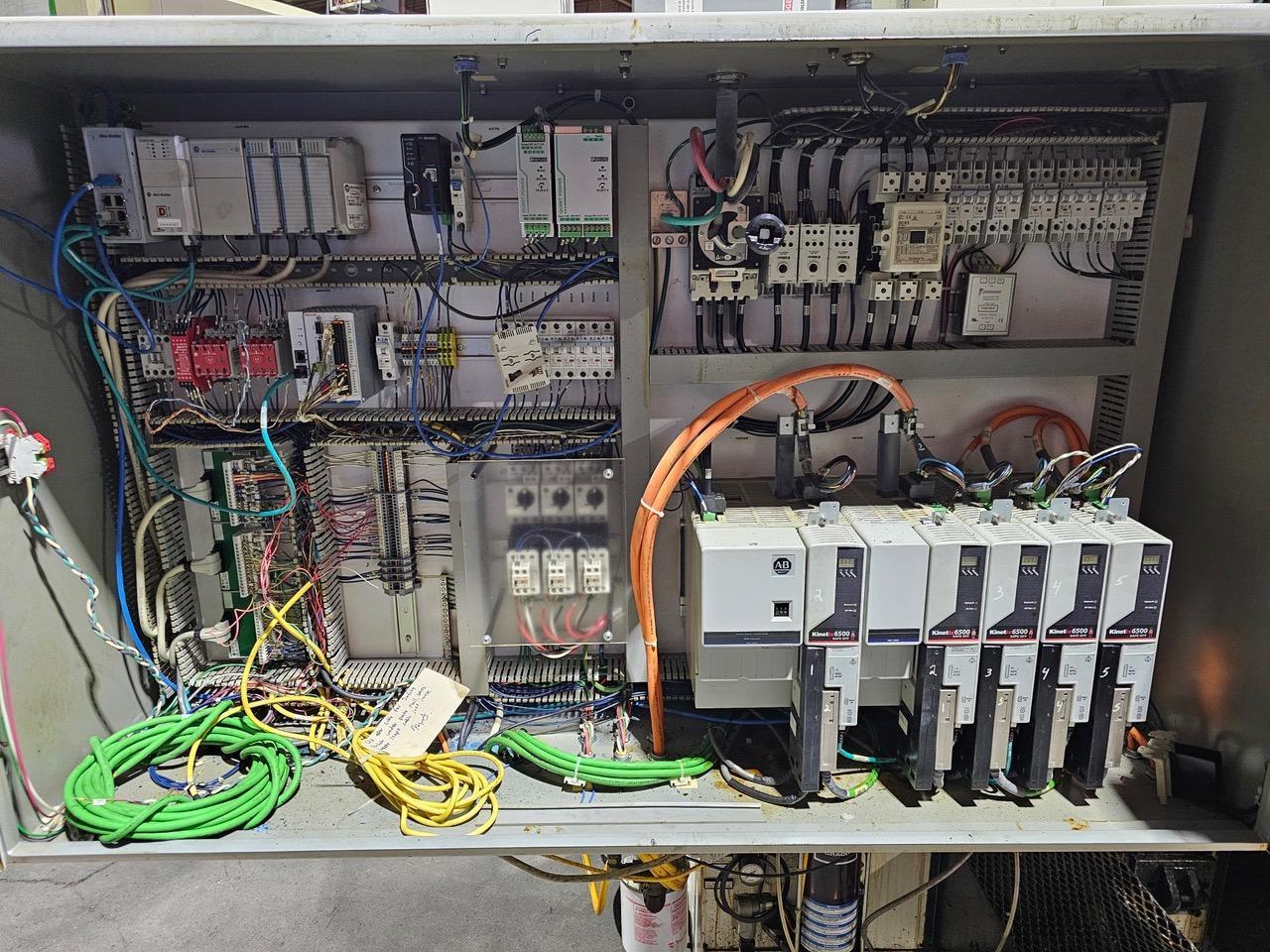

Complete CNC controls with servo drives for the spindles.
